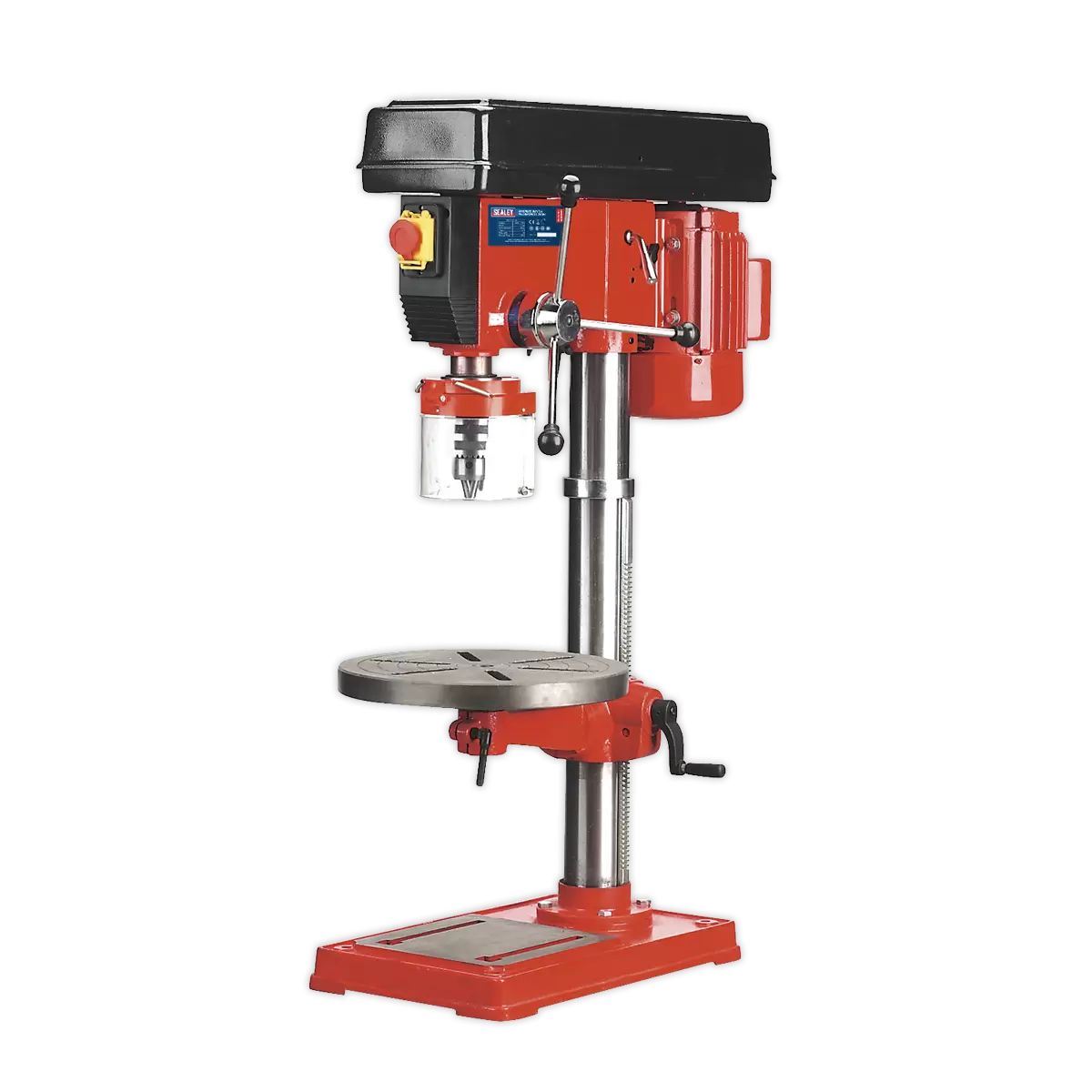

Sealey GDM180B Pillar Drill Bench 16-Speed 1085mm Height 750W/230V
Sealey GDM180B Pillar Drill Bench 16-Speed 1085mm Height 750W/230V
Sealey GDM180B Pillar Drill Bench 16-Speed 1085mm Height 750W/230V
Sealey GDM180B Pillar Drill Bench 16-Speed 1085mm Height 750W/230V

Sealey GDM180B Pillar Drill Bench 16-Speed 1085mm Height 750W/230V

Regular price
£506.00
£421.66 Ex.VAT
£506.00 £421.66 Ex.VAT
Translation missing: en.products.product.price.unit_price_label
per
Delivery in 2-3 working days

Delivery in 2-3 working days

  • Suit light industrial, agricultural and woodworking applications
  • Height: 1085mm
  • Spindle Centre to Column: 216mm
  • Motor Power: 550W, Input Power: 750W
- +

Sealey GDM180B Pillar Drill Bench 16-Speed 1085mm Height 750W/230V

Features:

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
Model No. GDM50B and up have Morse taper spindle housings for taking taper shank drill bits.
All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
Mortise attachments are available for all Model No's GDM120B - GDM200F inclusive.
20mm(3/4") Capacity chuck No. MT3.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

Part No: GDM180B
Barcode: 5024209365673
Base Size: 520 x 320mm
Collar Diameter: 75mm
Column Diameter: 80mm
Drilling Capacity (Chuck Size): 20mm
Maximum Distance Spindle to Base: 685mm
Maximum Distance Spindle to Table: 495mm
Motor Power (Start): 550W(750W)
Nett Weight: 70kg
Number of Speeds: 16
Overall Height: 1085mm
Speed Range: 120-3000rpm
Spindle Centre to Column: 216mm
Spindle Nose Taper: MT3
Spindle Travel: 80mm
Supply: 230V
Swing: 432mm
Working Base Surface Size: 240 x 280mm
Working Table Surface Size: Ø355mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
