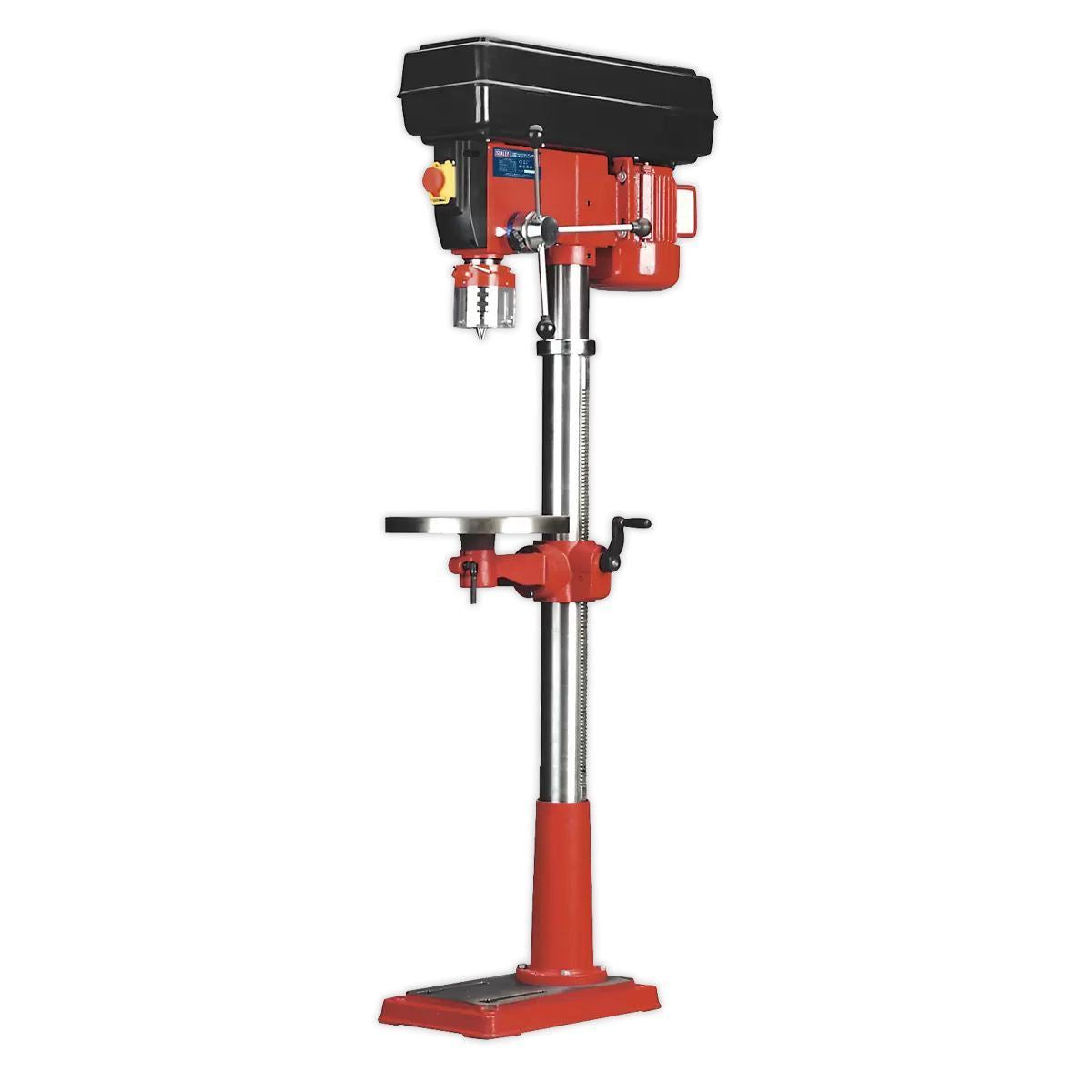

Sealey GDM200F/VS Pillar Drill Floor Variable Speed 1630mm Height 650W/230V

Sealey GDM200F/VS Pillar Drill Floor Variable Speed 1630mm Height 650W/230V

Features:

Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance.

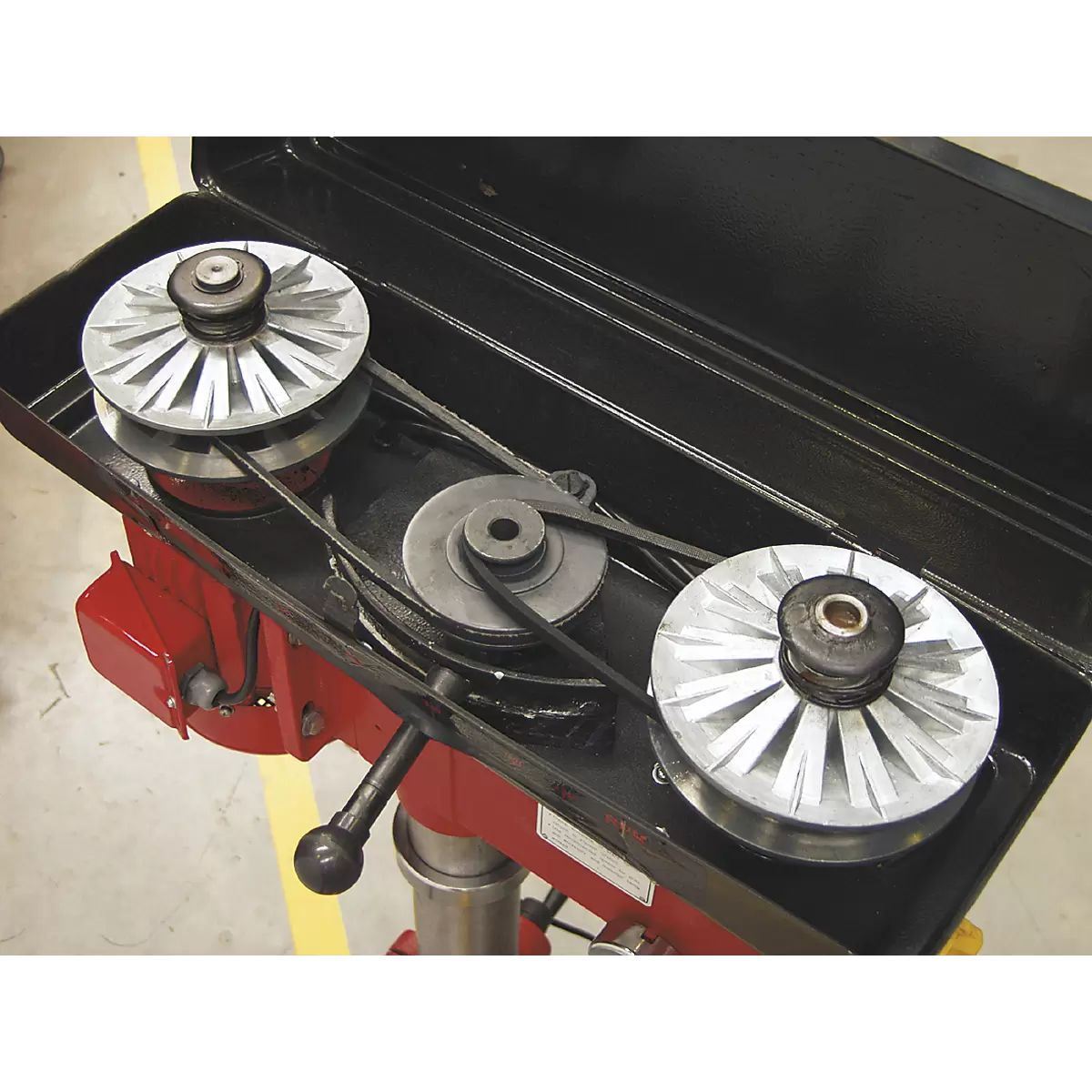

The belt transmission uses two spring tensioned cone pulleys, the diameter of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever.
Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
Supplied with chuck guard.
Mortise attachment available, order Model No. MA10.
16mm(5/8") Capacity chuck No. 2MT.
Height: 1630mm.
Spindle Centre to Column: 178mm.
Column Diameter: 80mm.
Spindle Travel: 80mm.
Weight: 71kg.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

Part No: GDM200F/VS
Barcode: 5024209548397
Base Size: 460 x 275mm
Collar Diameter: Ø60mm
Column Diameter: Ø80mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 1170mm
Maximum Distance Spindle to Table: 730mm
Motor Power (Start): 450W(650W)
Nett Weight: 71kg
Number of Speeds: Variable
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 1630mm
Speed Range: 150-2300rpm
Spindle Centre to Column: 178mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 356mm
Working Base Surface Size: 200 x 220mm
Working Table Surface Size: Ø310mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
