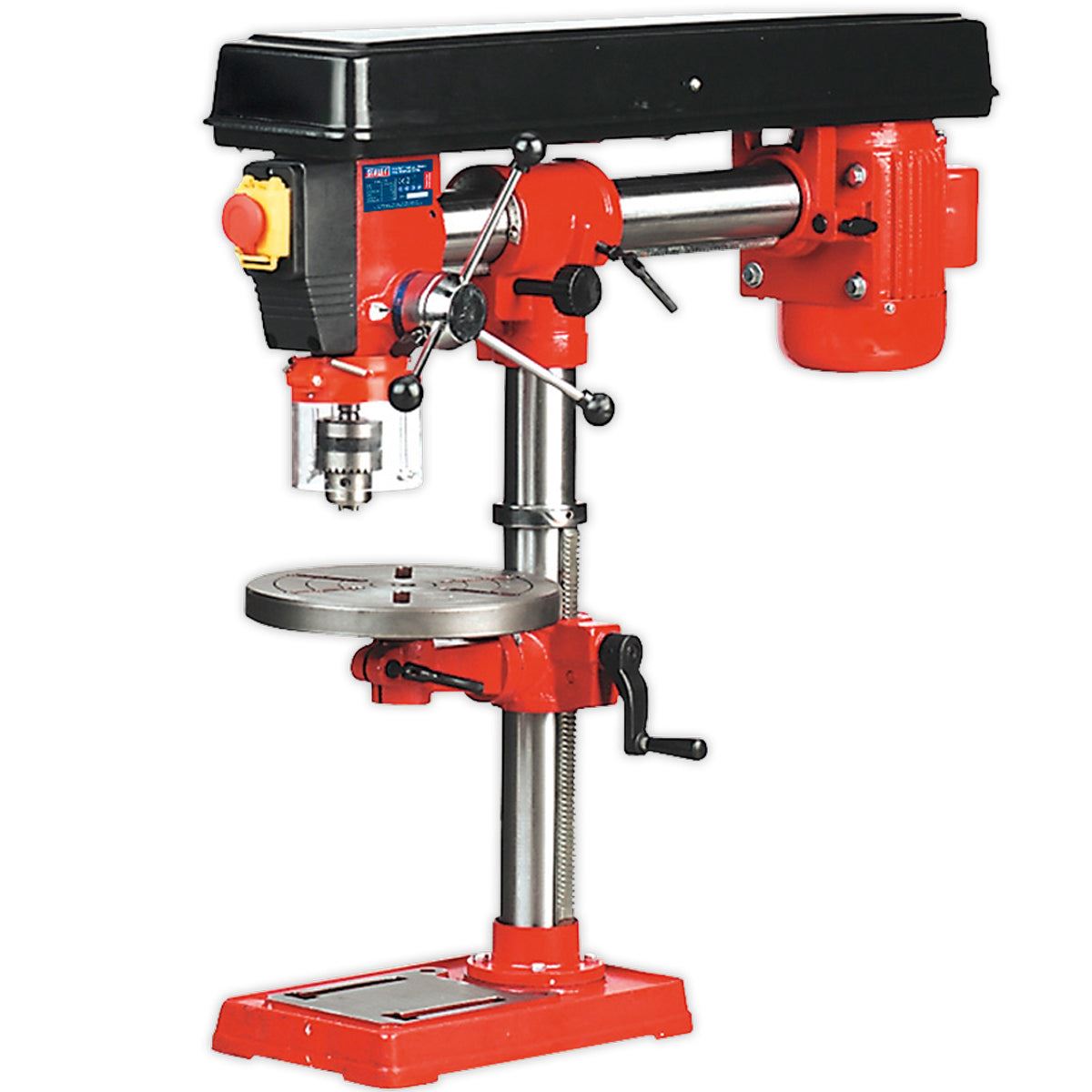

Sealey GDM790BR 5-Speed Radial Pillar Drill Bench 230V/550W
- Regular price
-
£370.50
£308.75 Ex.VAT -
-
£370.50 £308.75 Ex.VAT
- Translation missing: en.products.product.price.unit_price_label
- per
Delivery in 2-3 working days
Sealey GDM790BR 5-Speed Radial Pillar Drill Bench 230V/550W
Features:
Heavy-duty construction.
Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

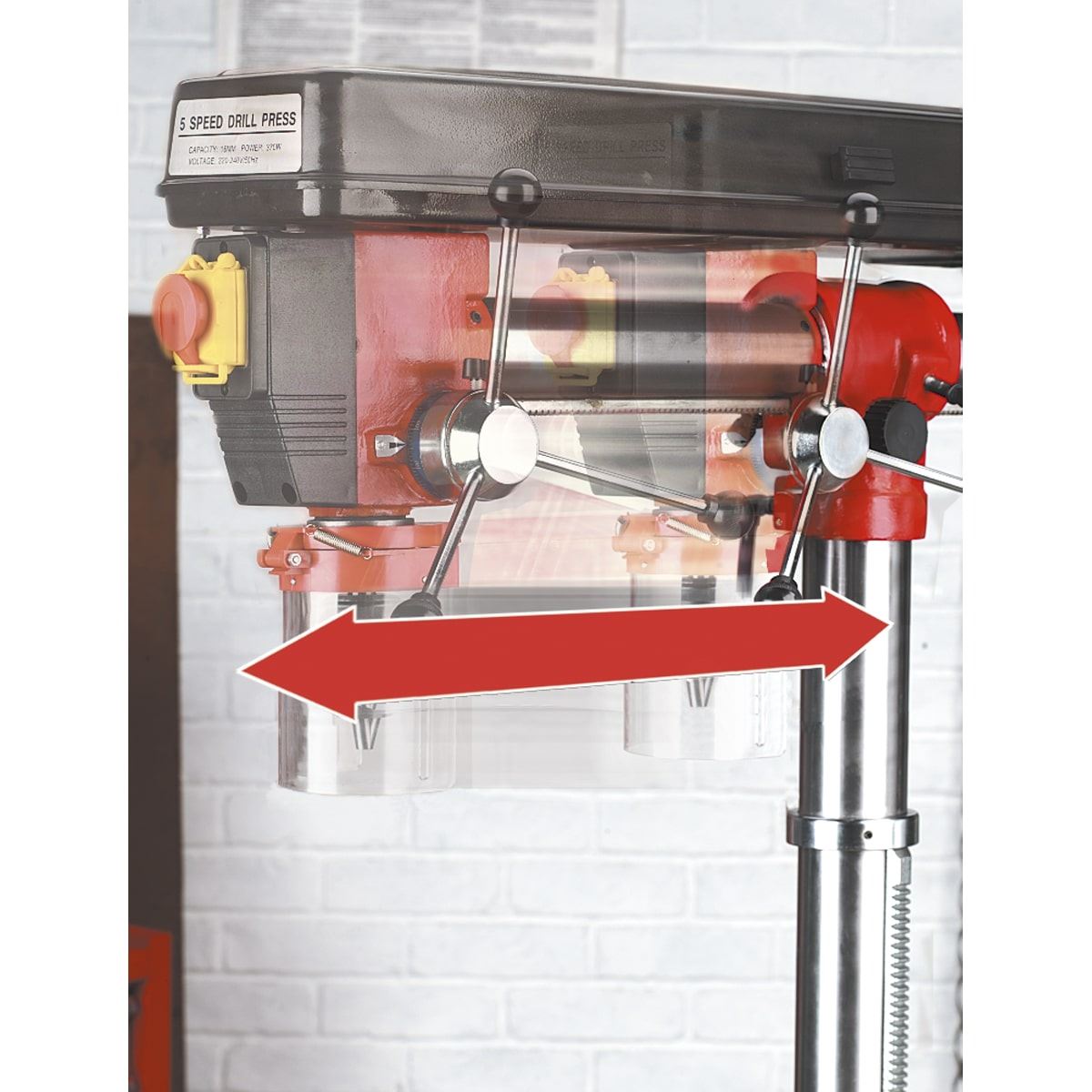

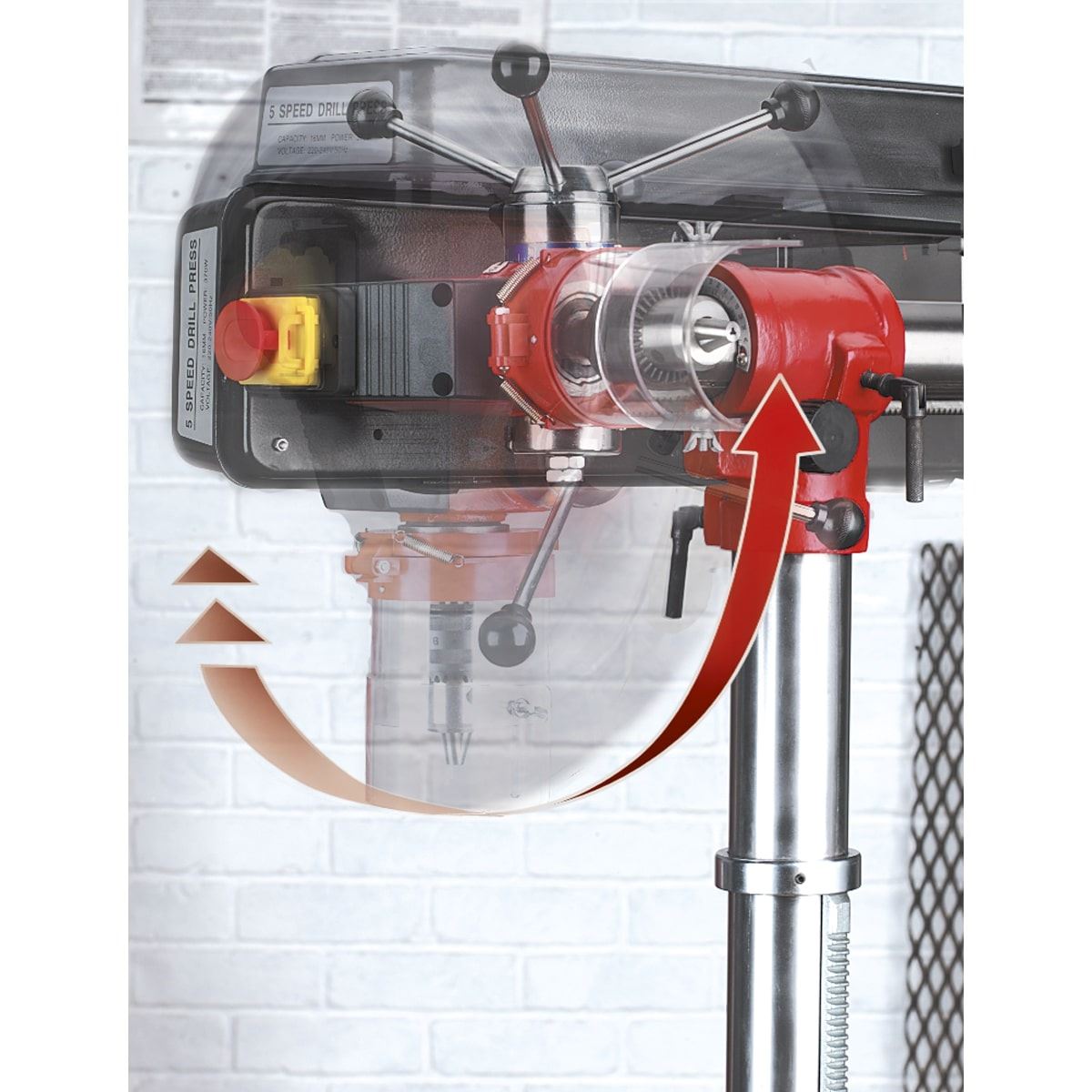

Radial feature allows off-table drilling and angle drilling.
Features a maximum throat depth of 420mm.
Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
Also available as floor standing type - GDM1630FR.
Mortise attachment available, order Model No. MA10.
16mm(5/8") Capacity chuck No. 2MT.
Height: 820mm.
Spindle Centre to Column - Max: 420mm.
Motor Power: 550W.
Column Diameter: 60mm.
Spindle Travel: 80mm.
Weight: 43kg.
Specification:
Part no: GDM790BR
Barcode: 5024209116831
Base Size: 345 x 215mm
Brand: Sealey
Collar Diameter: Ø60mm
Column Diameter: Ø60mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 470mm
Maximum Distance Spindle to Table: 300mm
Motor Power: 550W
Nett Weight: 43kg
Number of Speeds: 5
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 820mm
Radial Arm Travel: 285mm
Speed Range: 500-2450rpm
Spindle Centre to Column: 420mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 840mm
Working Base Surface Size: 160 x 180mm
Working Table Surface Size: Ø310mm
Barcode: 5024209116831
Base Size: 345 x 215mm
Brand: Sealey
Collar Diameter: Ø60mm
Column Diameter: Ø60mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 470mm
Maximum Distance Spindle to Table: 300mm
Motor Power: 550W
Nett Weight: 43kg
Number of Speeds: 5
Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height: 820mm
Radial Arm Travel: 285mm
Speed Range: 500-2450rpm
Spindle Centre to Column: 420mm
Spindle Nose Taper: MT2
Spindle Travel: 80mm
Supply: 230V
Swing: 840mm
Working Base Surface Size: 160 x 180mm
Working Table Surface Size: Ø310mm
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
