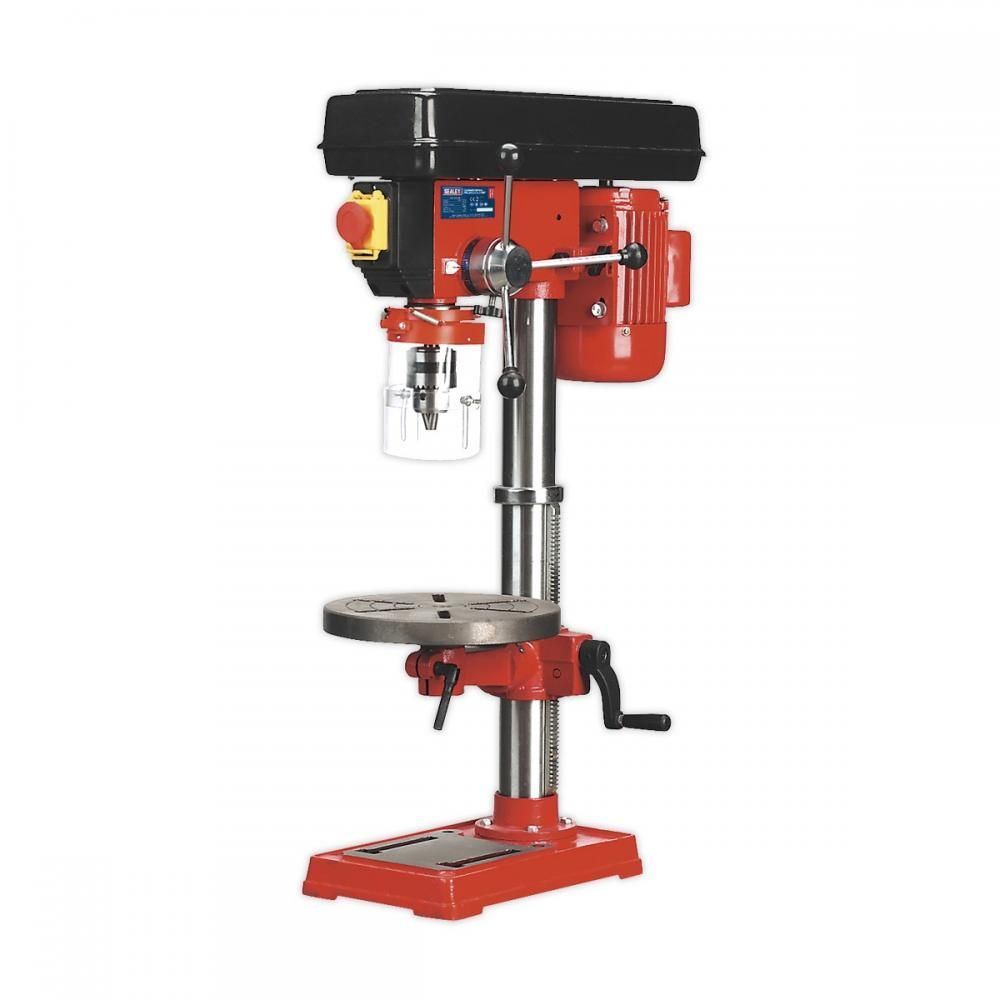

Sealey GDM92B Pillar Drill Bench 12-Speed 370W/230V

Sealey GDM92B Pillar Drill Bench 12-Speed 370W/230V

The Sealey GDM92B Pillar Drill Bench 12-Speed is one of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work.

Features:

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications
Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments
GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits
All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection
All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work
Mortise attachments are available for all Model No's GDM120B - GDM200F inclusive

Product Specification:

Model No: GDM92B
Barcode: 5024209088800
Base Size: 345 x 215mm
Brand: Sealey
Collar Diameter: Ø60mm
Column Diameter: Ø60mm
Drilling Capacity (Chuck Size): 16mm
Maximum Distance Spindle to Base: 540mm
Maximum Distance Spindle to Table: 390mm
Motor Power (Start): 220W(370W)
Nett Weight: 32kg
Number of Speeds: 12
Optional Accessories: GDMX/KC - Keyless Chuck 16mm:
Overall Height: 840mm
Speed Range: 210-2580rpm
Spindle Centre to Column: 127mm
Spindle Nose Taper: MT2
Spindle Travel: 60mm
Supply: 230V
Swing: 254mm
Working Base Surface Size: 160 x 180mm
Working Table Surface Size: Ø248mm
