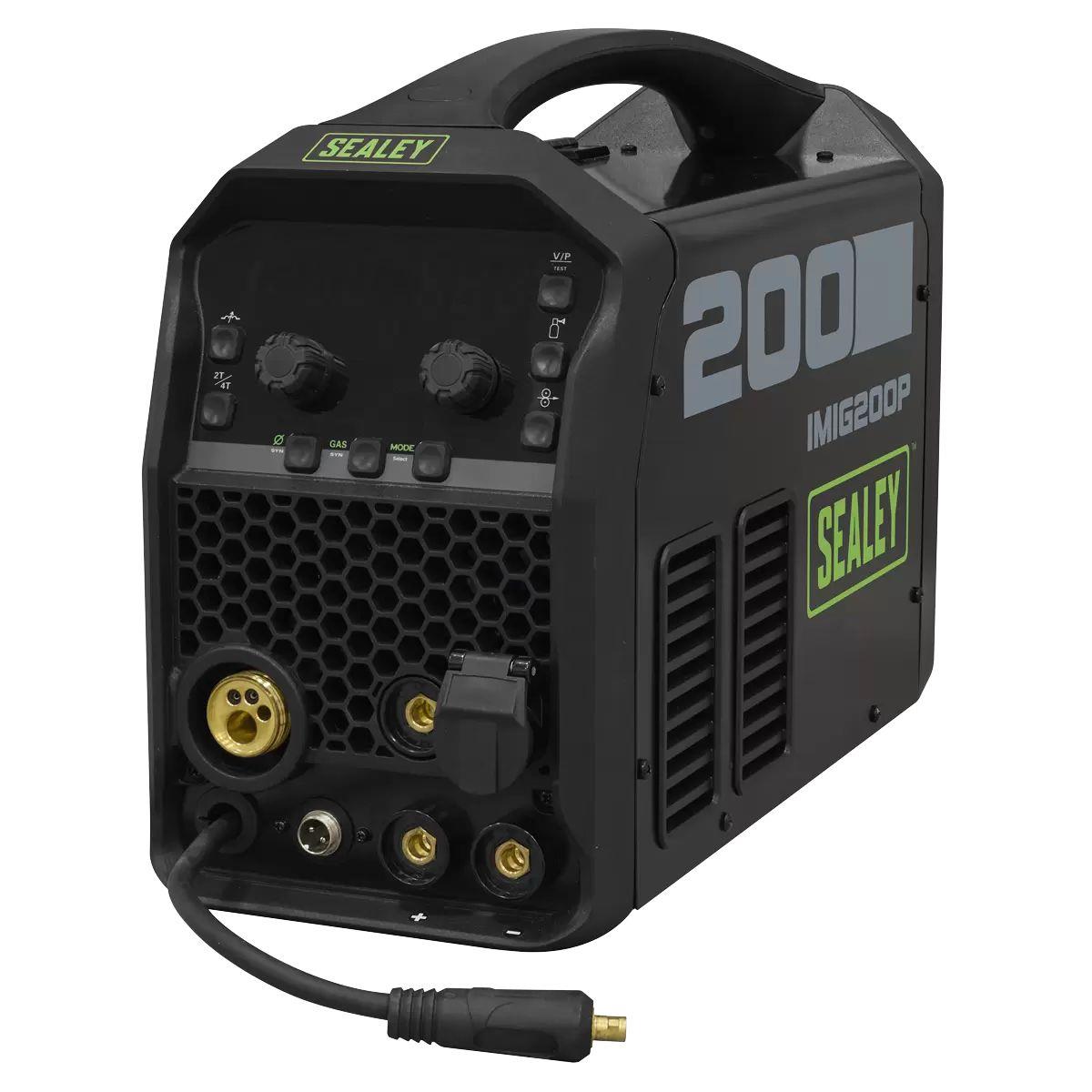

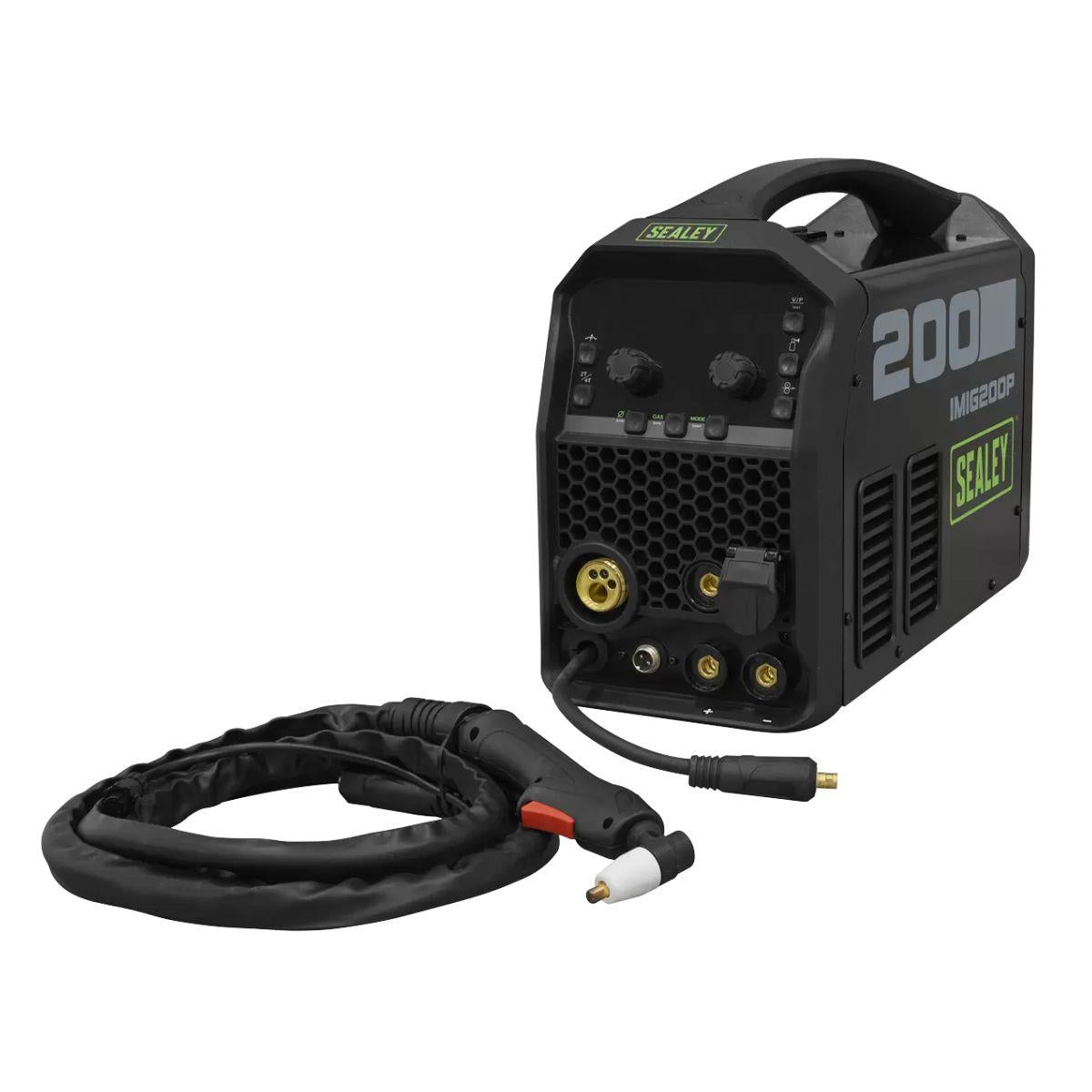

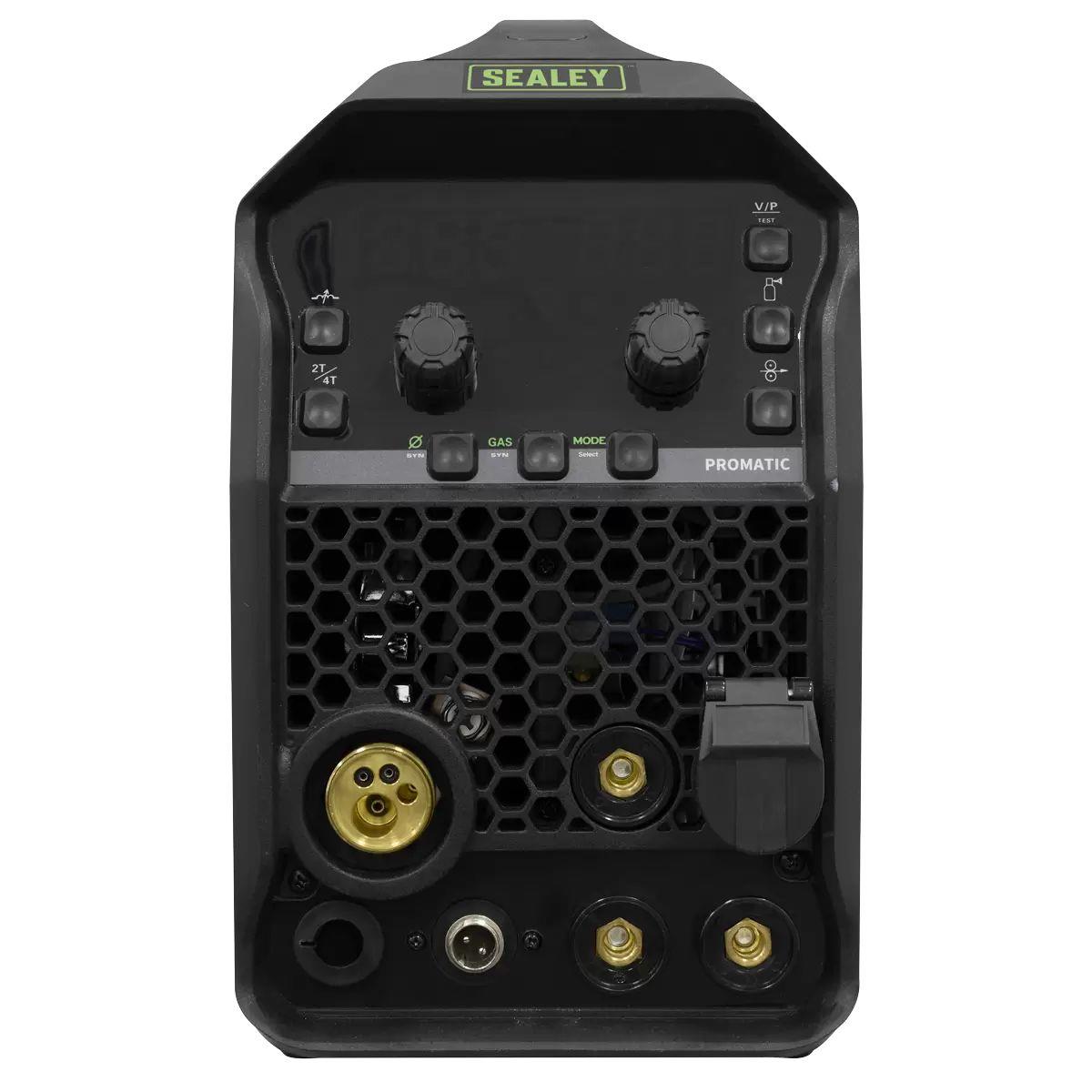

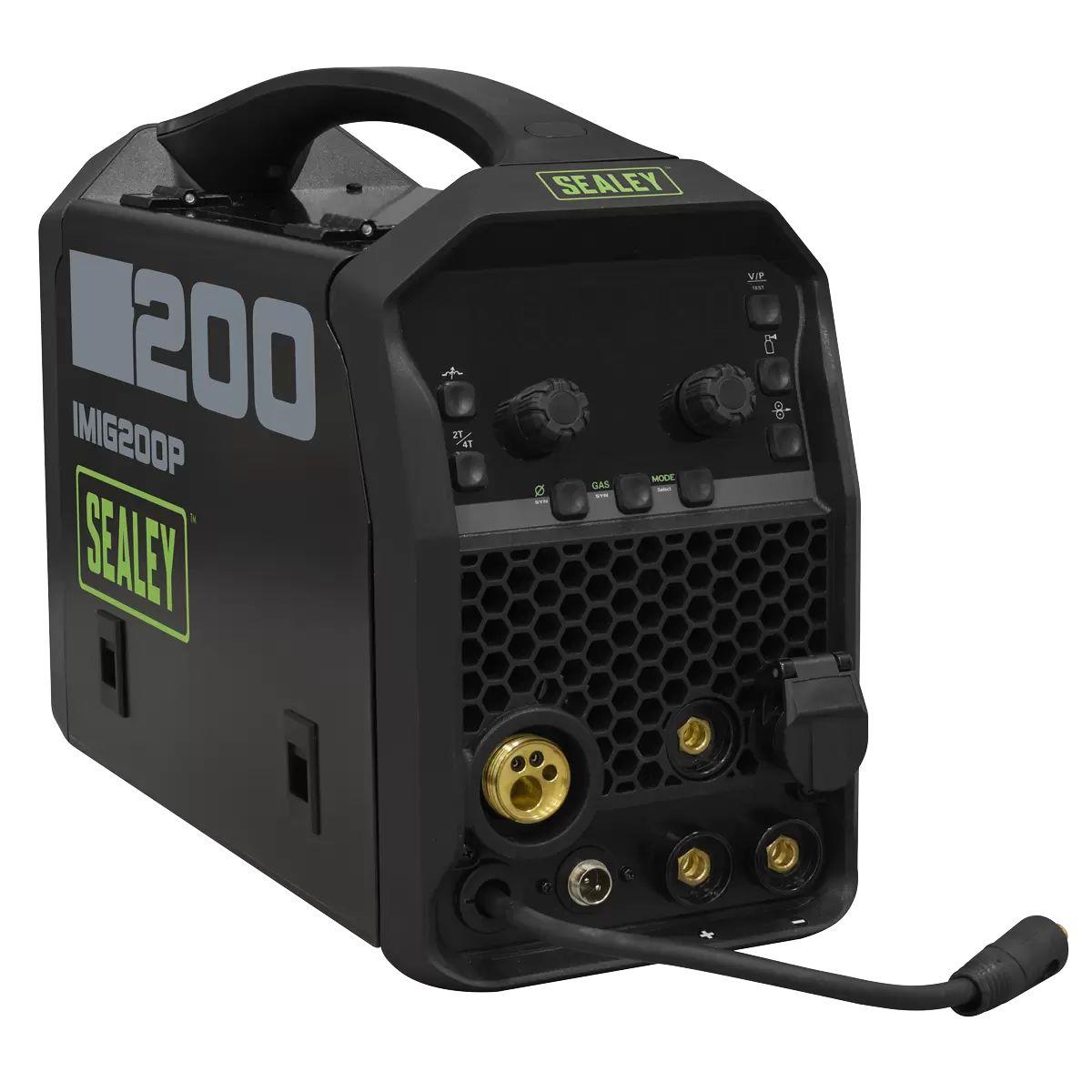

Sealey IMIG200P Multi-Process Inverter Welder 200A & Plasma Cutter 40A/230V
Sealey IMIG200P Multi-Process Inverter Welder 200A & Plasma Cutter 40A/230V
Features:
IGBT INVERTER MULTI-PROCESS WELDER IGBT Inverter multi process welding machine suitable for MIG, TIG, MMA/ARC applications up to 200A as well Plasma cutting at 40A.
MIG WIRE CAPACITY - Gas and Gasless unit which can MIG weld using both Solid wire Ø0.6-1mm and Flux cored wire Ø0.8-1mm at 5kg.
ELECTRODE CAPACITY - Electrode Capacity of 1.6-5mm.
PLASMA CUTTING THICKNESS - Max cutting capacity of 12mm and clean cutting at 8mm.
SAFETY FEATURES INCLUDE - Featuring hot start, anti-stick, forced air cooling and thermal cut out protection.
2T/4T TRIGGER - 2T/4T torch trigger function allowing greater precision during longer welds.
DIGITAL LCD SCREEN - Easy to read digital amp and volumeter display.
Comes With:
ACCESSORIES SUPPLIED - Supplied with 1.5m earth clamp, 2m electrode holder, 3m MIG torch, 4m cutting torch.
Product Specification:
Part number: IMIG200P
Barcode number: 5054630572791
Welding Current: 20-200A
Plasma Output: 15-40A
Duty Cycle: MIG - 20% @ 200A, TIG - 20% @ 200A, MMA - 20% @200A
Wire Capacity: 5kg
Electrode Capacity: 1.6-5mm
Absorbed Power: 9.5kW
Supply: 230V
Plug Type: Bare Wire
Power Supply Cable Length: 2m
IP Rating: IP21S
Weight: 14.6kg
Air Pressure: 87psi
Max. Cutting Thickness: 12mm
Clean Cutting Thickness: 8mm
Nett Weight: 11.1kg
**images for illustrative purposes only – please refer to description and specification for full details of product**
