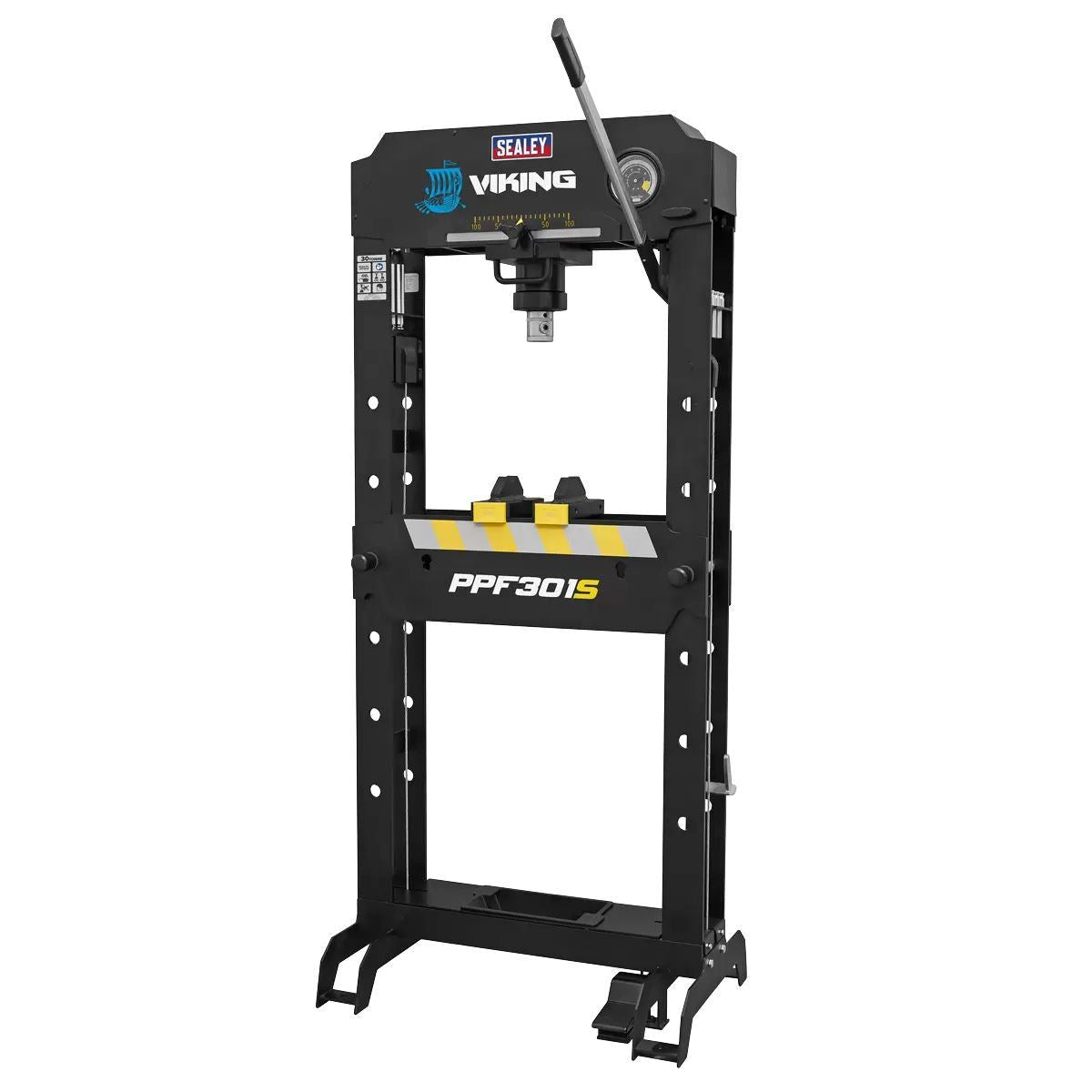

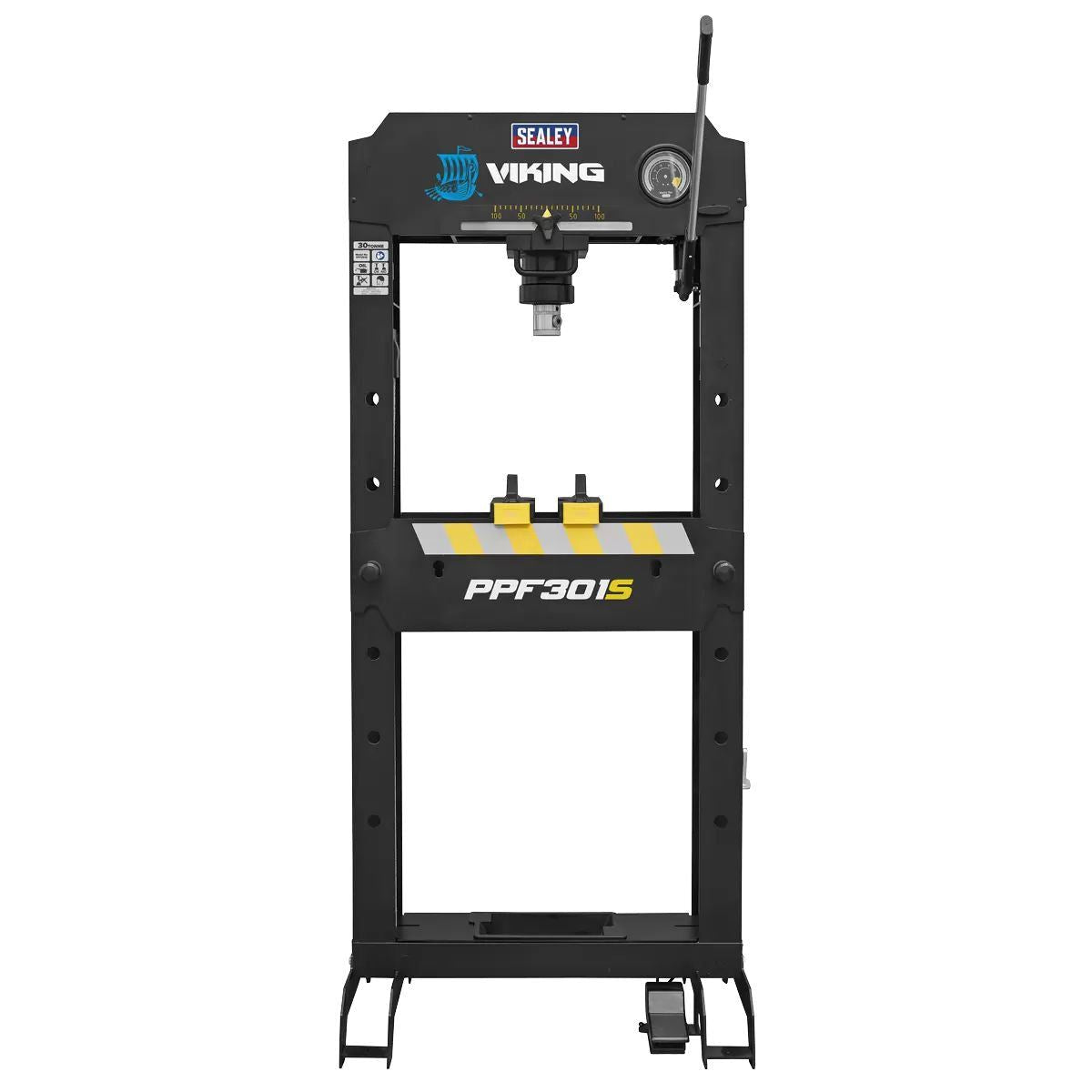

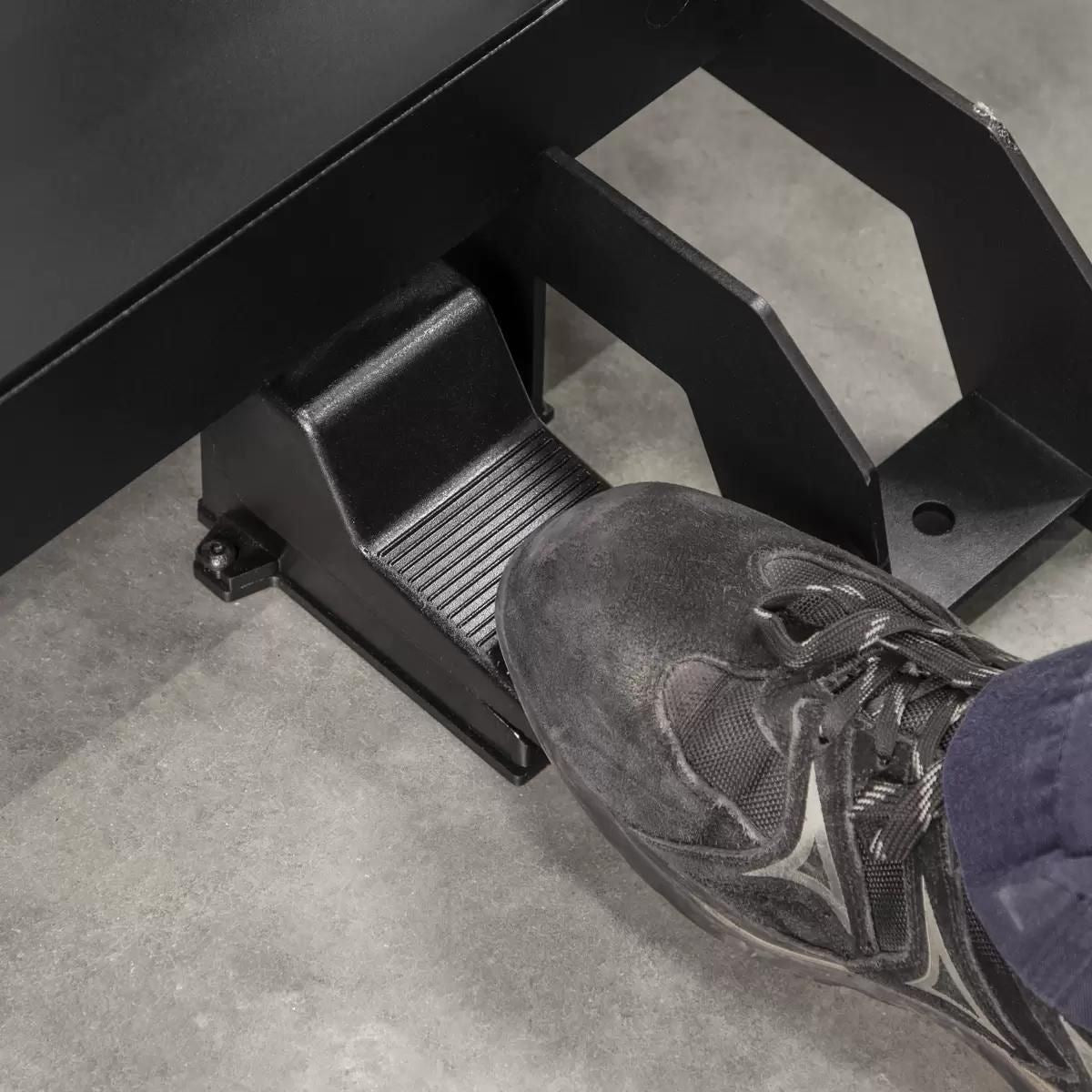

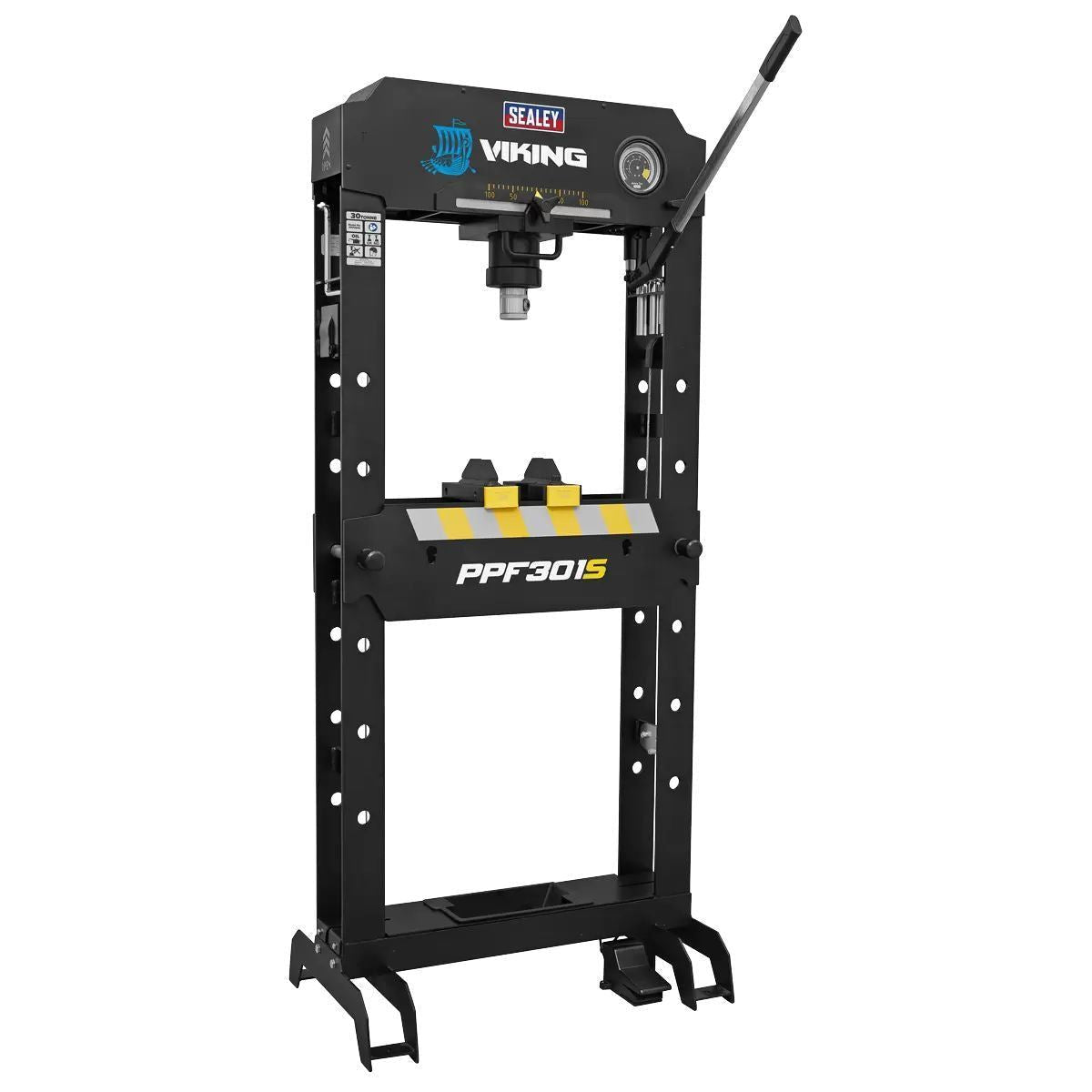

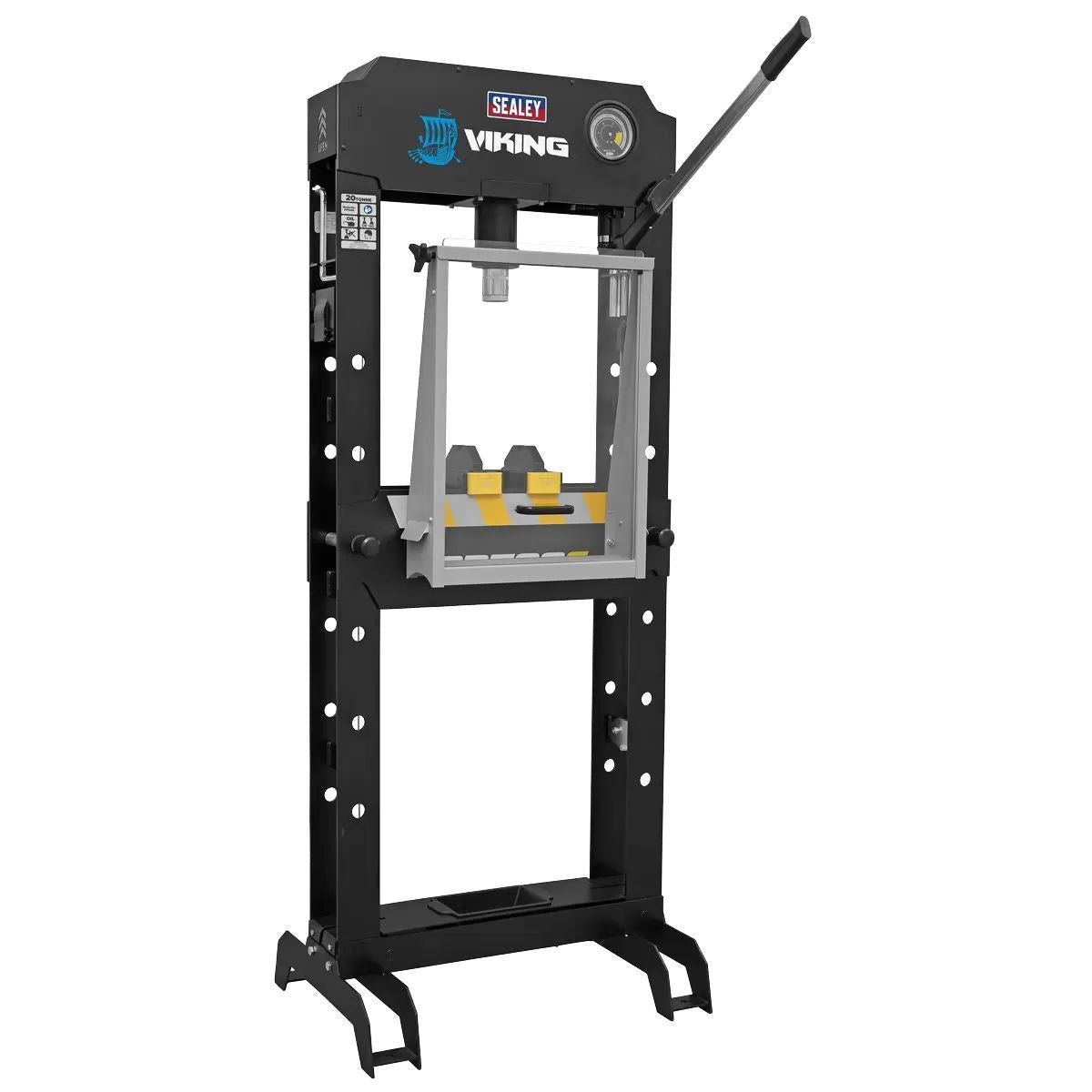

Sealey PPF301S Viking Air/Hydraulic Press 30 Tonne Floor Type with Sliding Ram and Foot Pedal

Sealey PPF301S Viking Air/Hydraulic Press 30 Tonne Floor Type with Sliding Ram and Foot Pedal

Features:

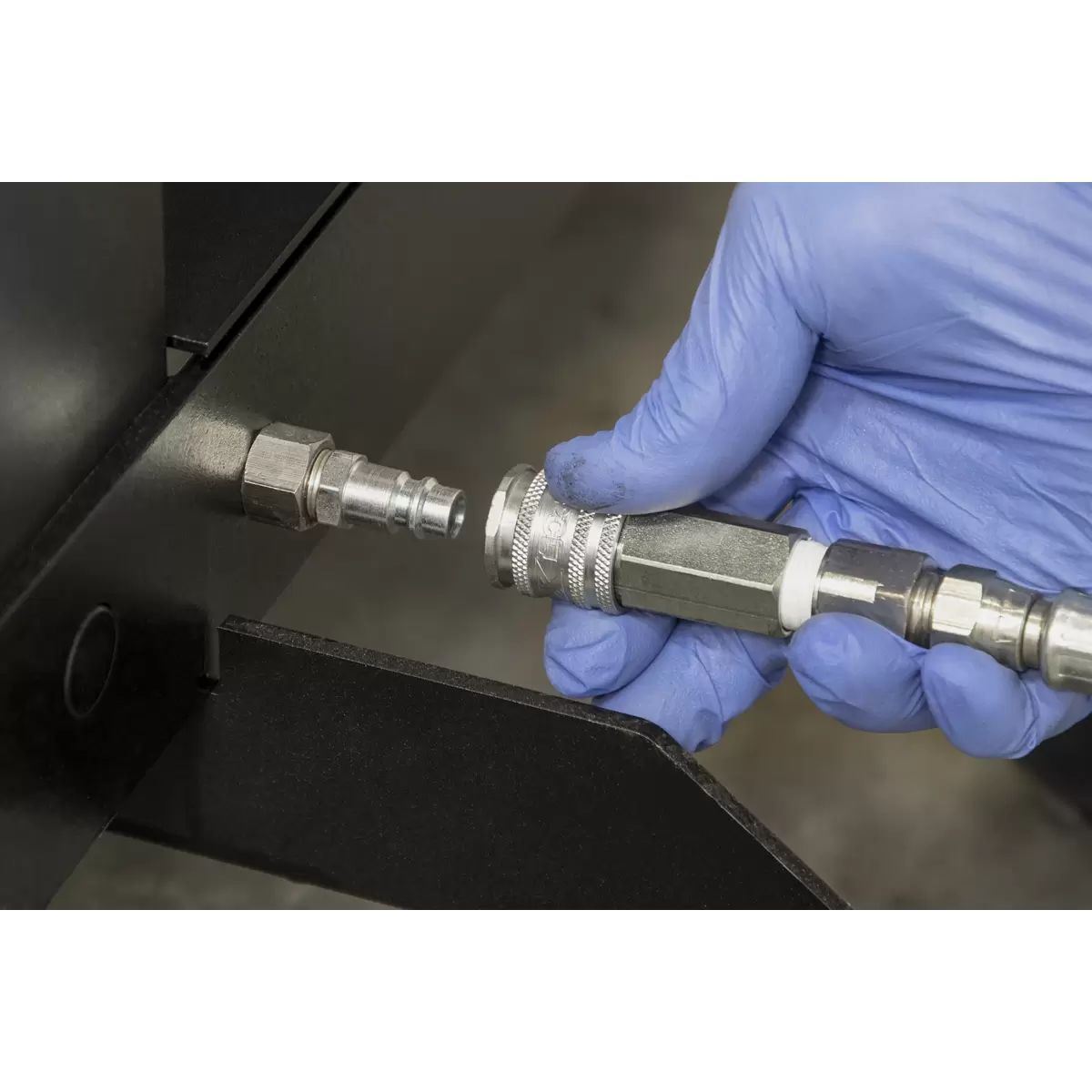

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.

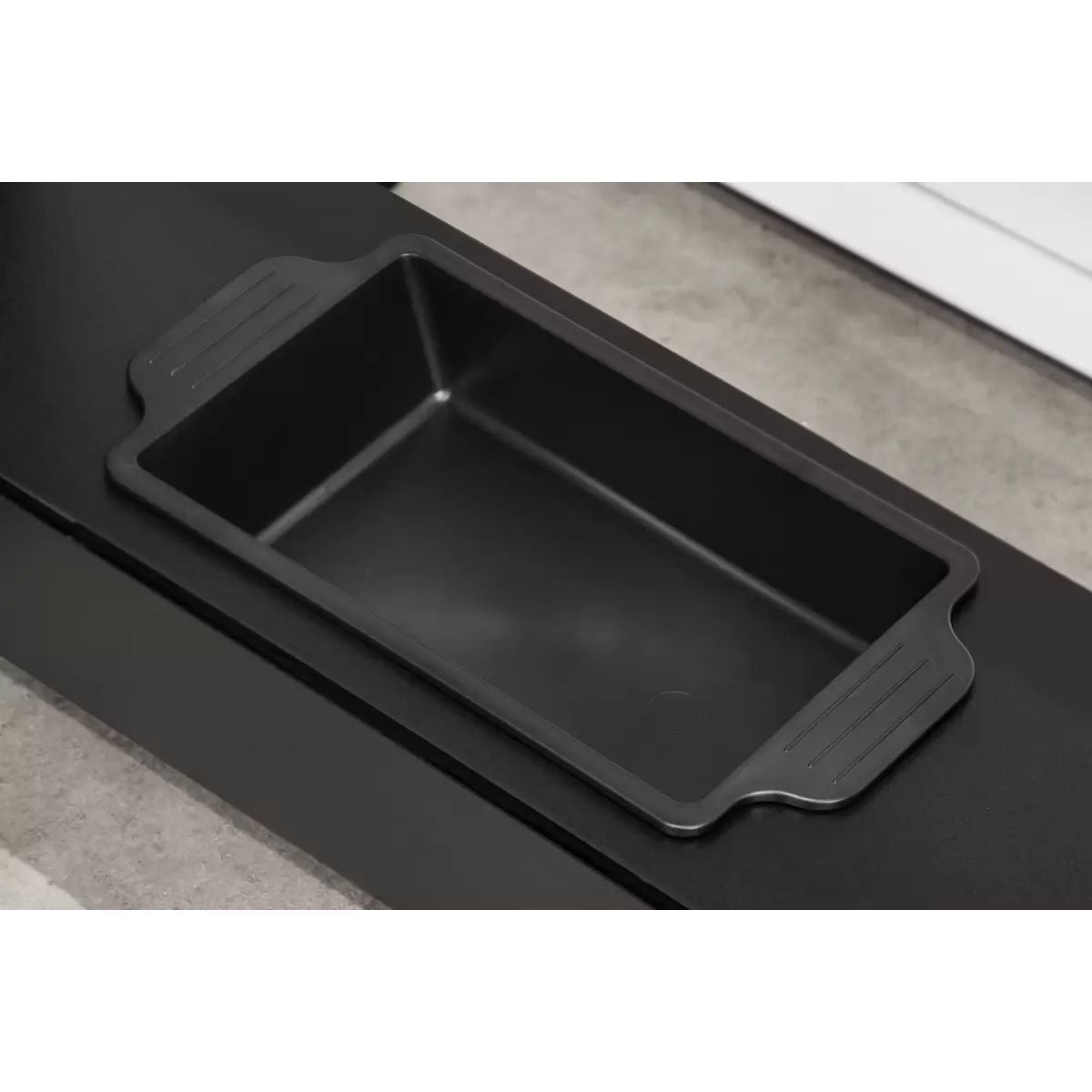

Screw adjustable ram and adjustable work area with removable tray.

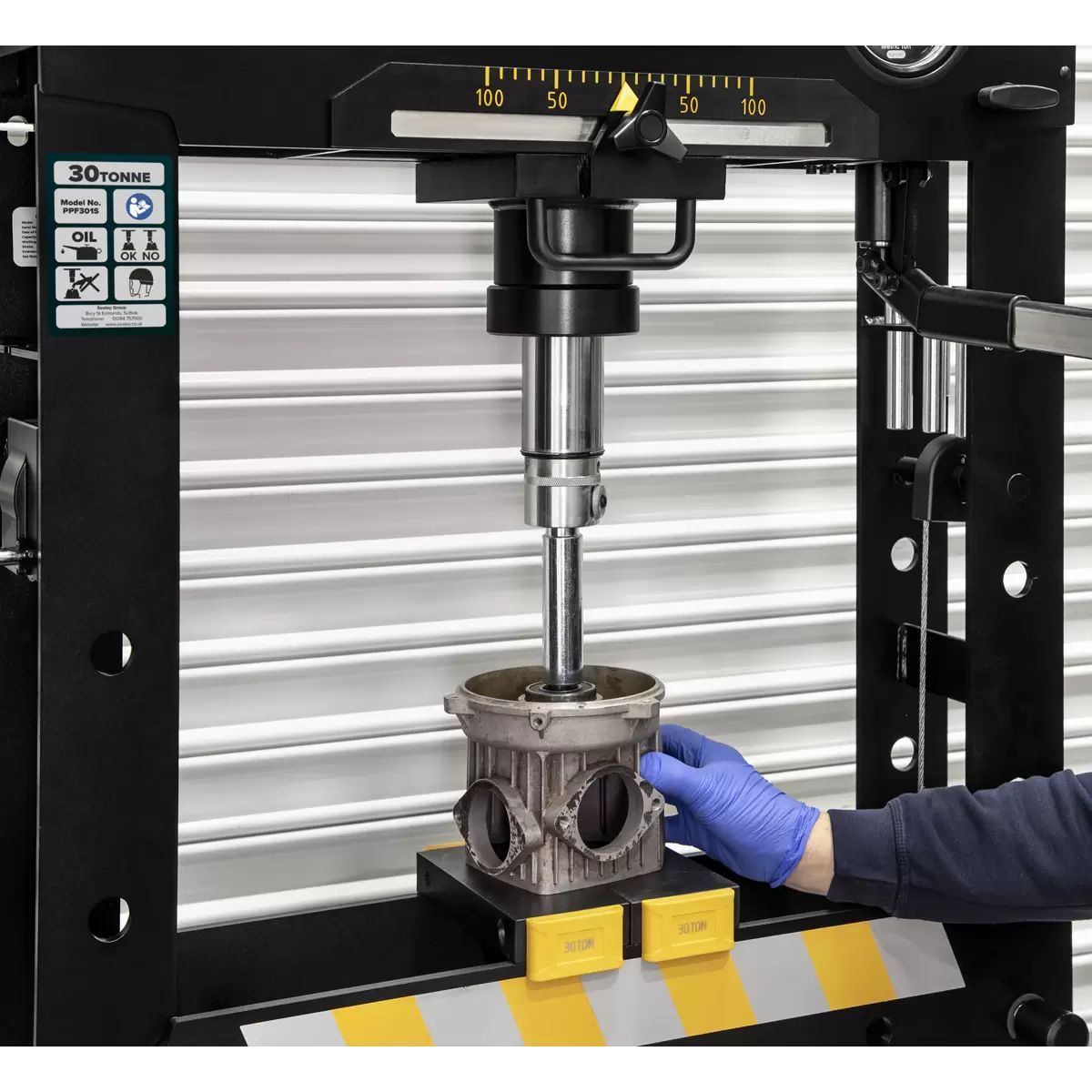

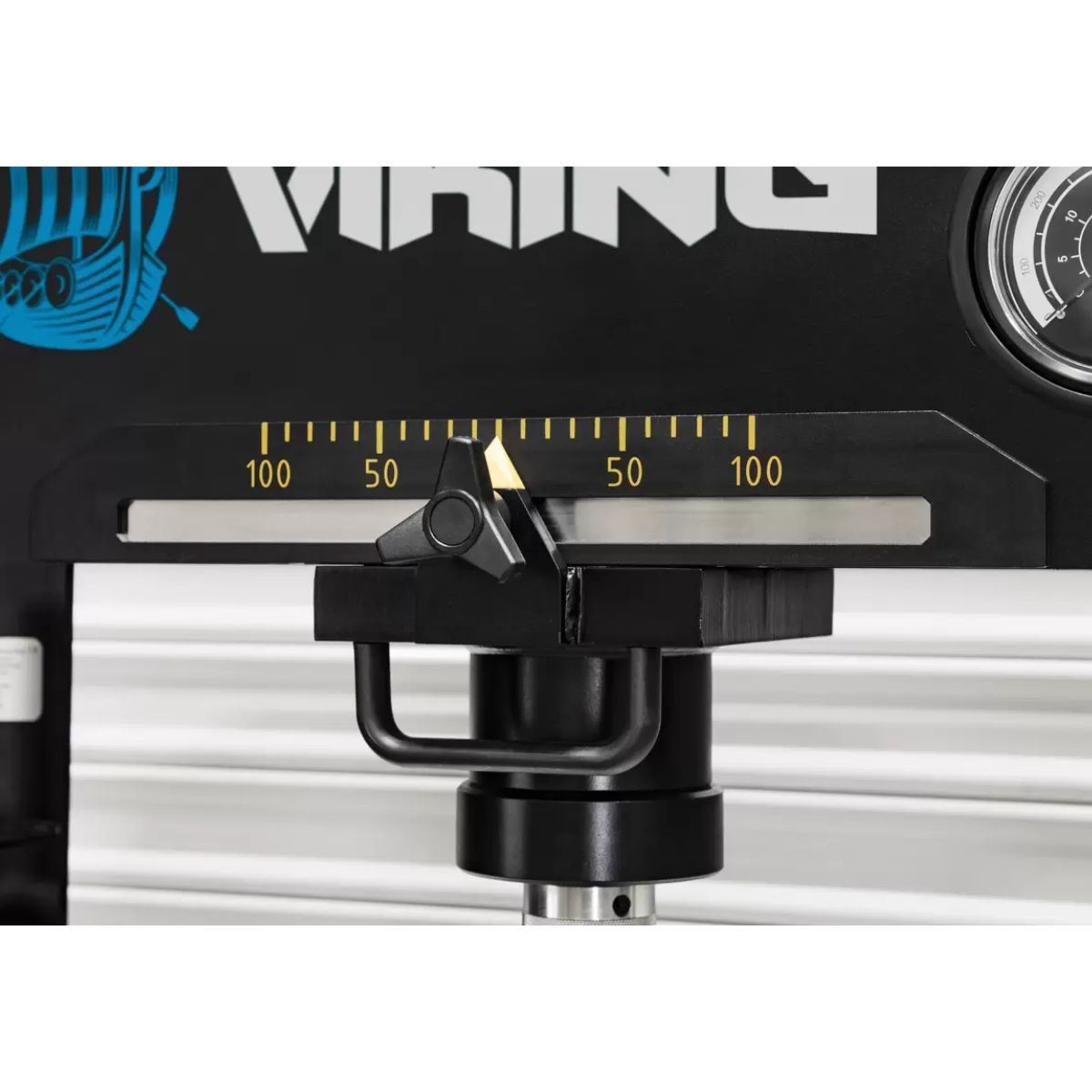

Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.

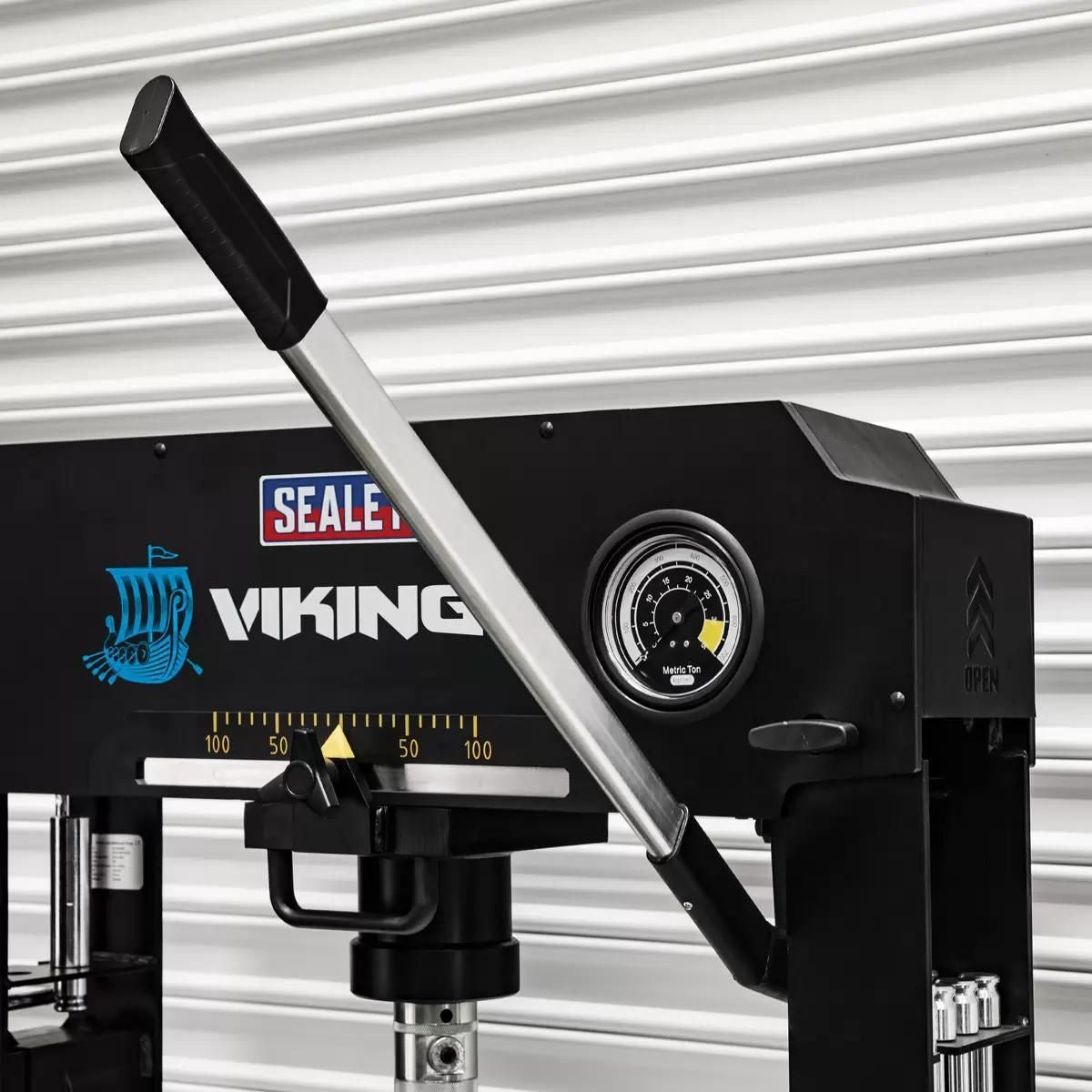

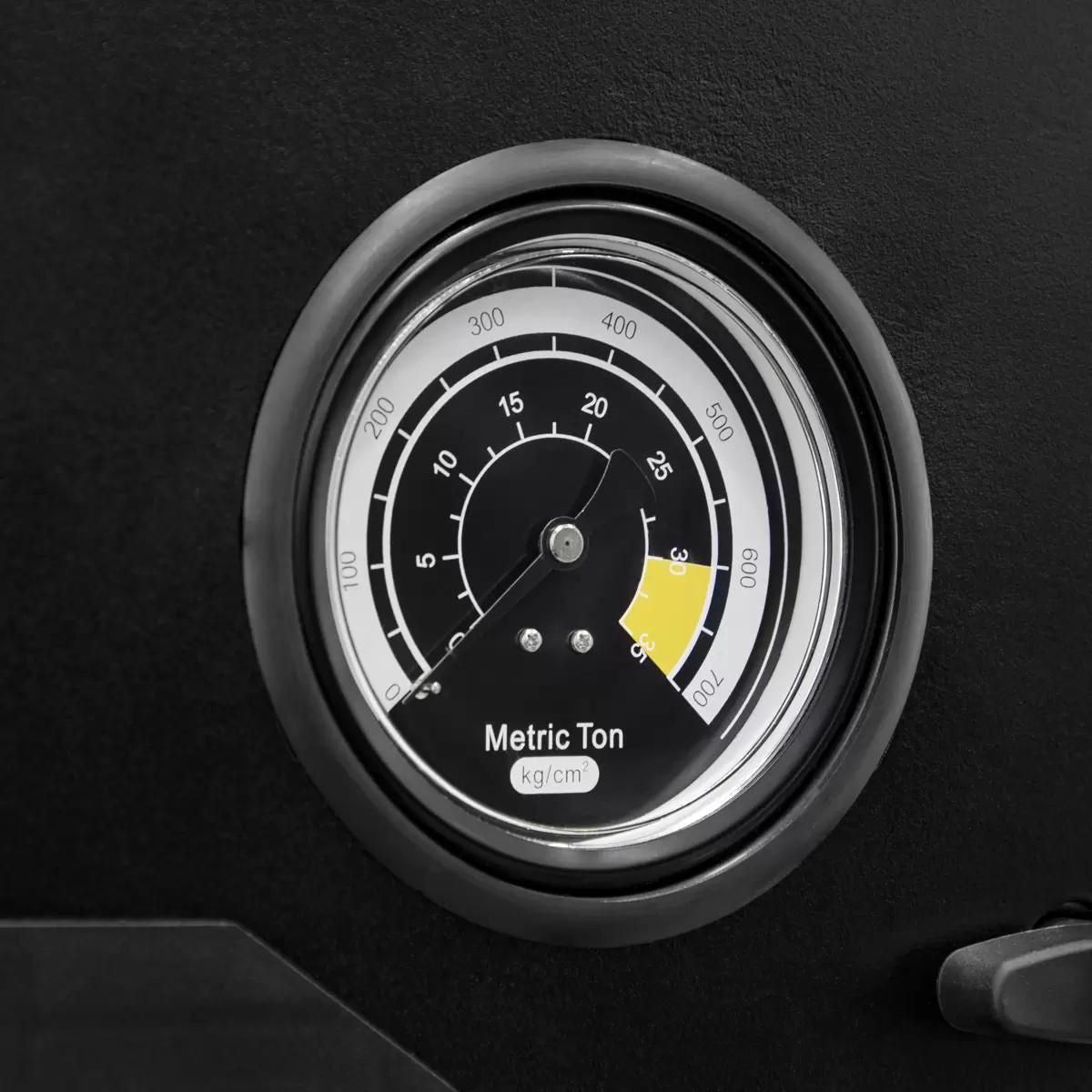

Frame head fitted with ram pressure gauge.

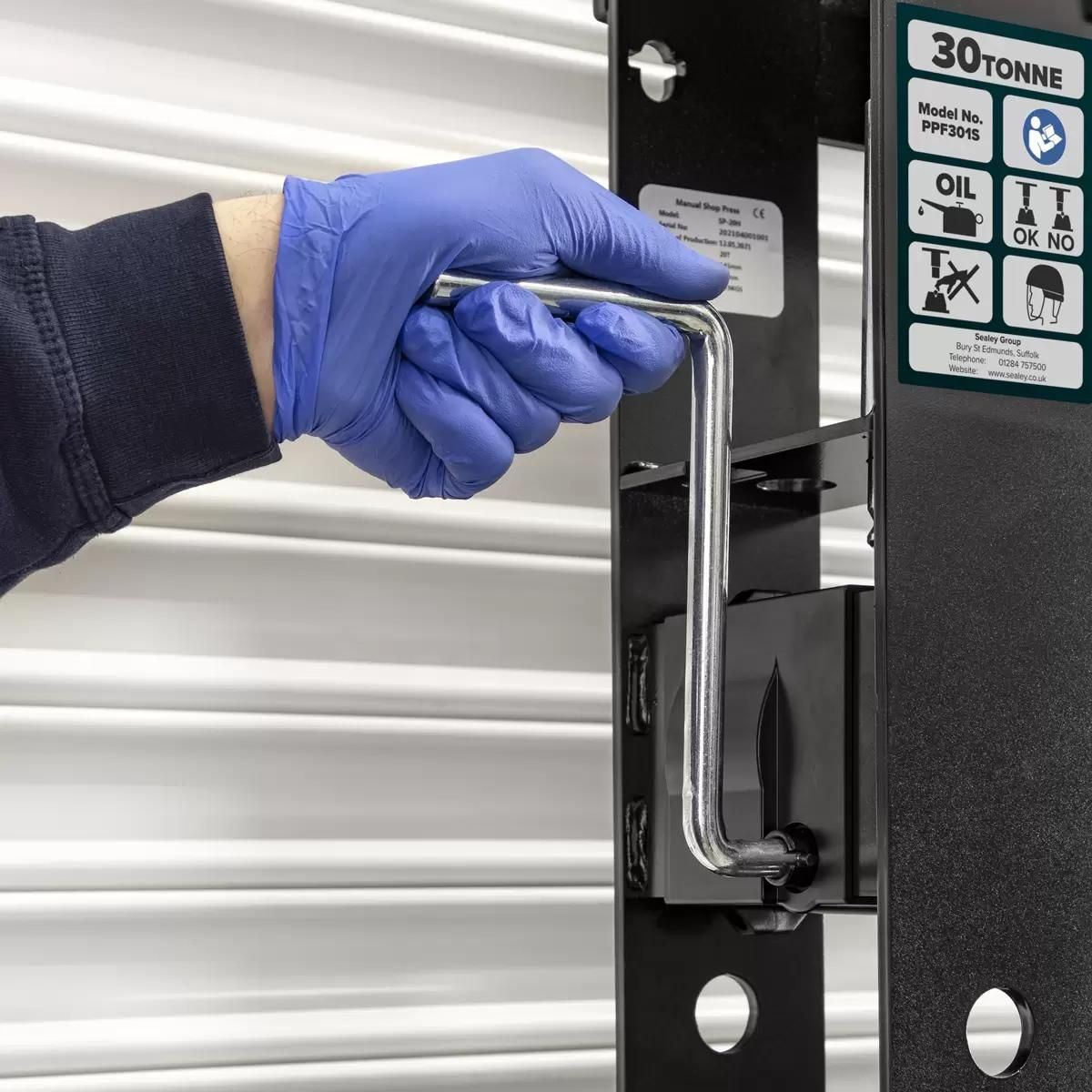

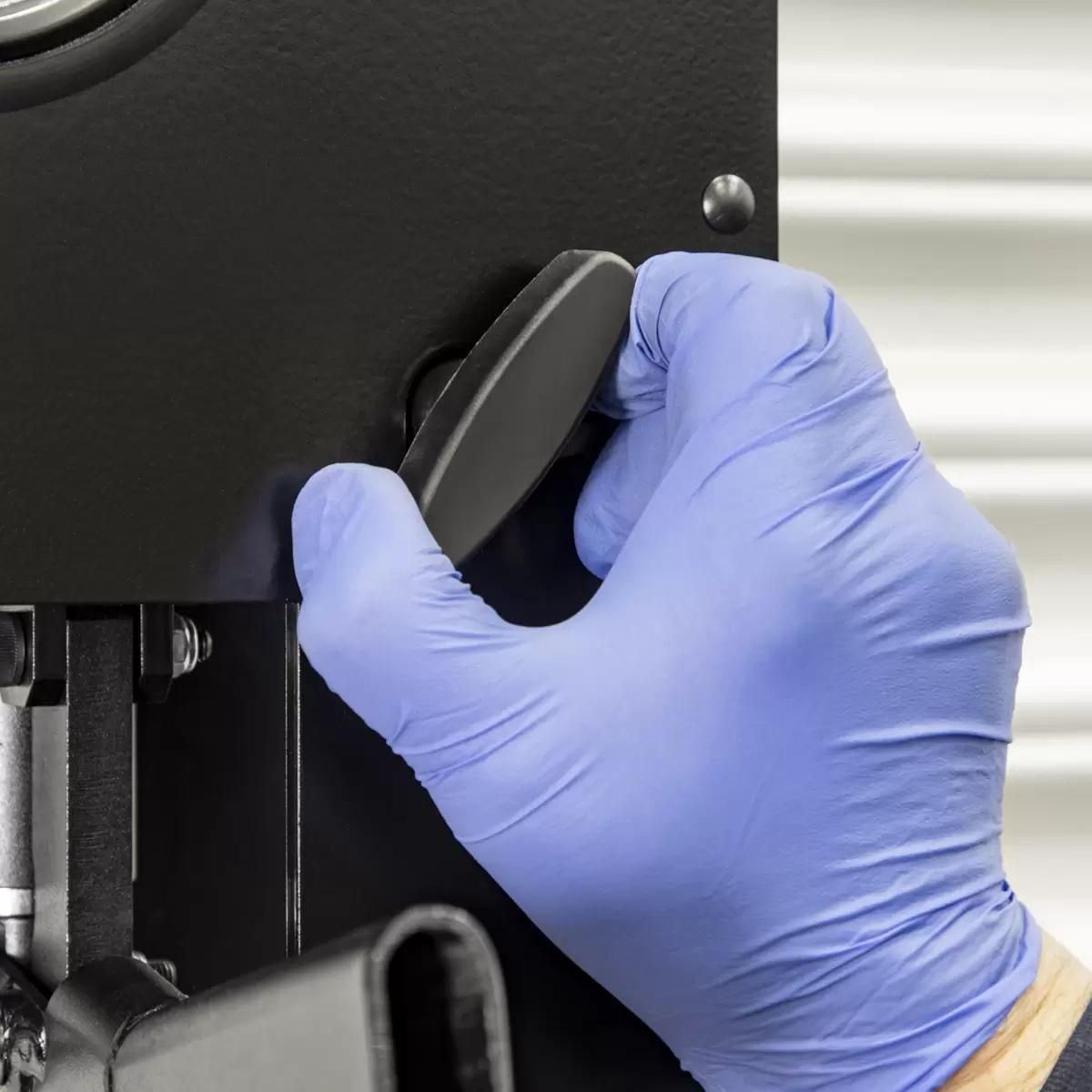

Winch assisted press table adjustment.

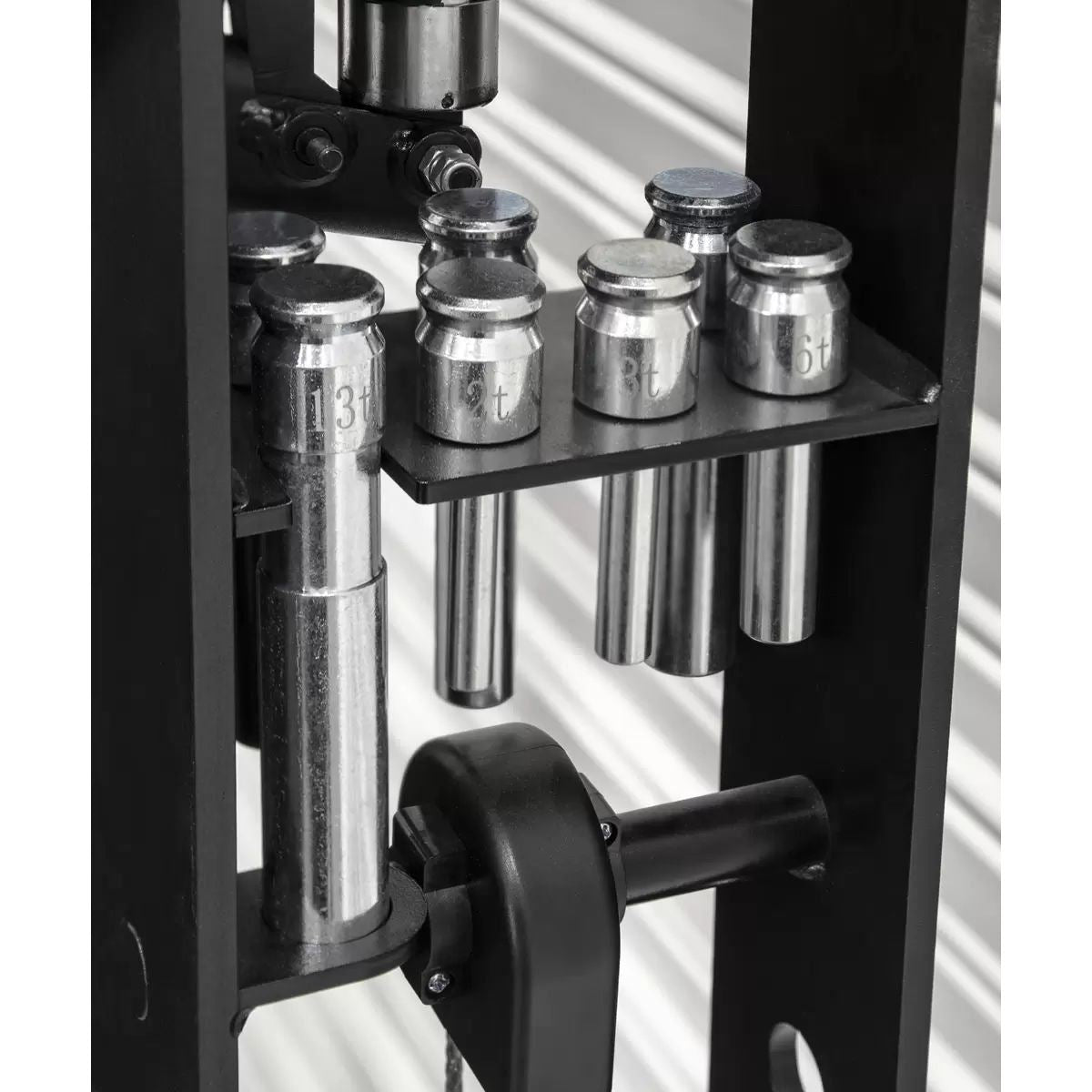

Storage for press pins included in frame.

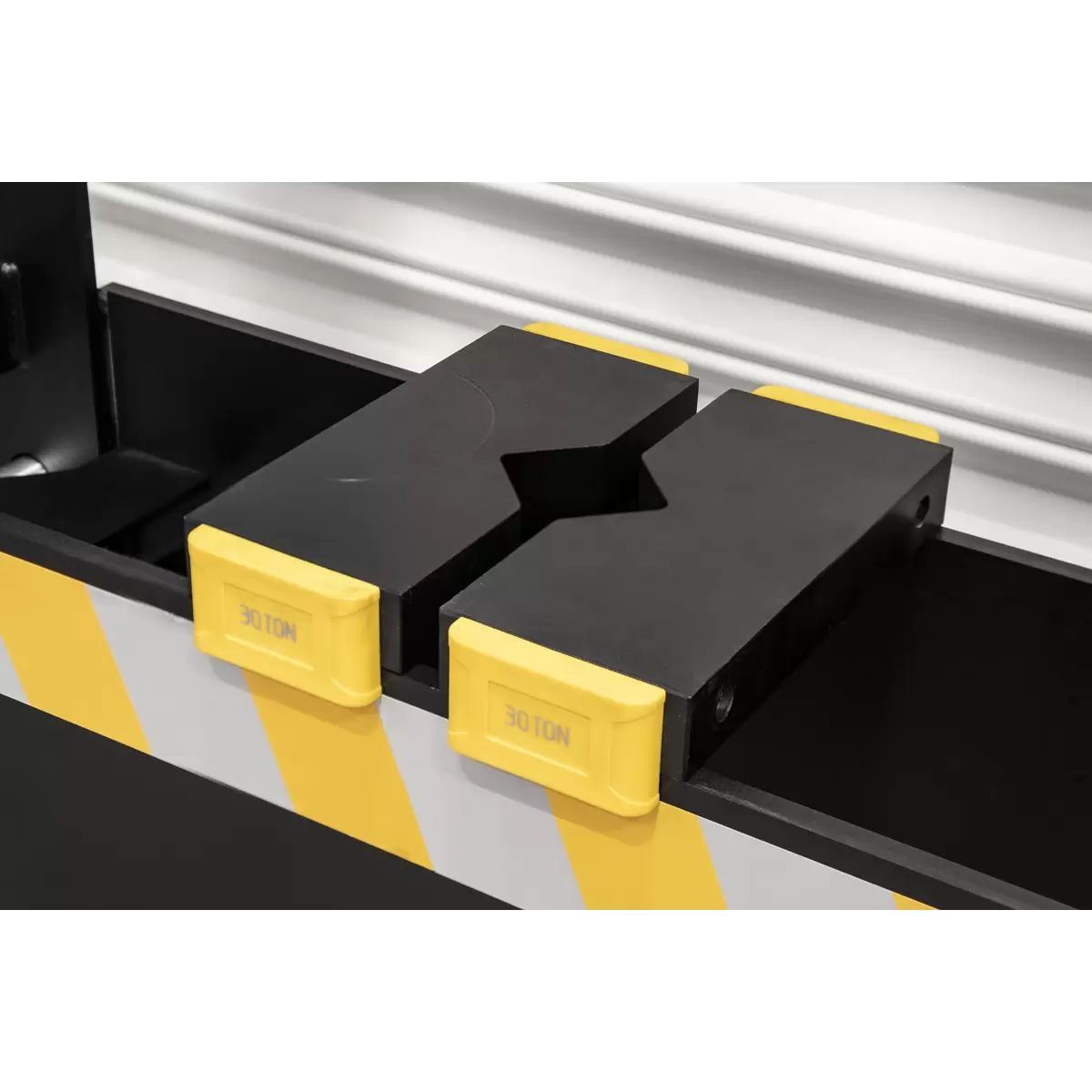

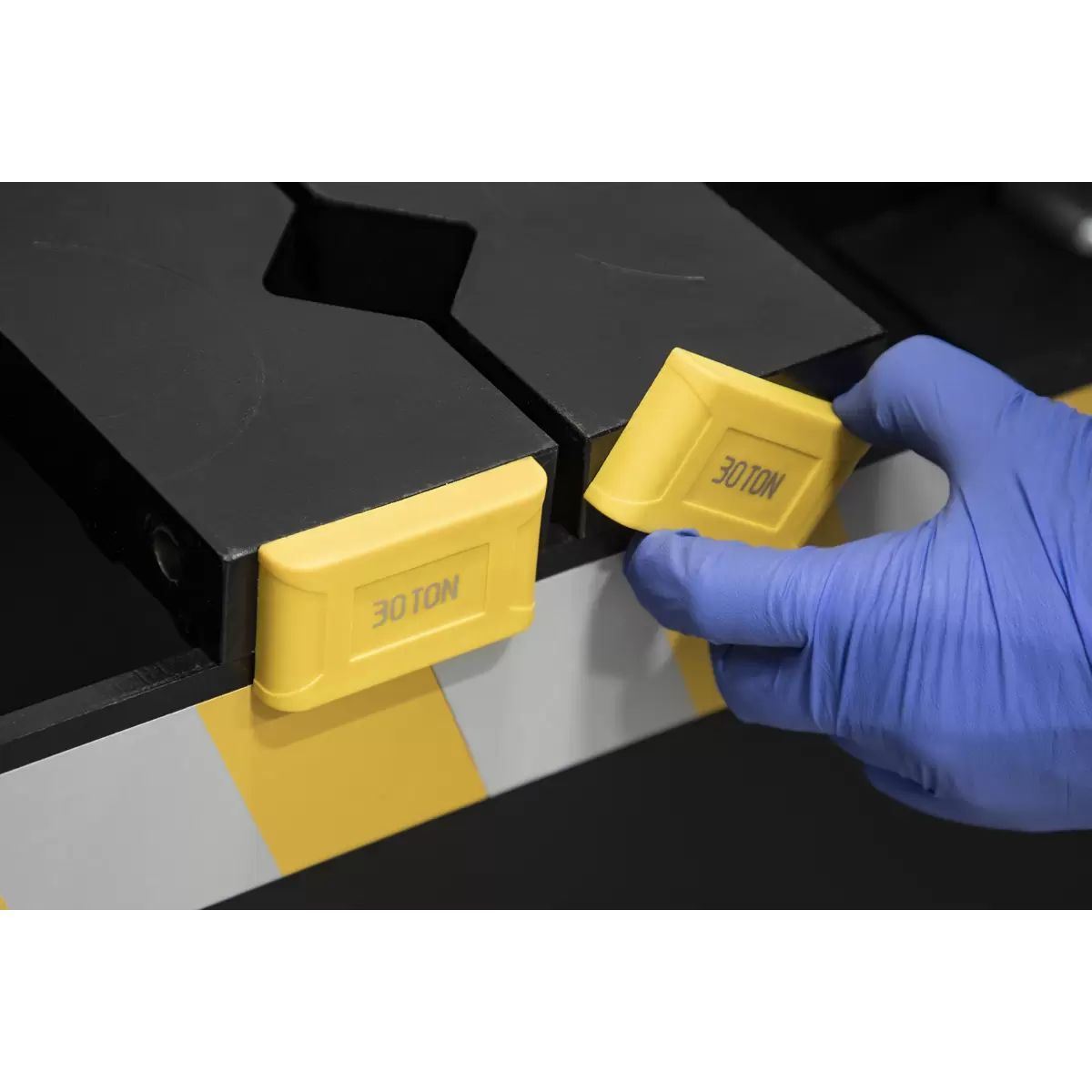

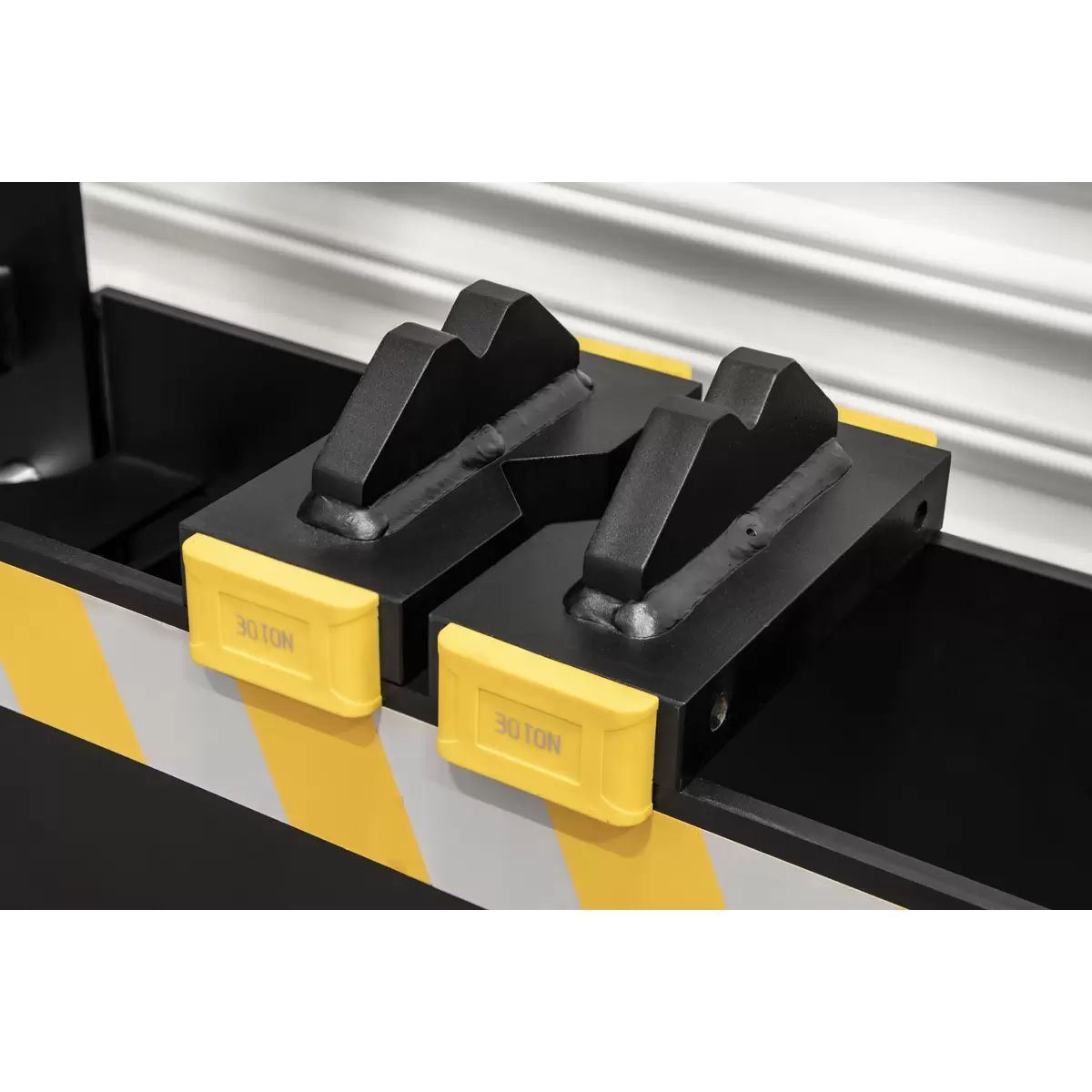

Supplied with press pins, flat pressing plate/V-blocks.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

Part No: PPF301S
Barcode: 5054630135002
Air Consumption: 4.5cfm
Bench or Floor Mounting: Floor
Capacity: 30 Tonne
Gauge Included: Yes
Lateral Ram Travel: 200mm

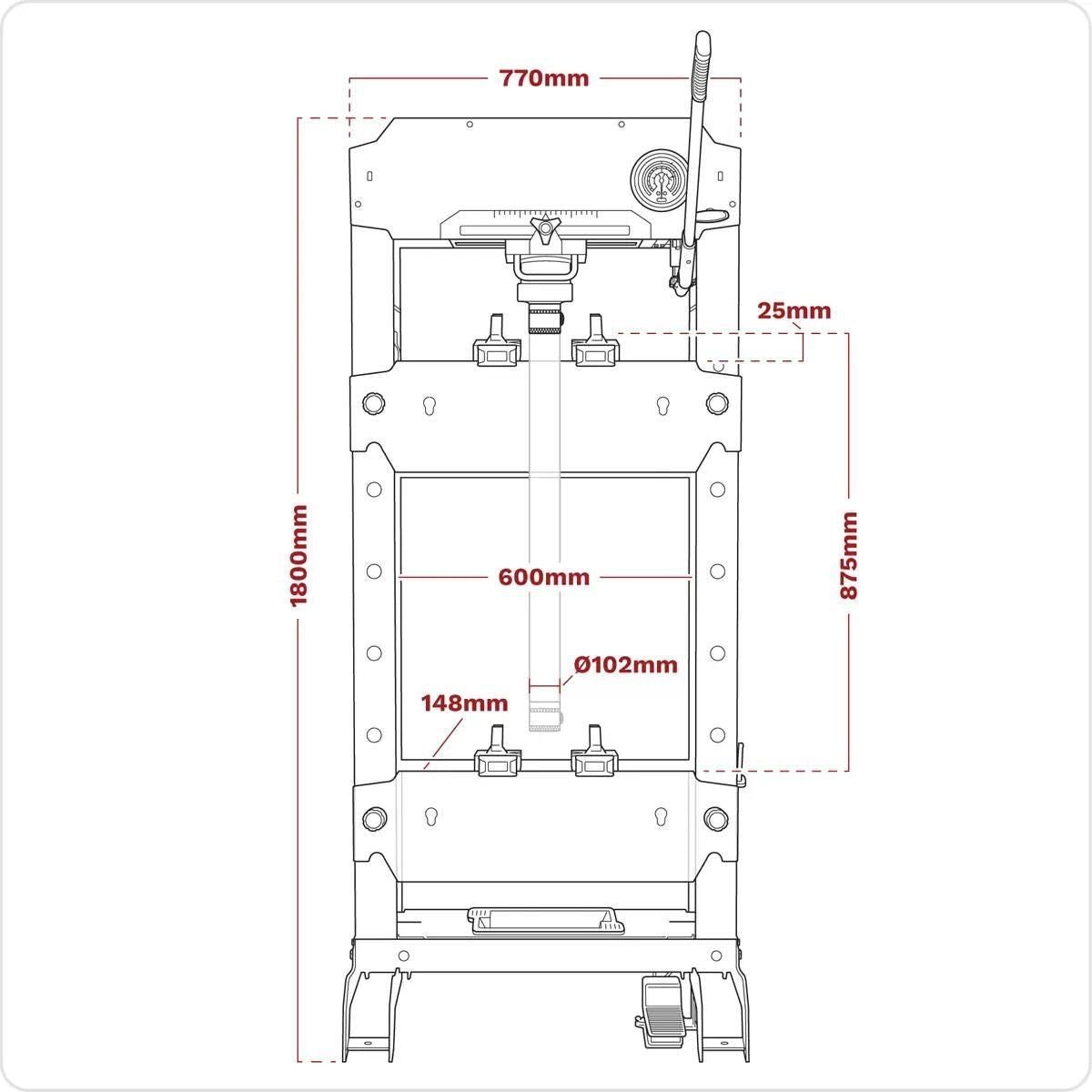

Maximum Height - Ram to Table: 875mm
Minimum Height - Ram to Table: 25mm
Nett Weight: 162.5kg
Overall Height: 1800mm
Overall Width: 770mm
Ram Diameter: ∅102mm
Ram Stroke: 145mm
Screw Extension: 75mm
Table Aperture: 168mm
Type: Floor
Working Table Depth: 188mm
Working Table Width: 710mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
