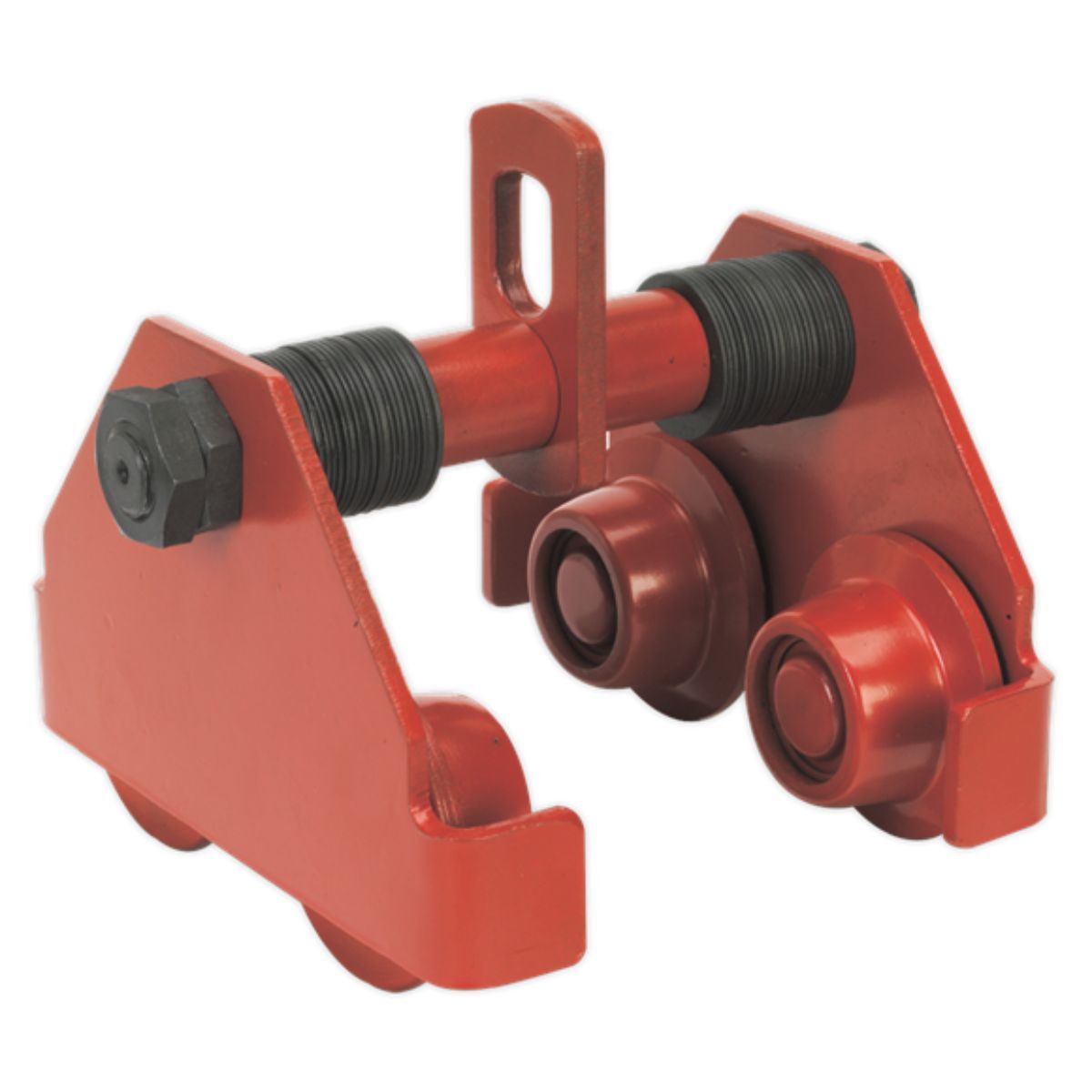

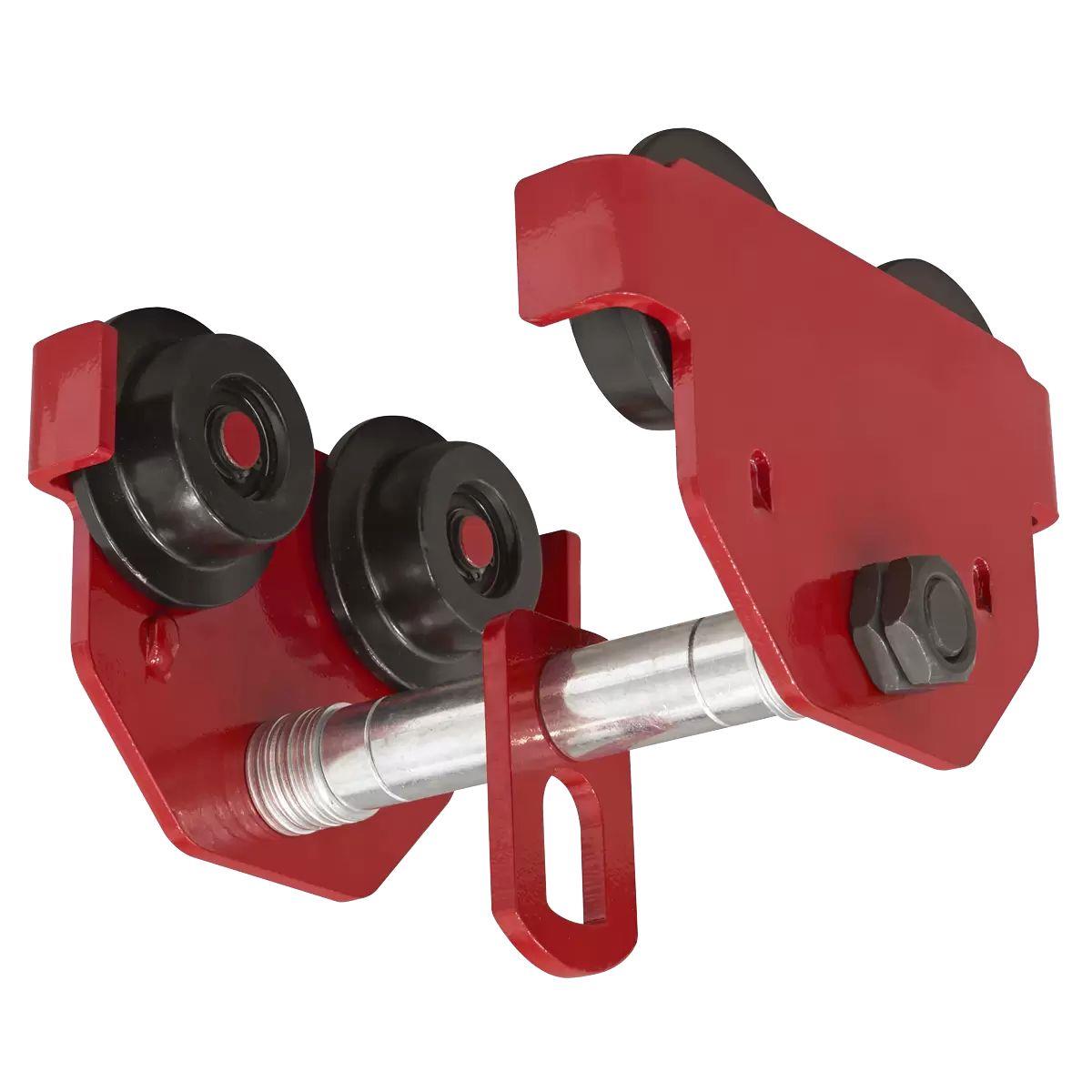

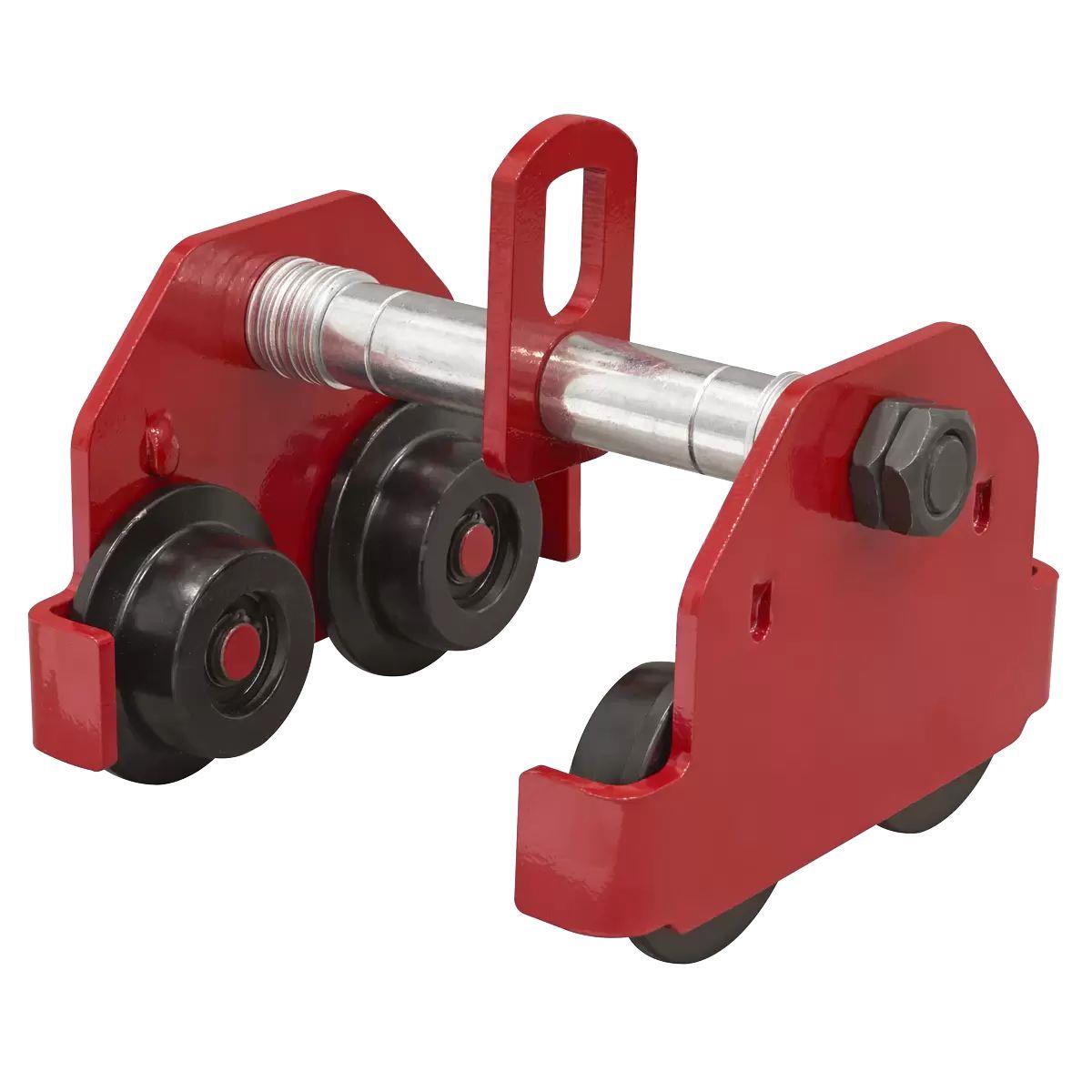

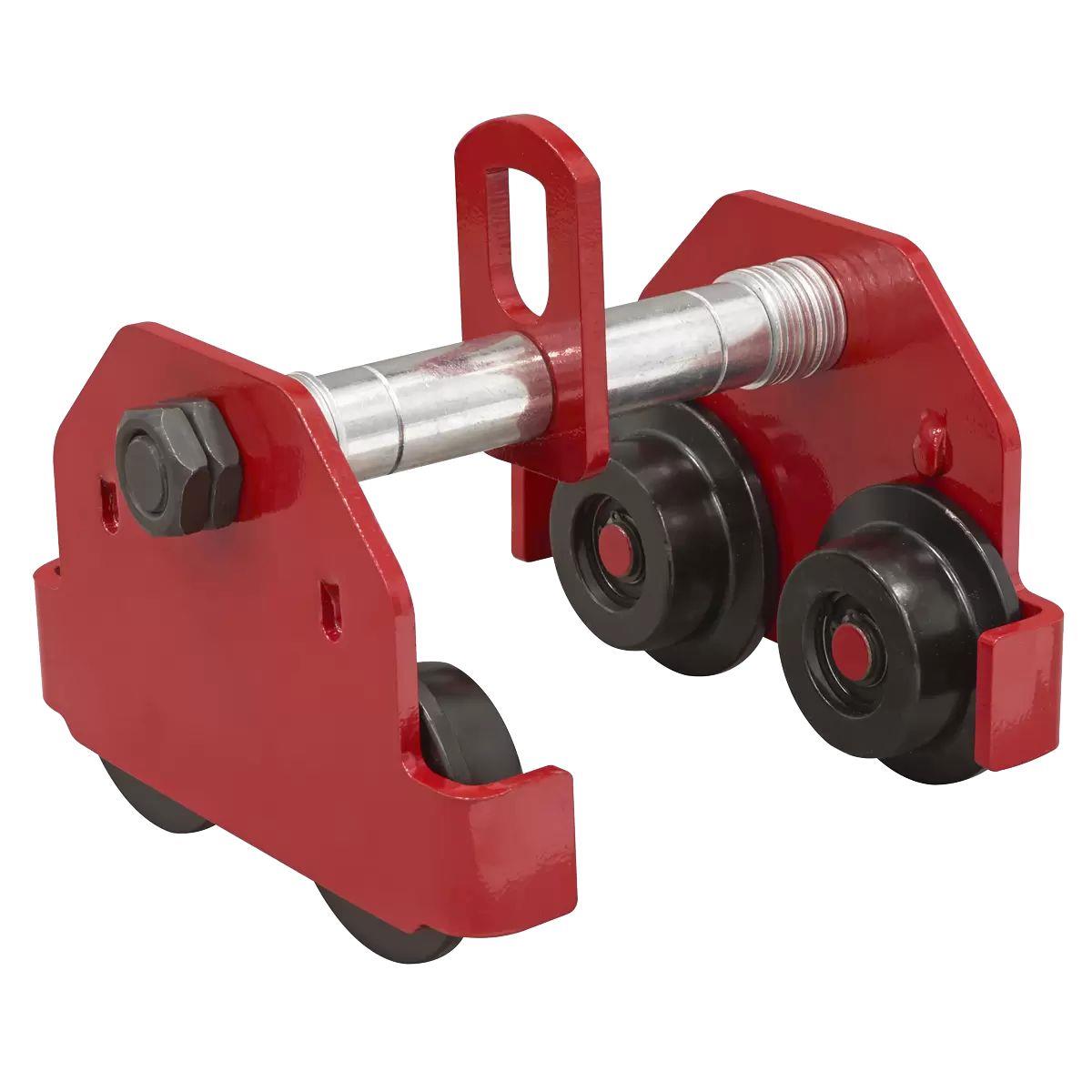

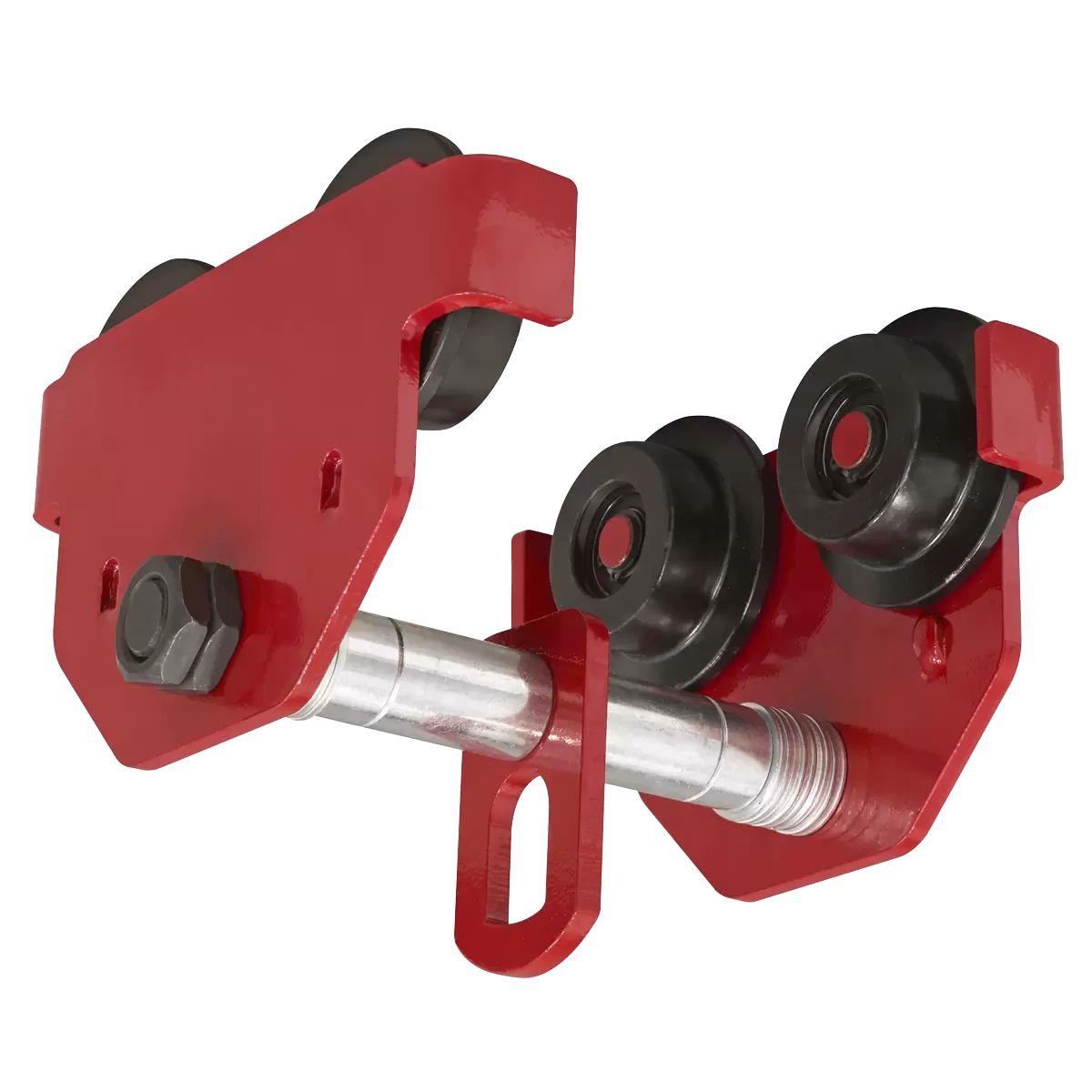

Sealey PT500 Trolley Plain 0.5 Tonne
Sealey PT500 Trolley Plain 0.5 Tonne
Features:

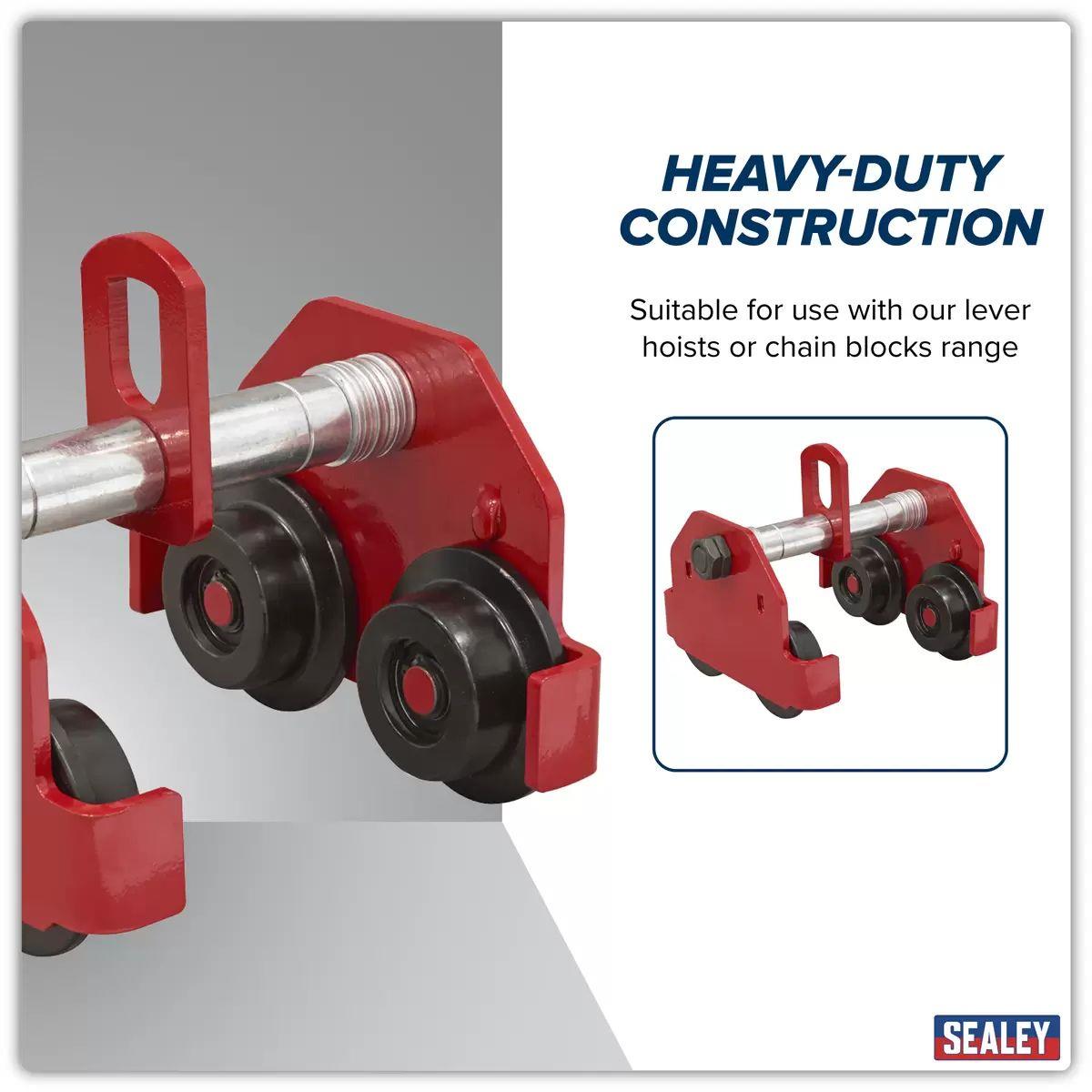

Suitable for use with our lever hoists or chain blocks.
Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

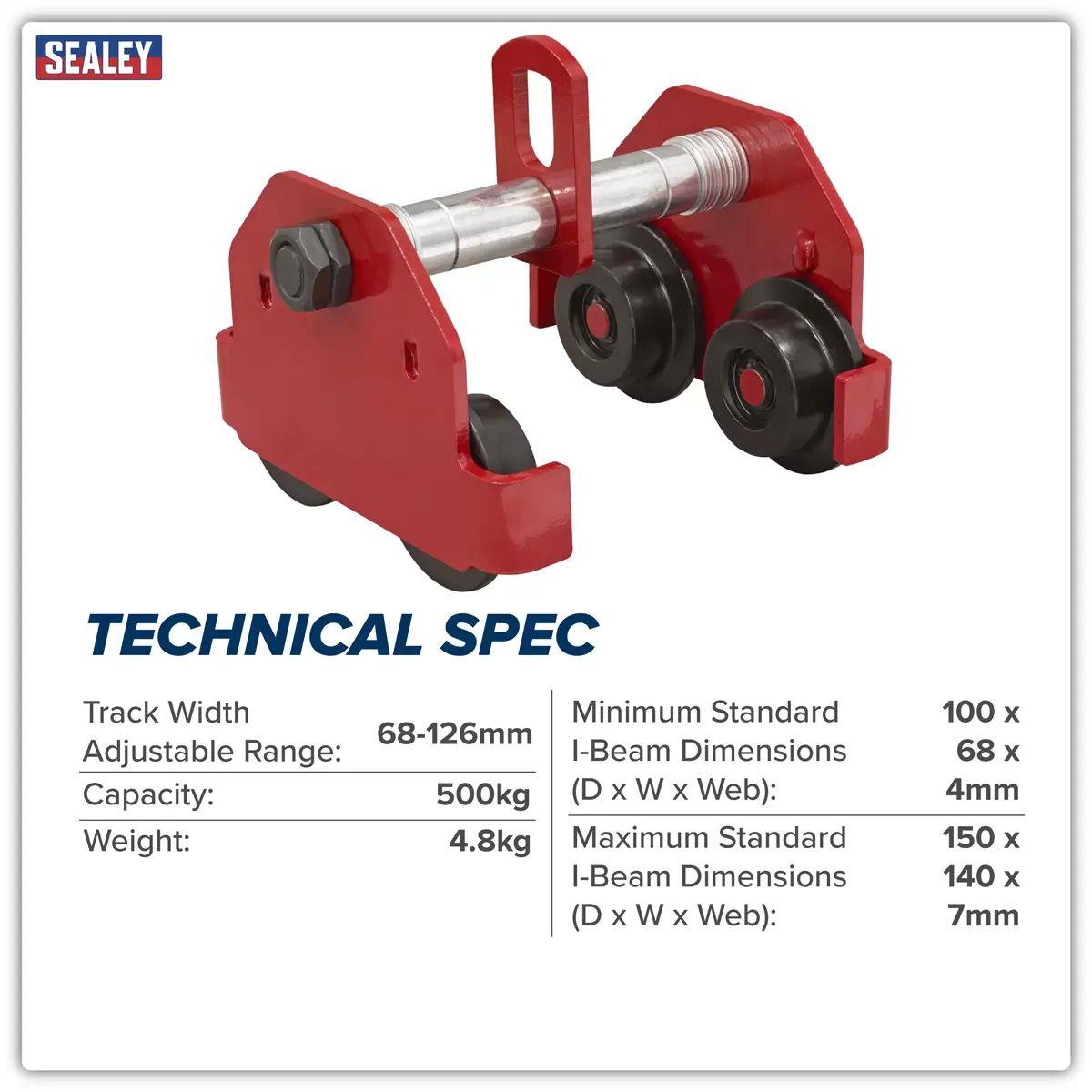

Specification:
Part Number: PT500
Barcode: 5024209142717
Brand: Sealey
Nett Weight: 7kg
Capacity: 500kg
Test Load: 750kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 800mm
A: 212mm
B: 115mm
C: 115mm
D: 90mm
E: 115mm
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 8000mm
Barcode: 5024209142717
Brand: Sealey
Nett Weight: 7kg
Capacity: 500kg
Test Load: 750kg
Track Width Adjustable Range: 64-140mm
Minimum Curve Radius: 800mm
A: 212mm
B: 115mm
C: 115mm
D: 90mm
E: 115mm
Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
Maximum Distance Between Spans: 8000mm
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
