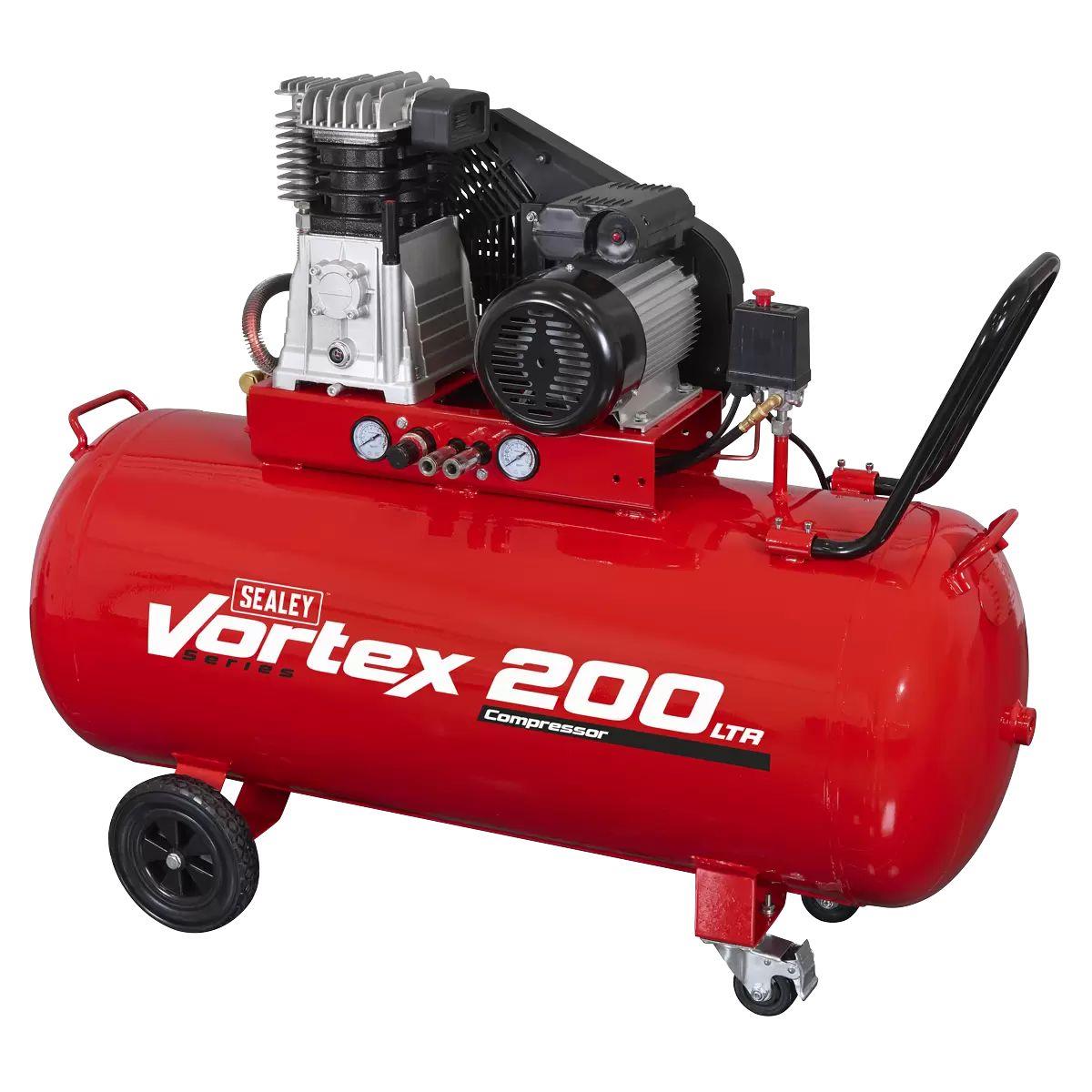

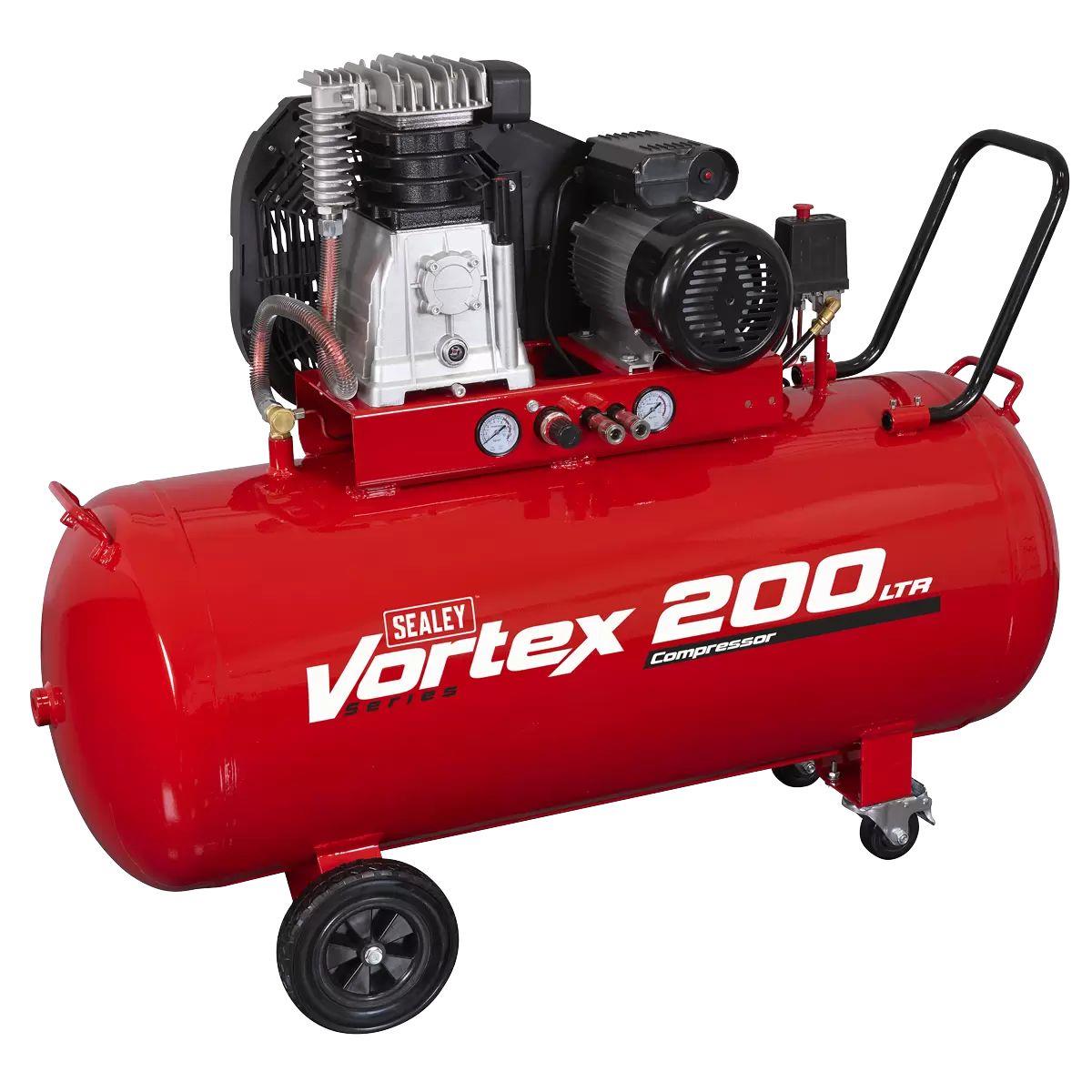

Sealey SAC1203B 200L Belt Drive Compressor with 3hp Motor & Cast Cylinders
Suitable for the professional workshop, these units are fitted with a genuine 3hp motor.
Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.
Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
Model No.: SAC1203B
Motor Output: 3hp
Voltage/Phase: 230V - 1ph
Rated Supply: 13A
Air Displacement cfm(ltr/min): 13.4(380)
Maximum Free Air Delivery cfm(ltr/min): 8.8(249)
Maximum Pressure: 145psi(10bar)
Receiver Capacity: 200L
Dimensions (W x D x H): 1440 x 440 x 865mm
Nett Weight: 90kg
**images for illustrative purposes only – please refer to description and specification for full details of product**
