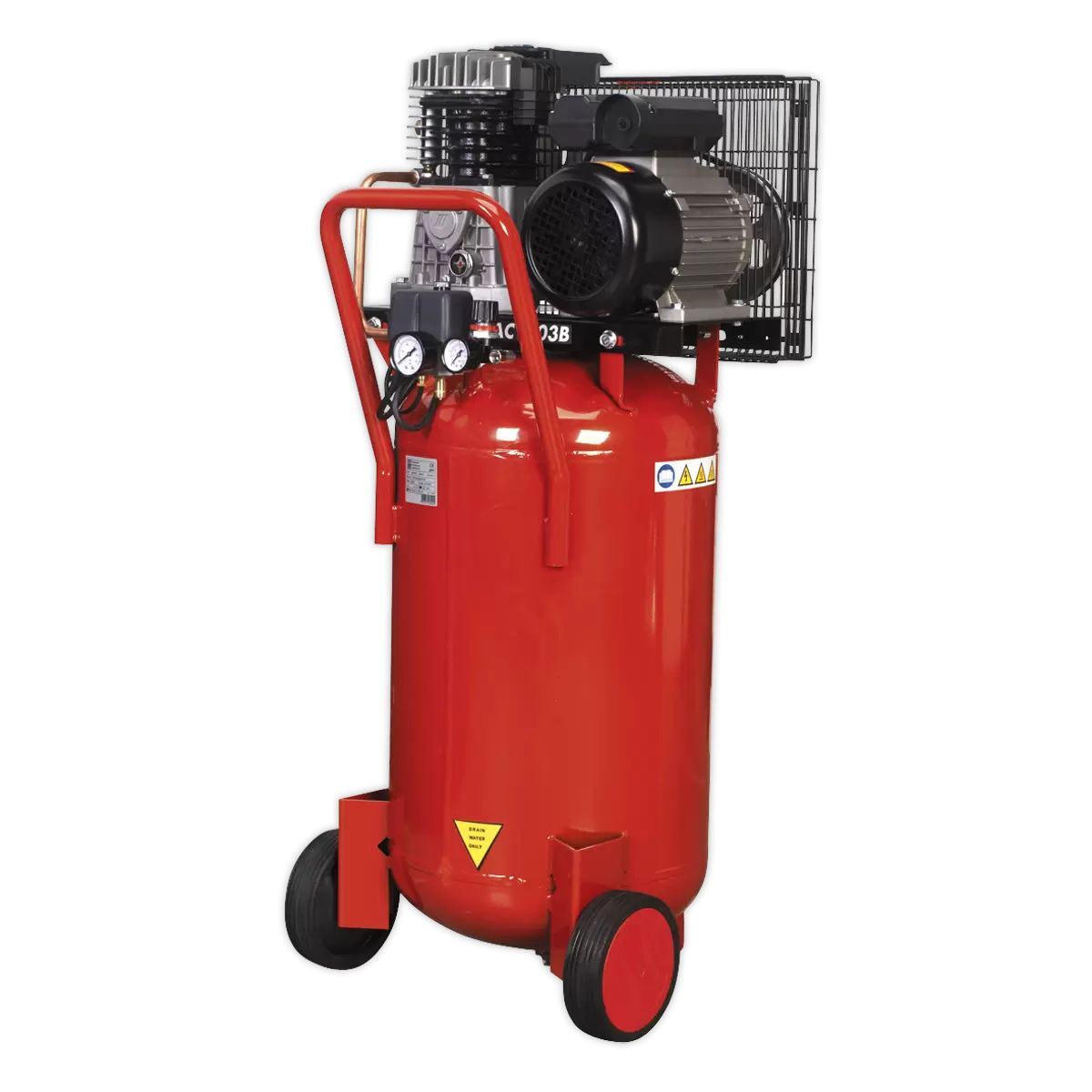

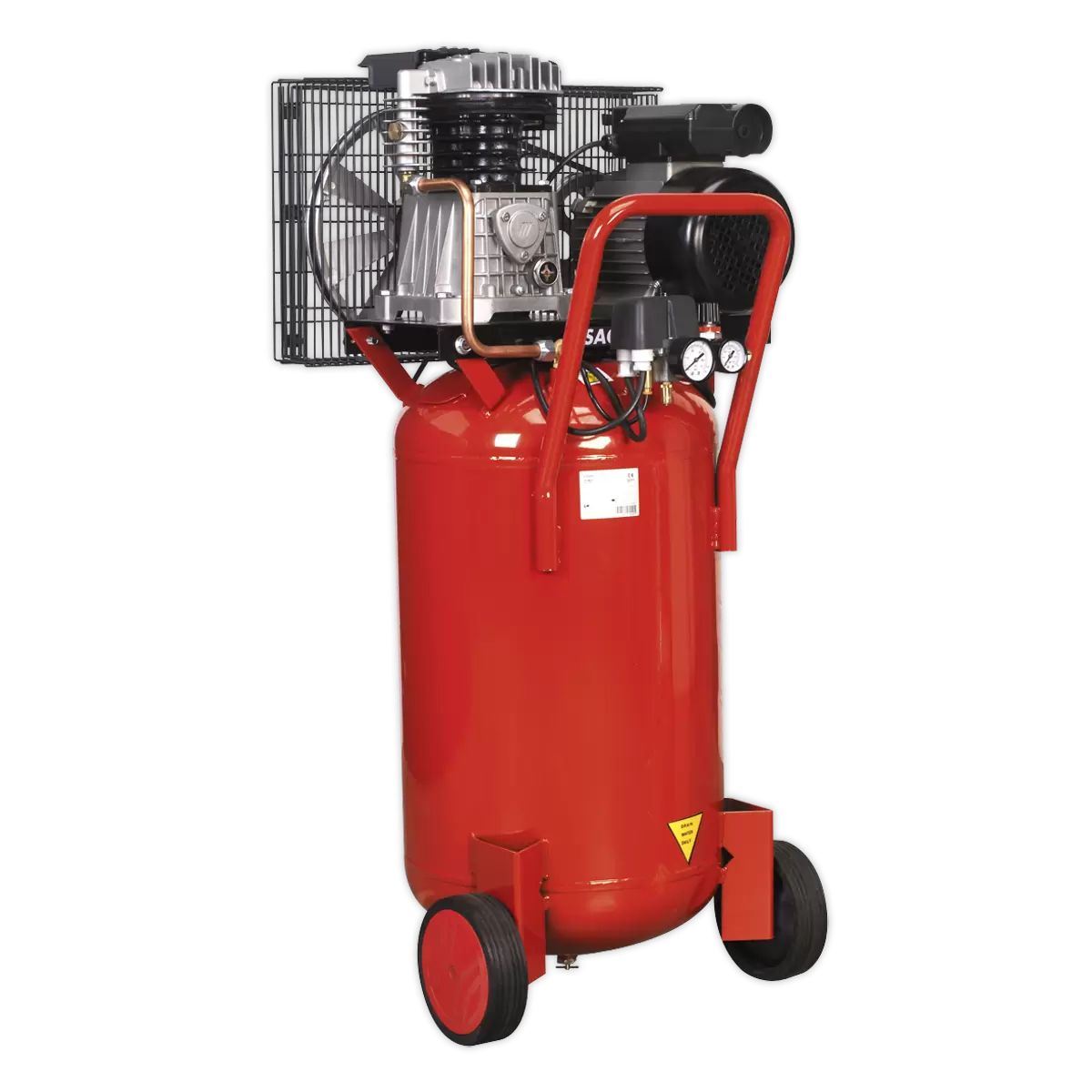

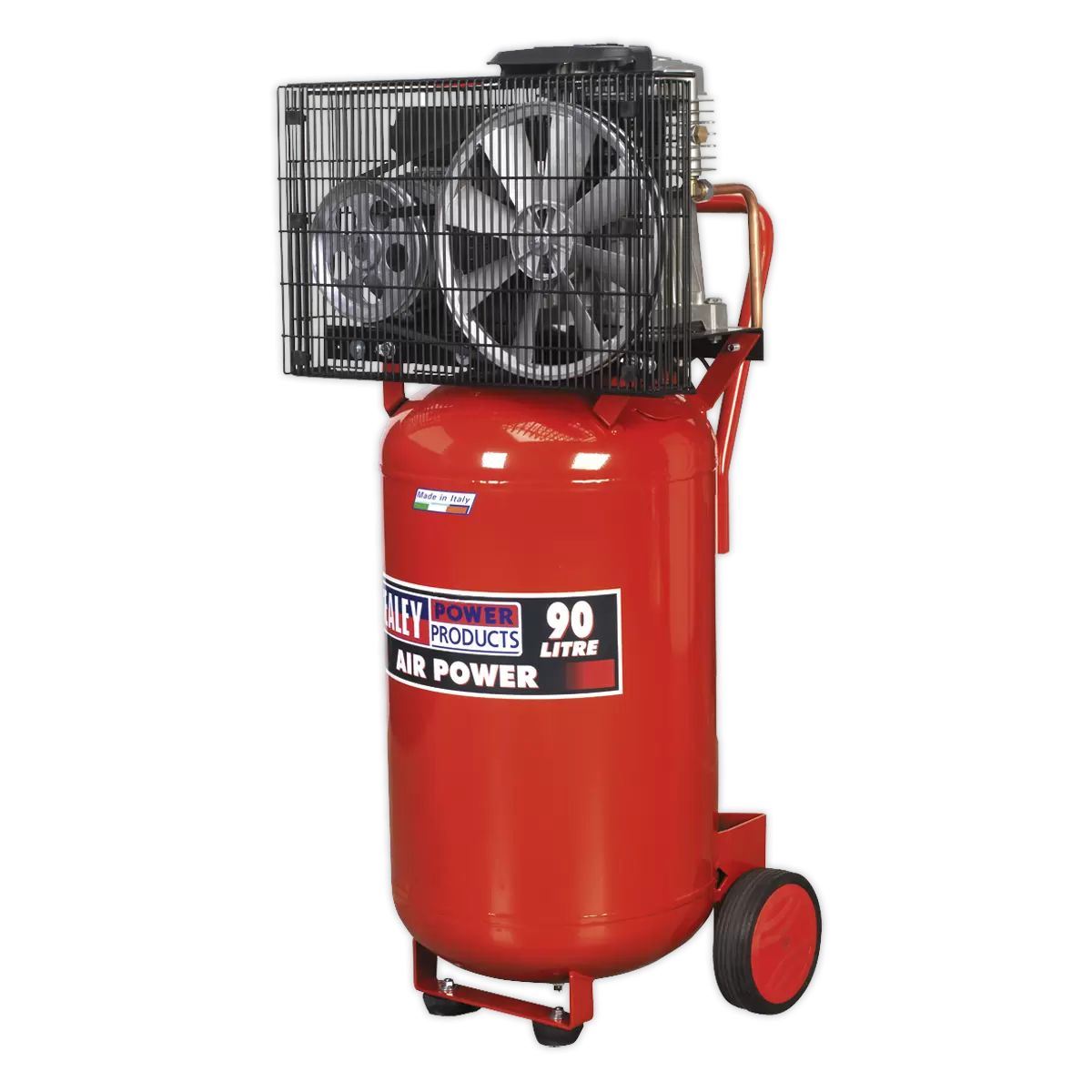

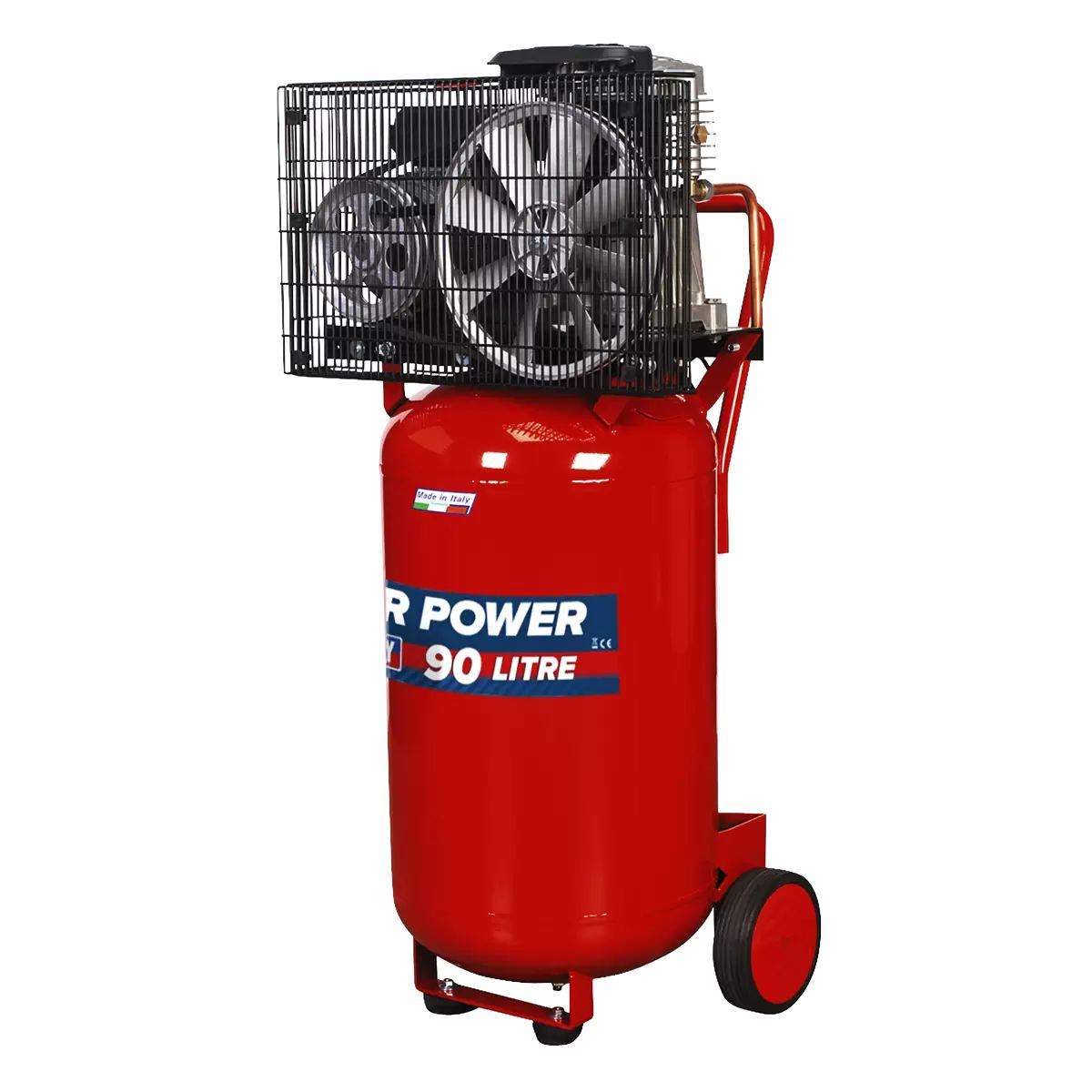

Sealey SAC1903B 90ltr Vertical Belt Drive Compressor 230V
Sealey SAC1903B 90ltr Vertical Belt Drive Compressor 230V

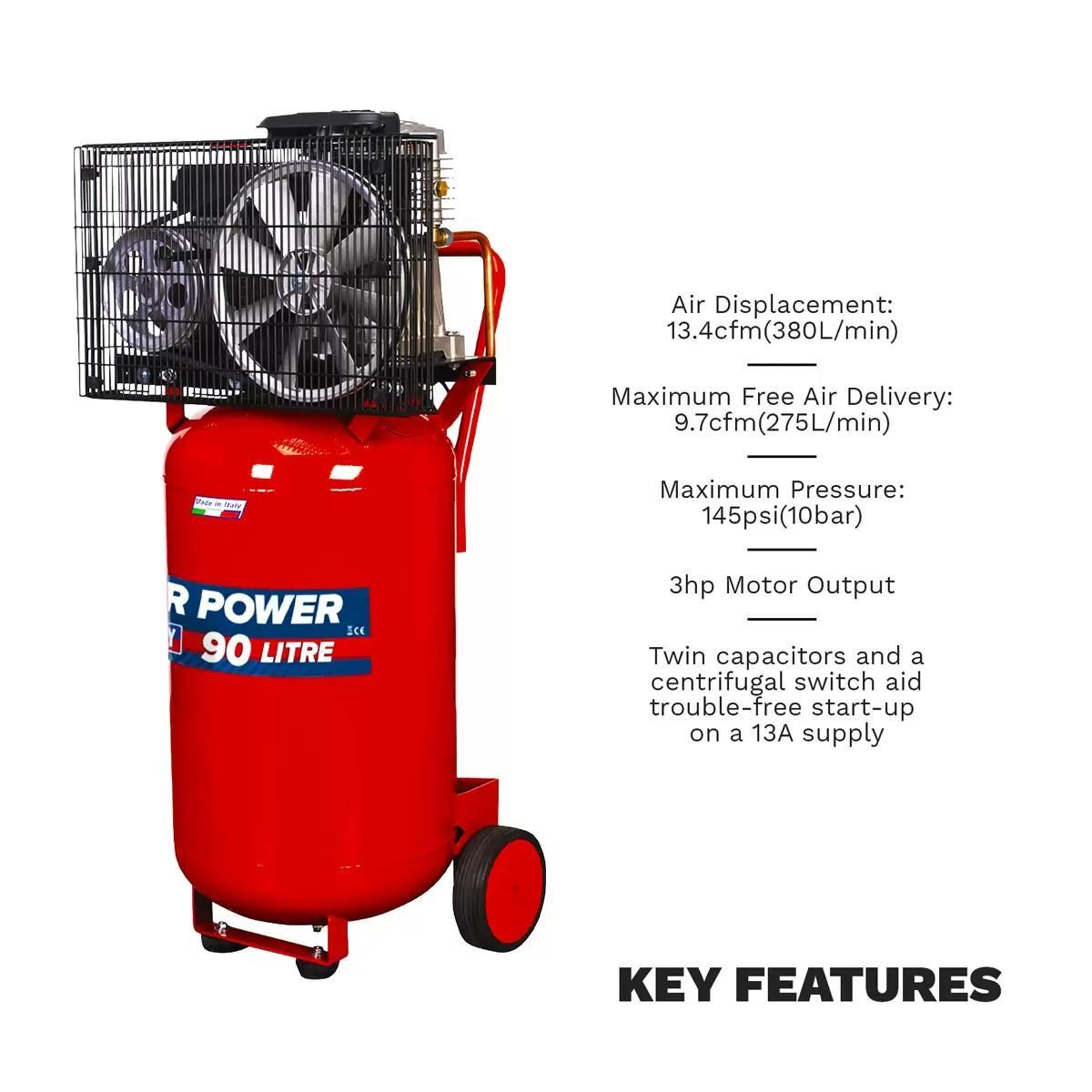

Features:
Air Displacement: 13.4cfm(380L/min).
Maximum Free Air Delivery: 9.7cfm(275L/min).
Maximum Pressure: 145psi(10bar).
Suitable for the professional workshop these units are fitted with a genuine 3hp motor.

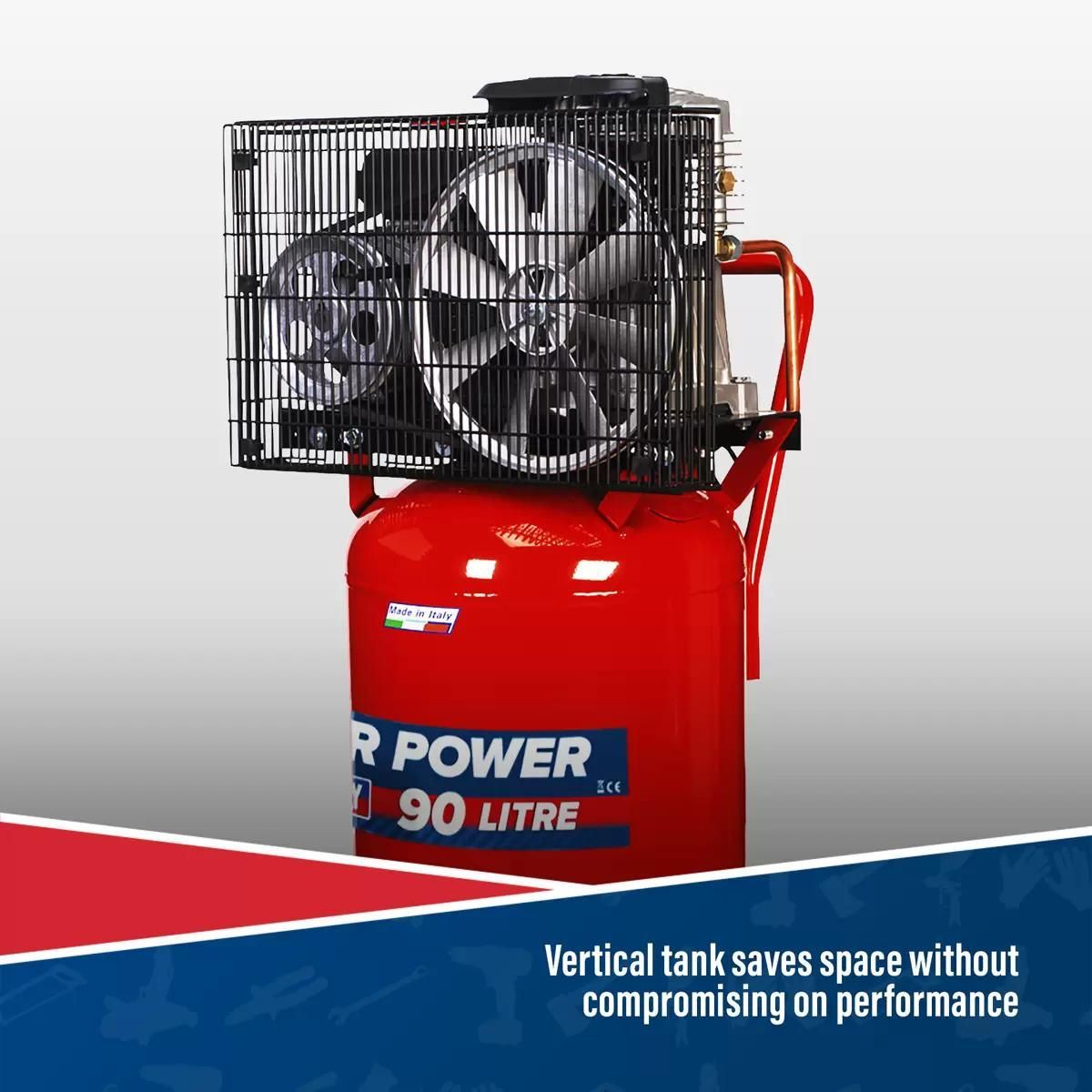

Vertical tank saves space without compromising on performance.
Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply.

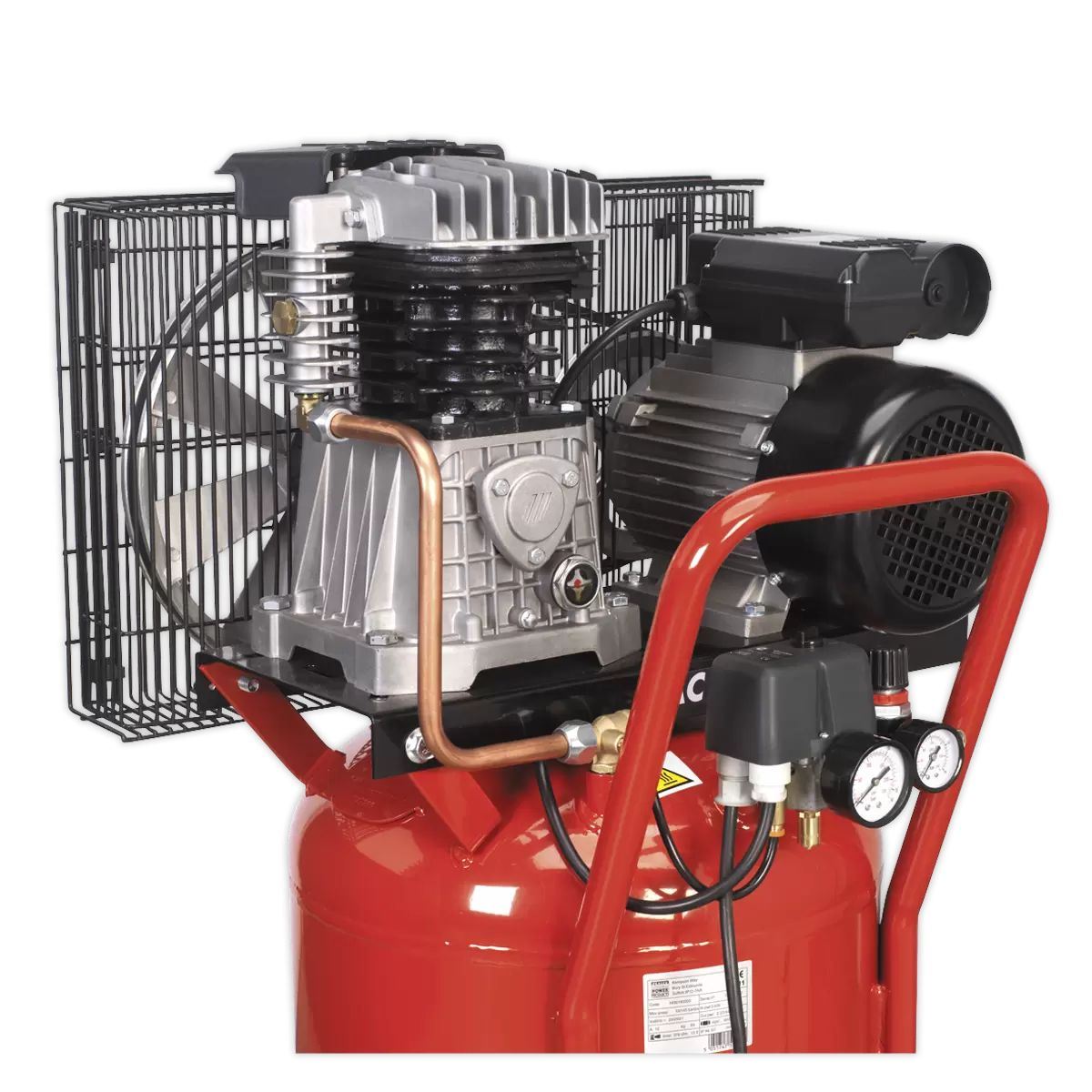

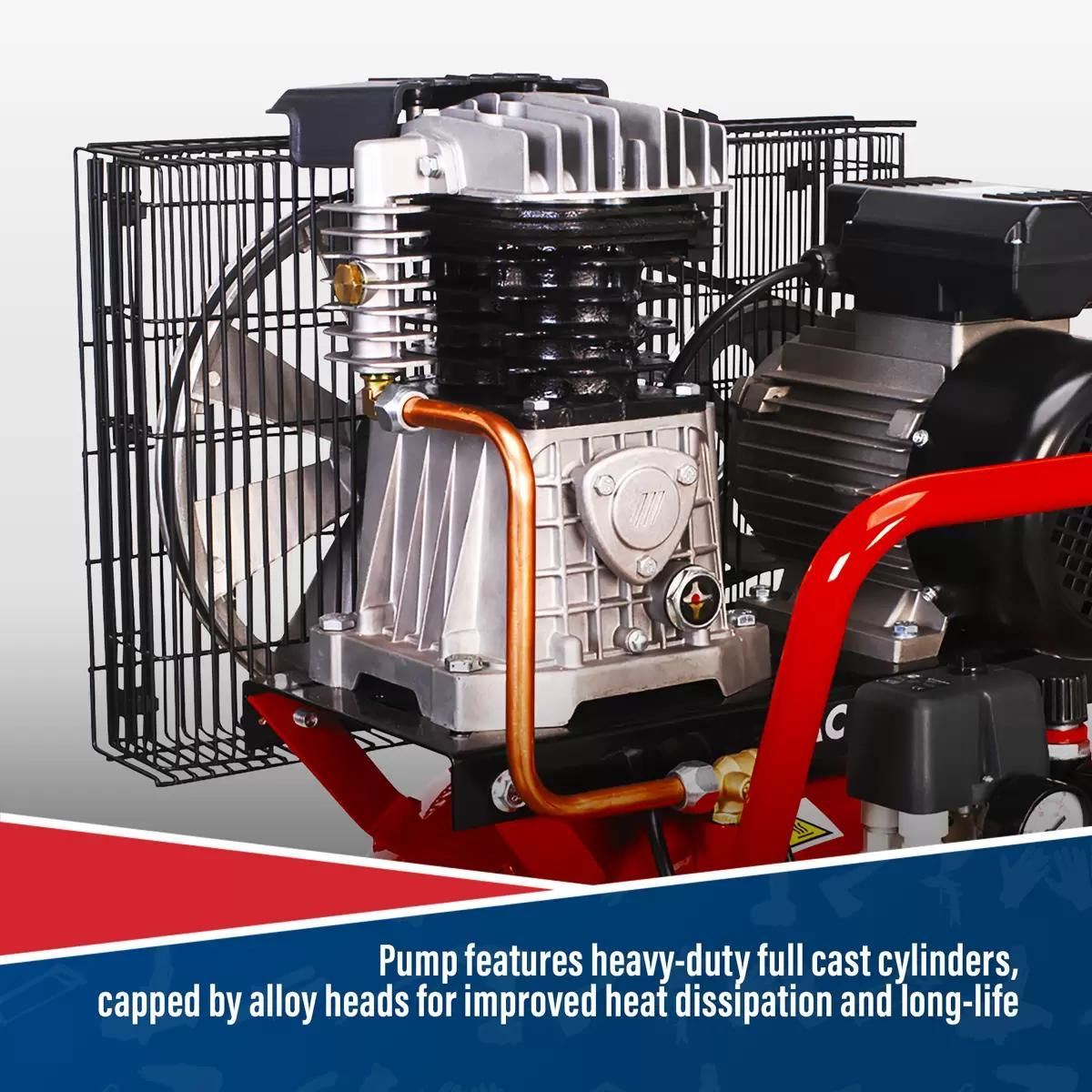

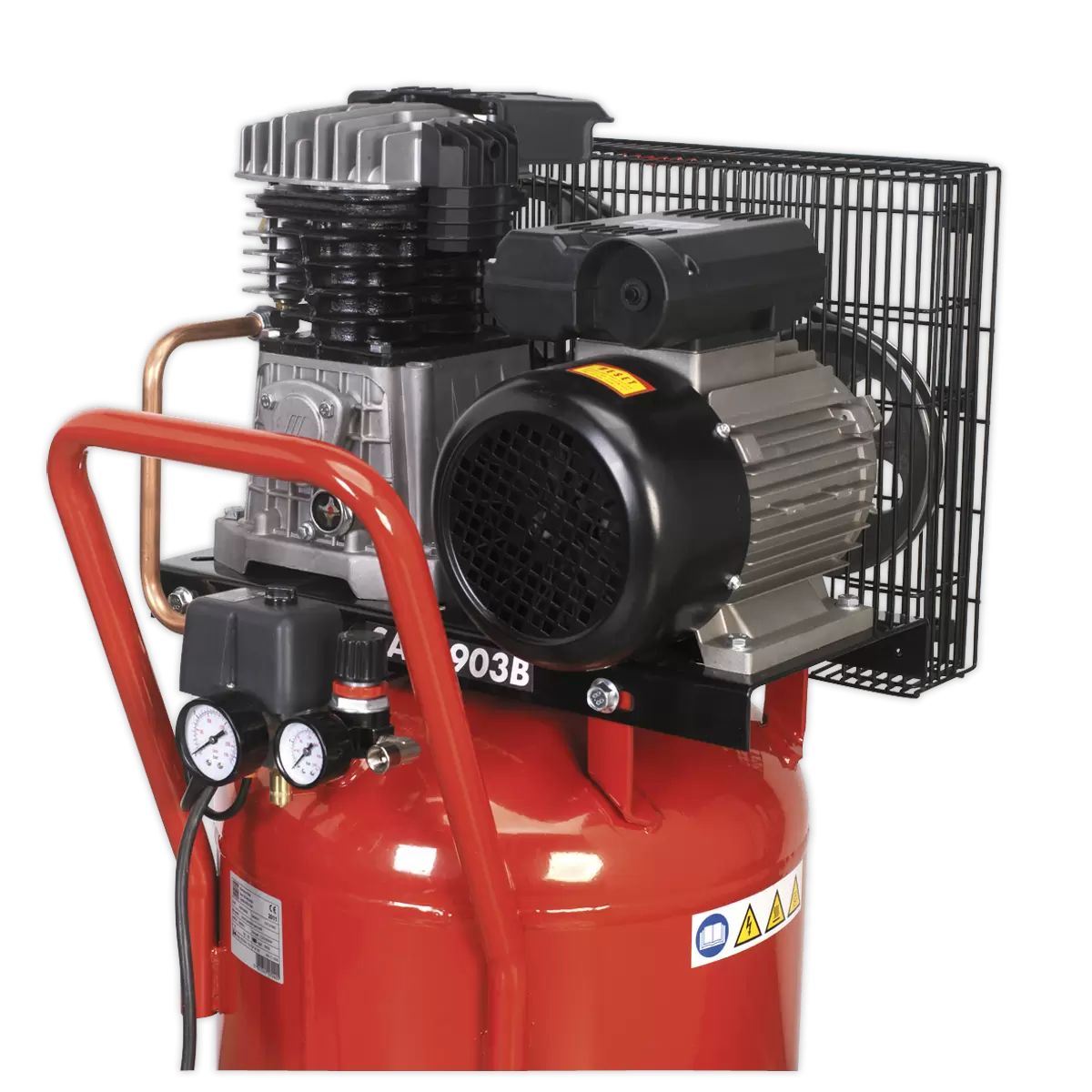

Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.

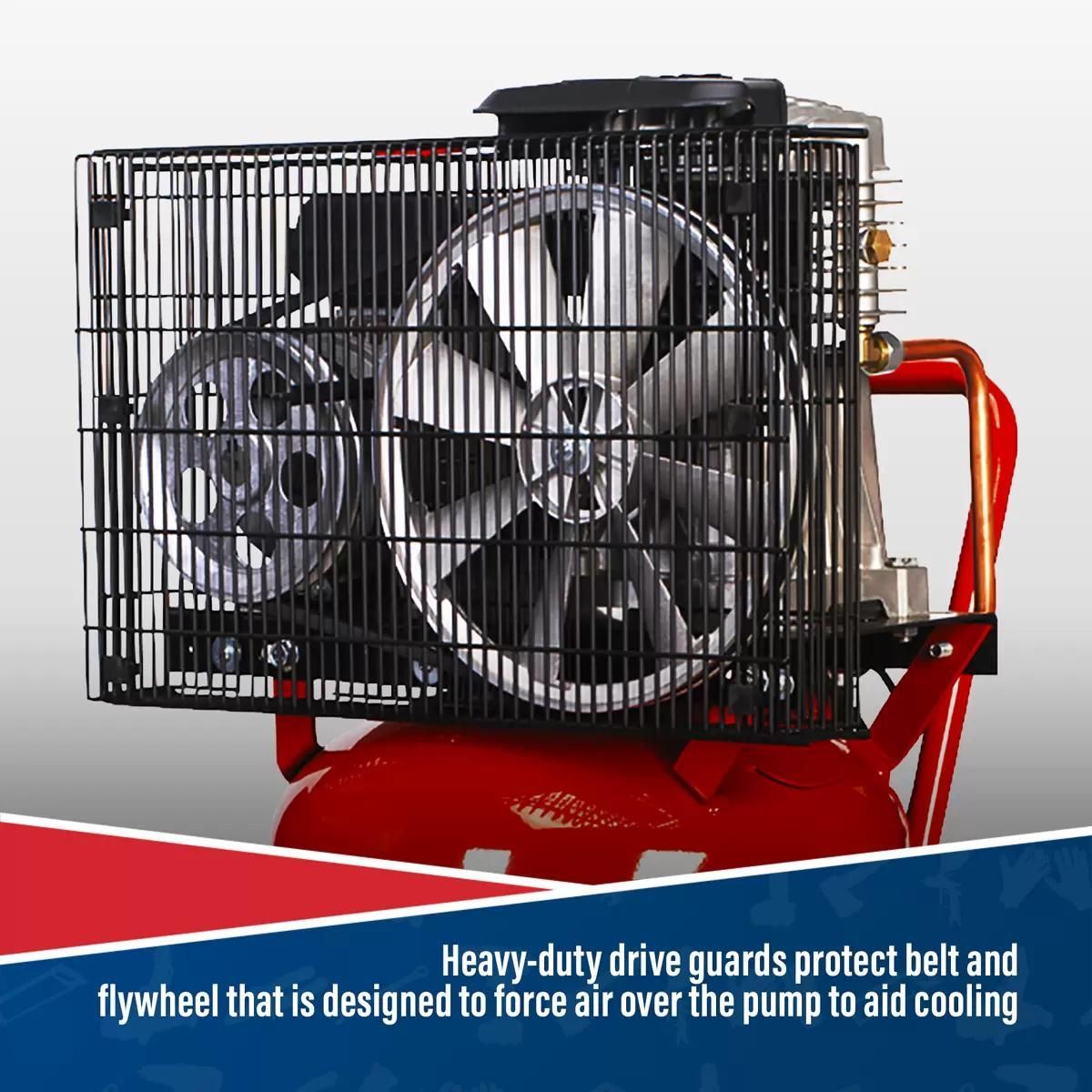

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
Specification:
Barcode: 5051747570405
Air Displacement cfm(L/min): 13.4(380)
Maximum Free Air Delivery cfm(L/min): 9.7(275)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 13A
Motor Output: 3hp
Nett Weight: 65kg
Outlet: Quick Release Coupling
Phase: 1ph
Receiver Capacity: 90L
Size (W x D x H): 525 x 495 x 1130mm
Speed: 1636rpm
Supply: 230V/13A
**images for illustrative purposes only – please refer to description and specification for full details of product**
