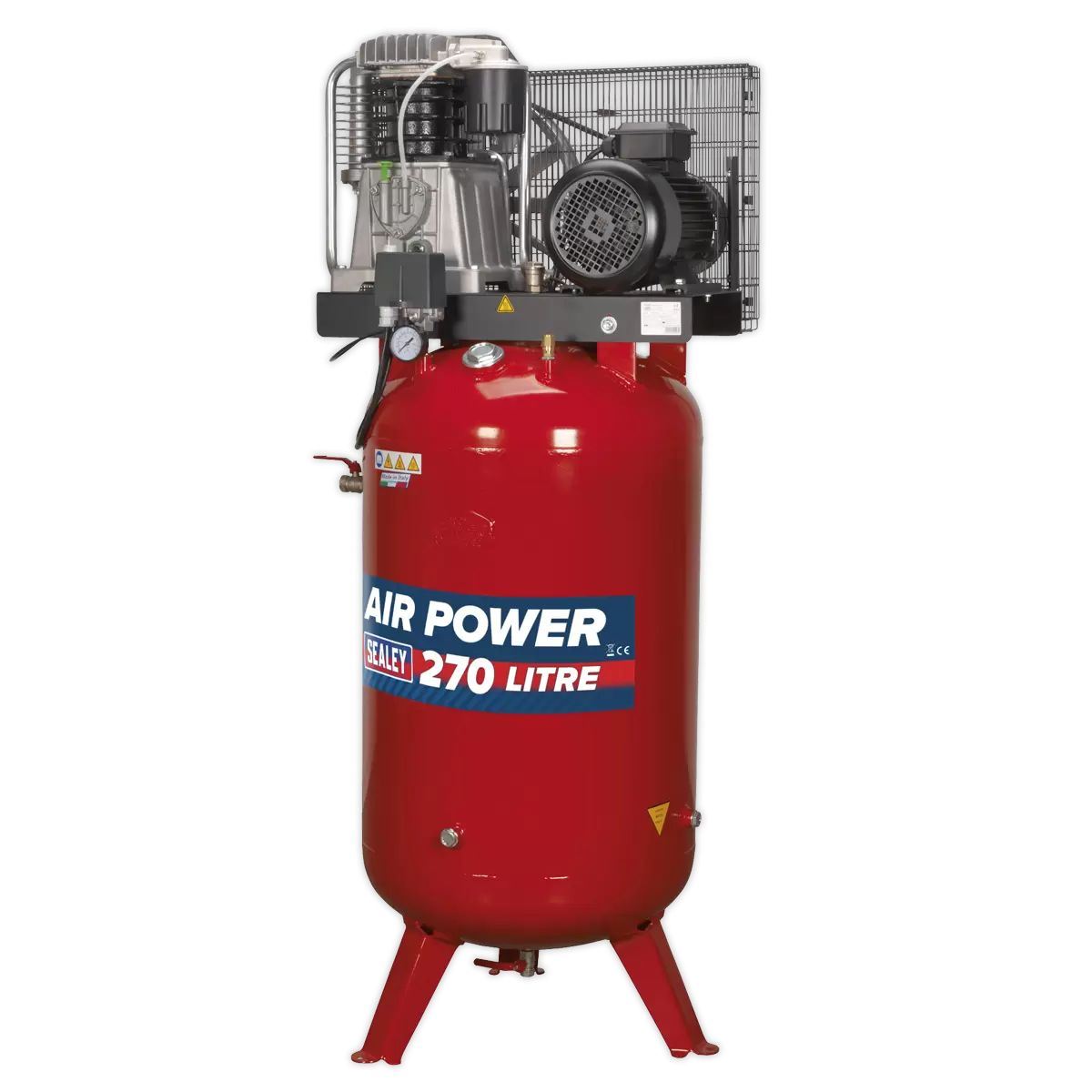

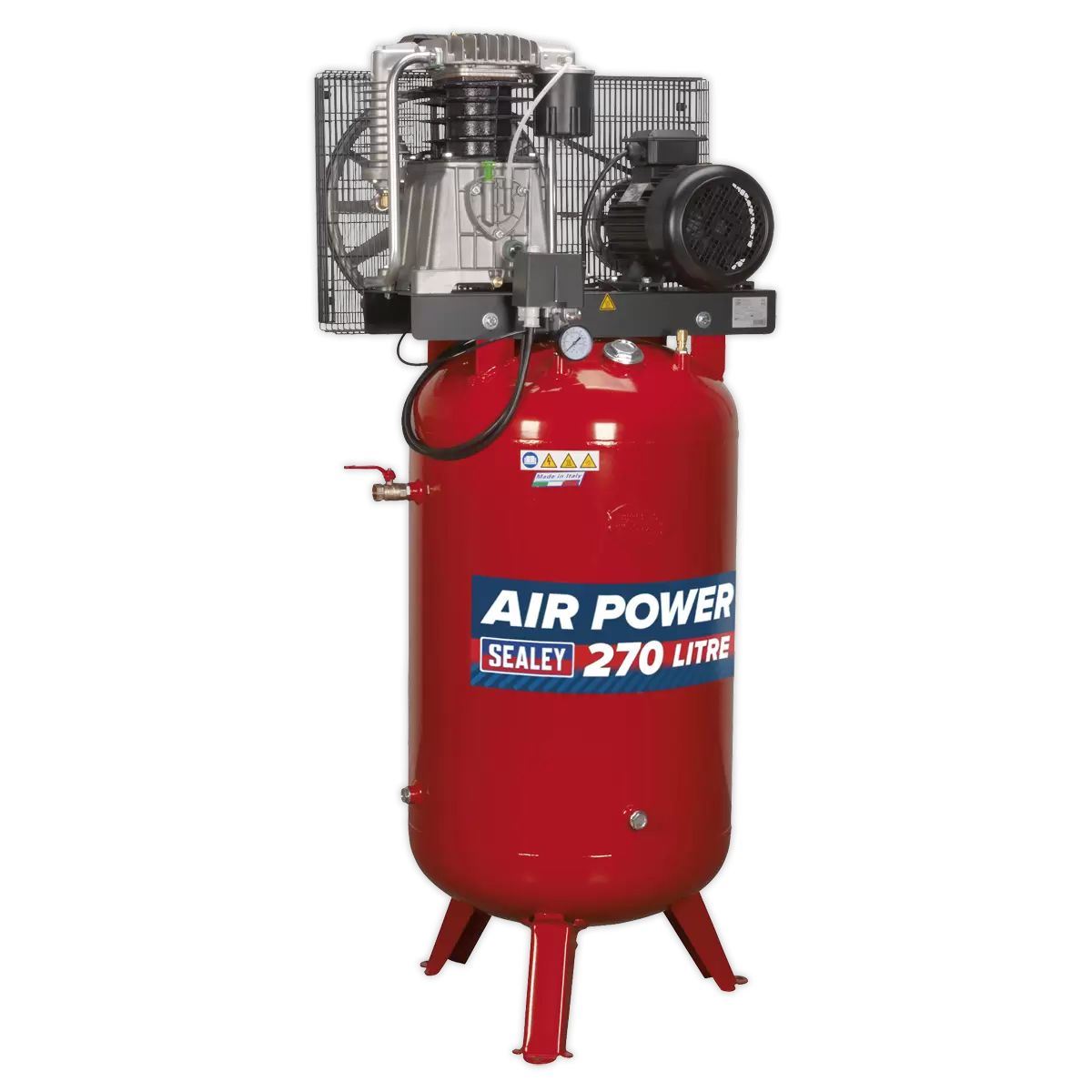

Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A
Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A

Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A

Regular price
£3,068.00
£2,556.66 Ex.VAT
£3,068.00 £2,556.66 Ex.VAT
Translation missing: en.products.product.price.unit_price_label
per
Delivery in 2-3 working days

Delivery in 2-3 working days

  • 3-phase compressor
  • 2-Stage pump system
  • 7.5hp motor
  • Heavy-duty full cast cylinders
- +

Sealey SACV52775B 270L Vertical Belt Drive Air Compressor 415V/32A

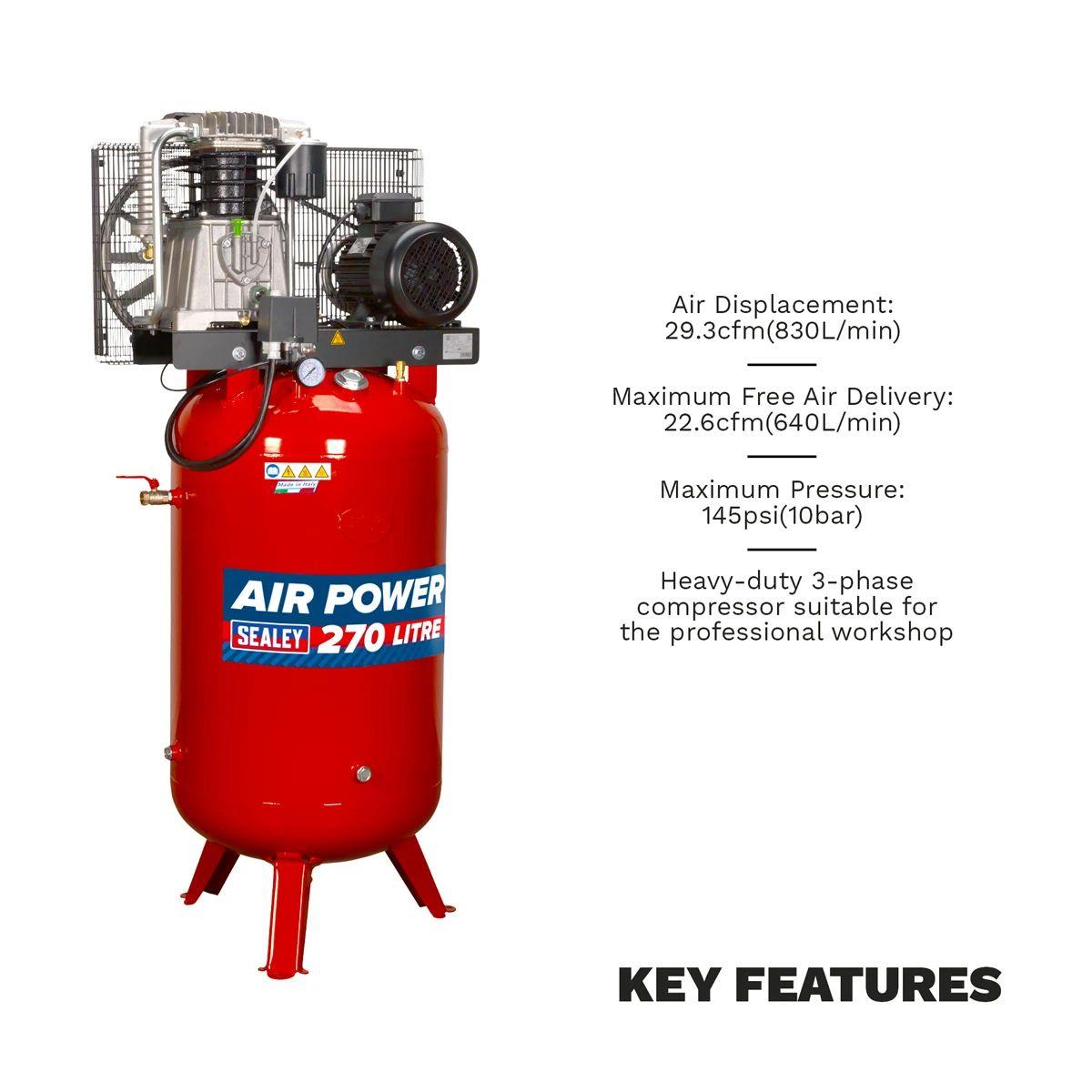

Features:

Air Displacement: 29.3cfm(830L/min).
Maximum Free Air Delivery: 22.6cfm(640L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty 3-phase compressor suitable for the professional workshop.

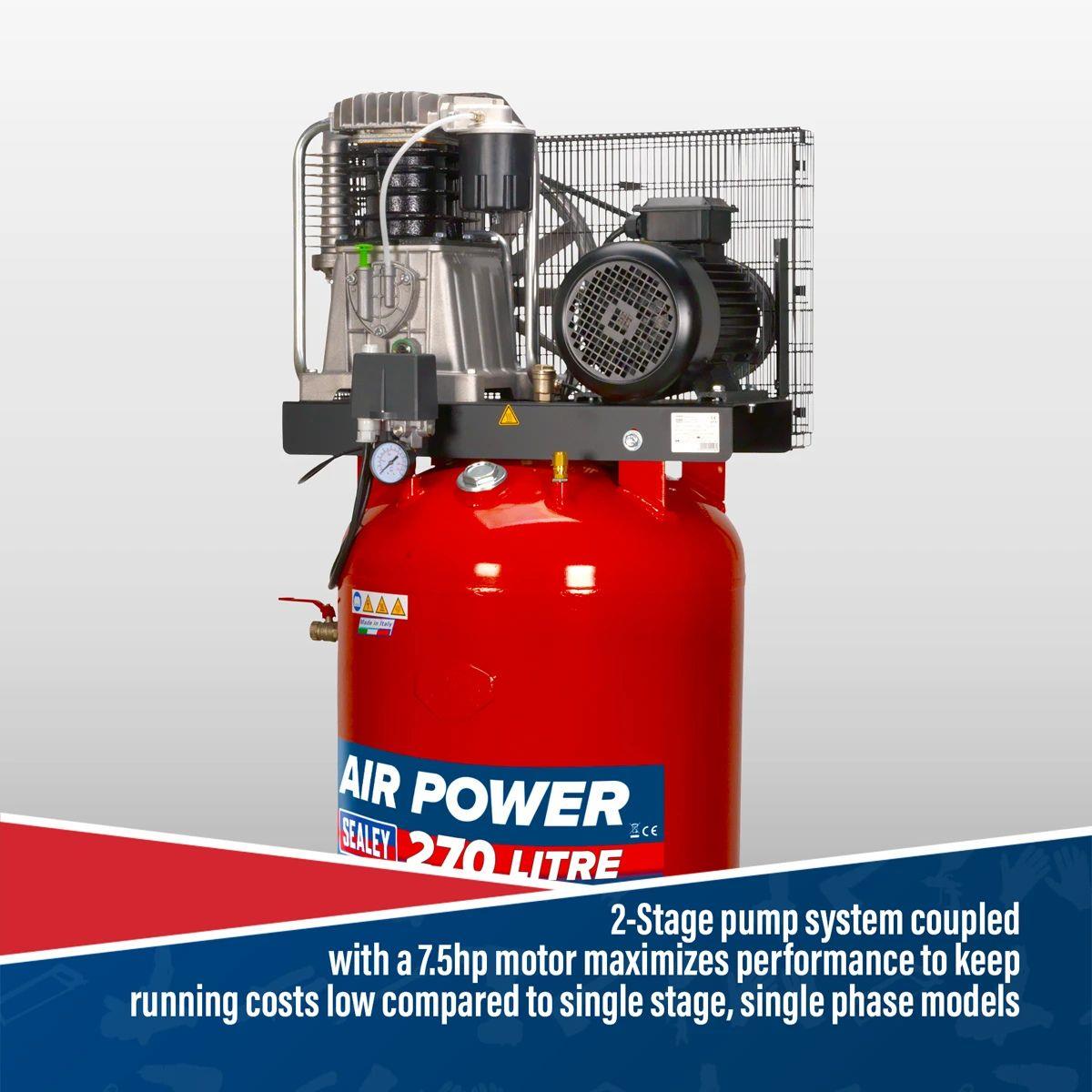

2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.

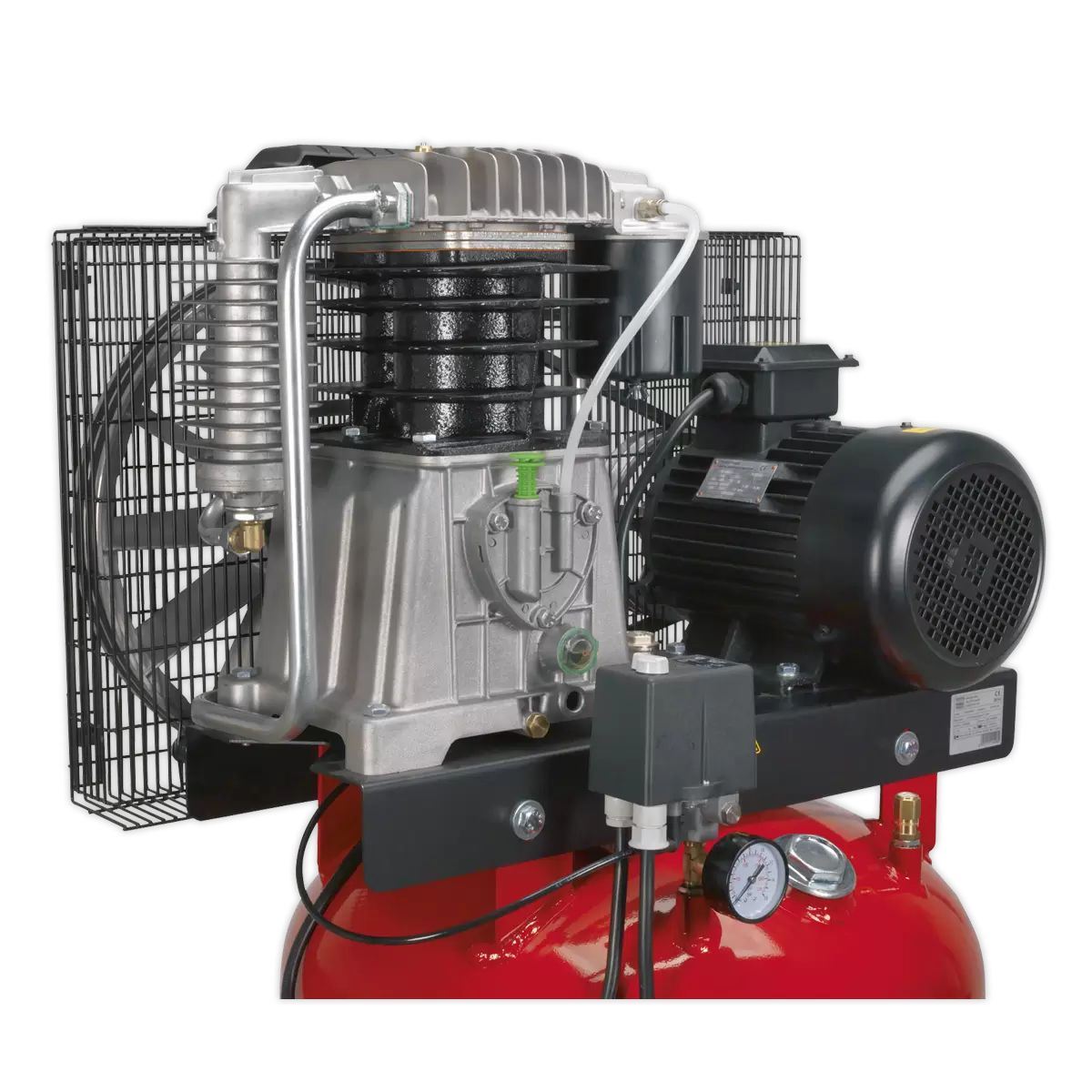

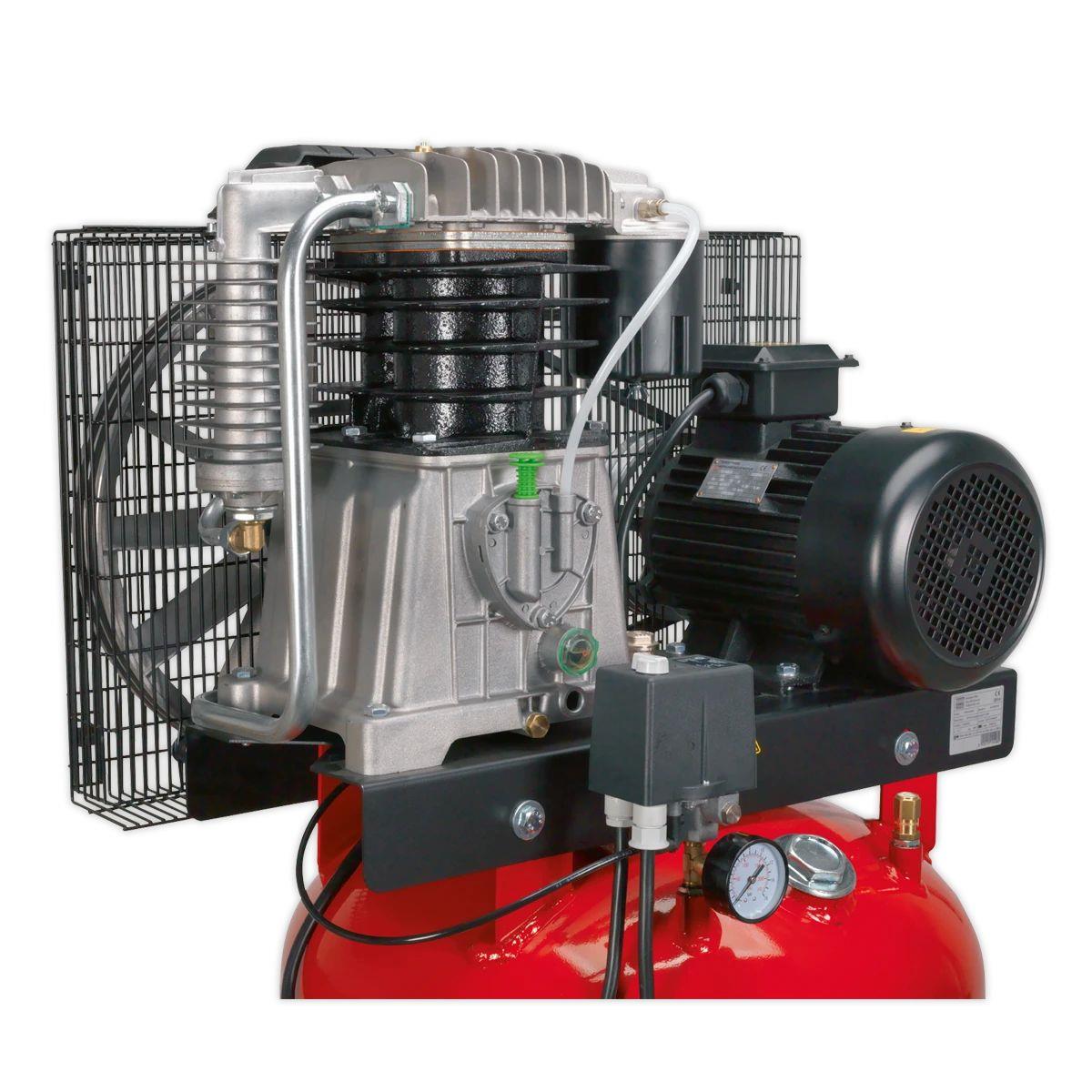

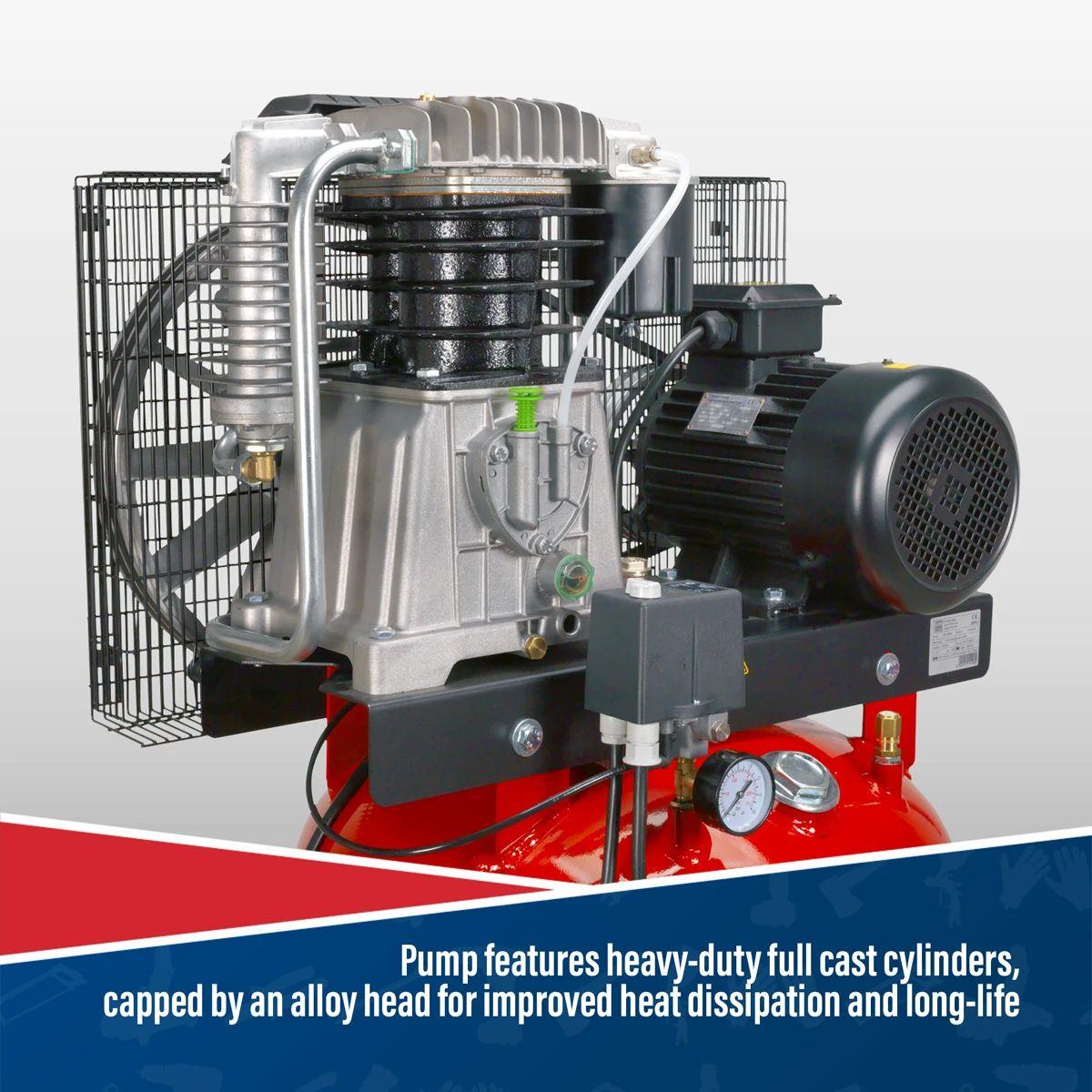

Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

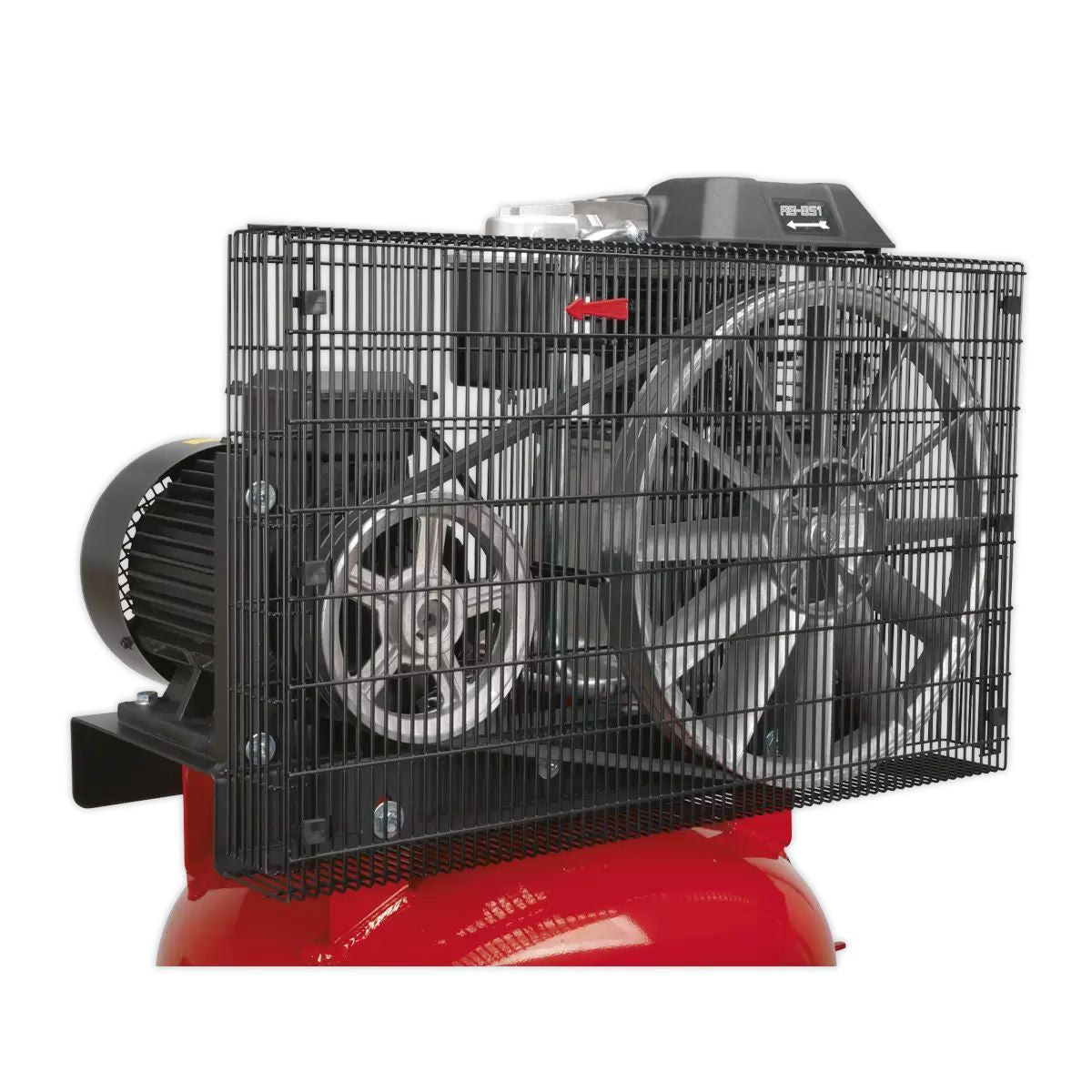

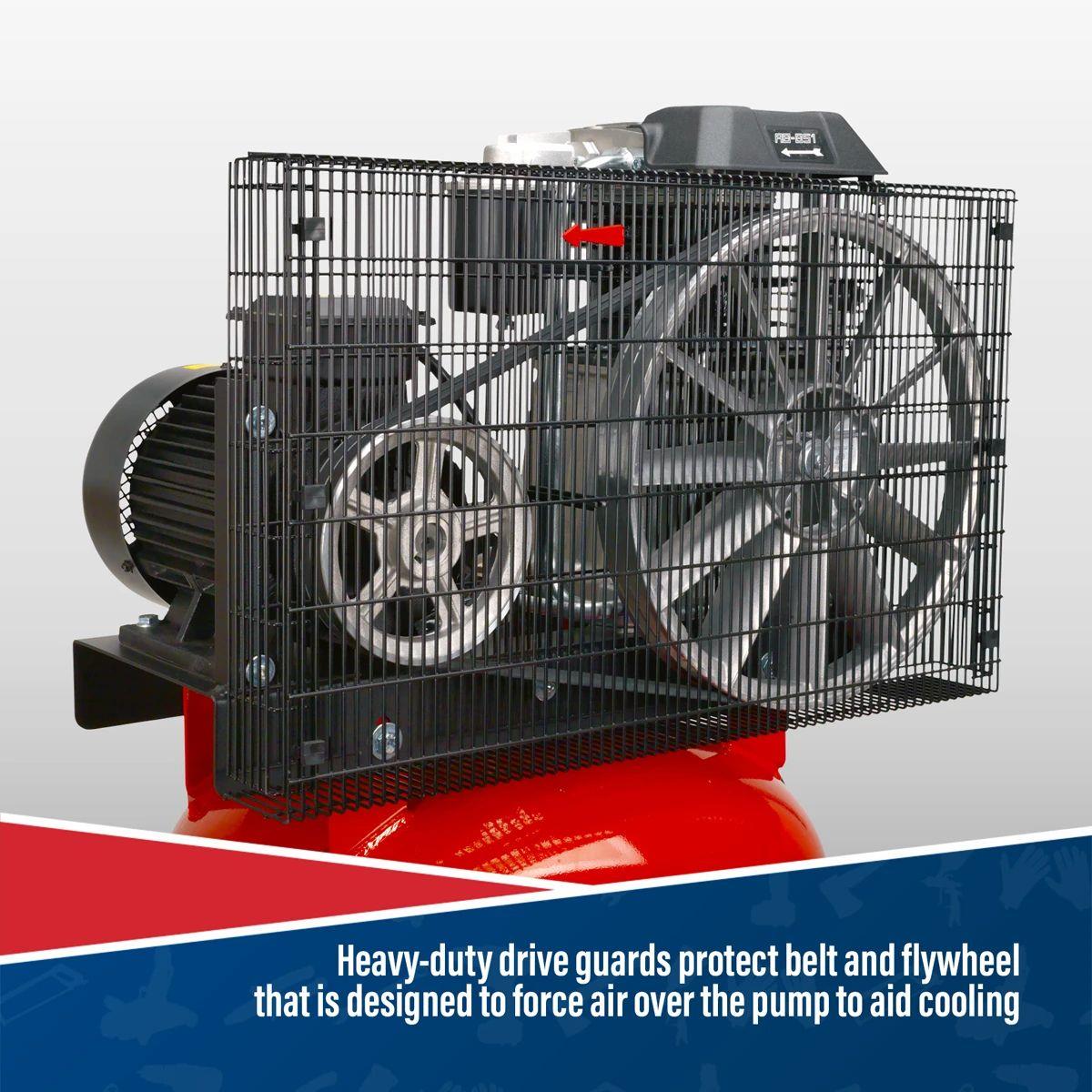

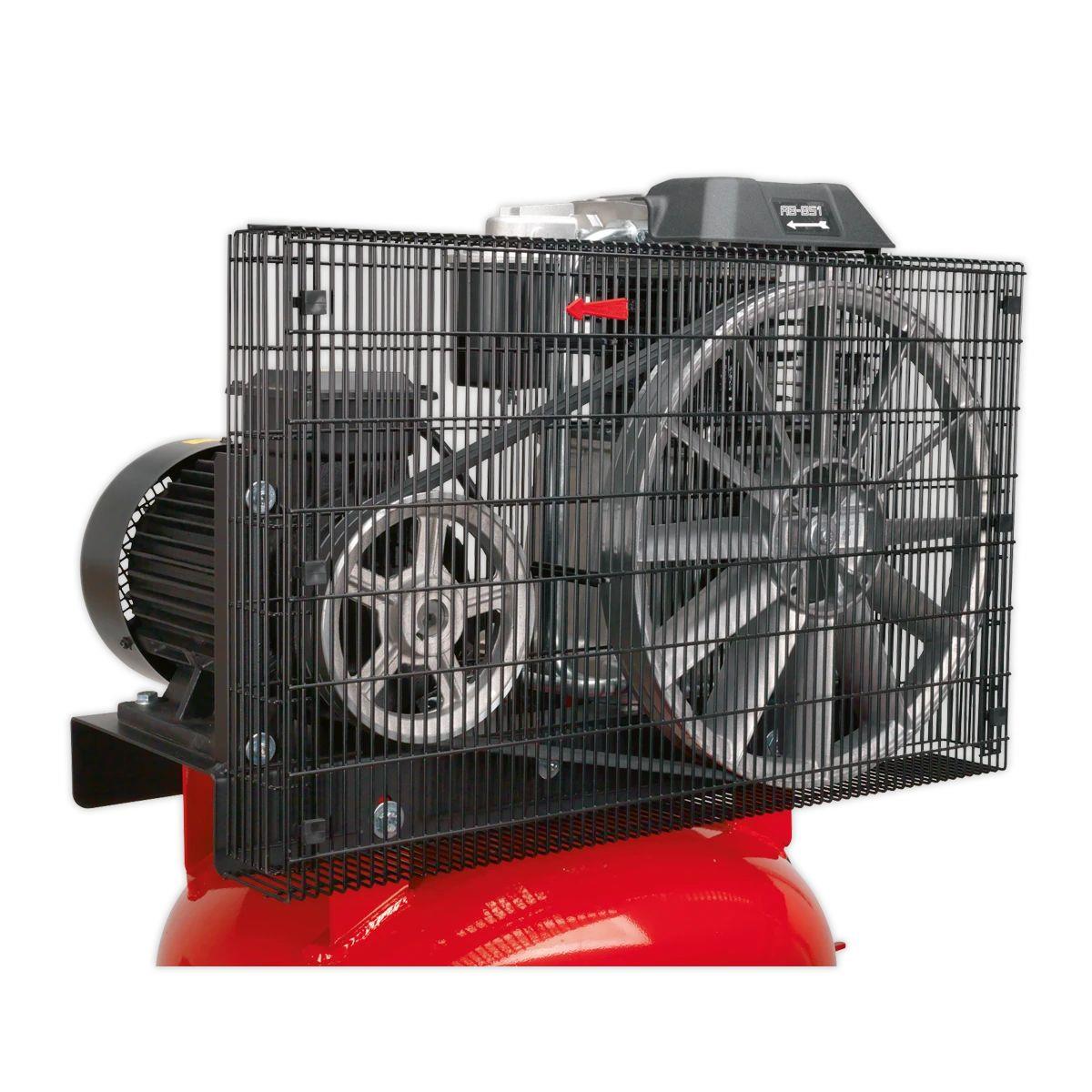

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

Part No: SACV52775B
Barcode: 5051747982154
Air Displacement cfm(L/min): 29.3(830)
Brand: Sealey
Maximum Free Air Delivery cfm(L/min): 22.6(640)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 32A
Motor Output: 7.5hp
Oil Capacity: 1.57L
Nett Weight: 200kg
Outlet: 3/4"BSP Female Tap
Phase: 3ph
Receiver Capacity: 270L
Size (W x D x H): 770 x 620 x 1775mm
Speed: 1280rpm
Supply: 415V/32A

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
