Sealey SC10LR Crane 1tonne Long Reach Extendable Legs
- Regular price
-
£418.00
£348.33 Ex.VAT -
-
£418.00 £348.33 Ex.VAT
- Translation missing: en.products.product.price.unit_price_label
- per
Delivery in 2-3 working days

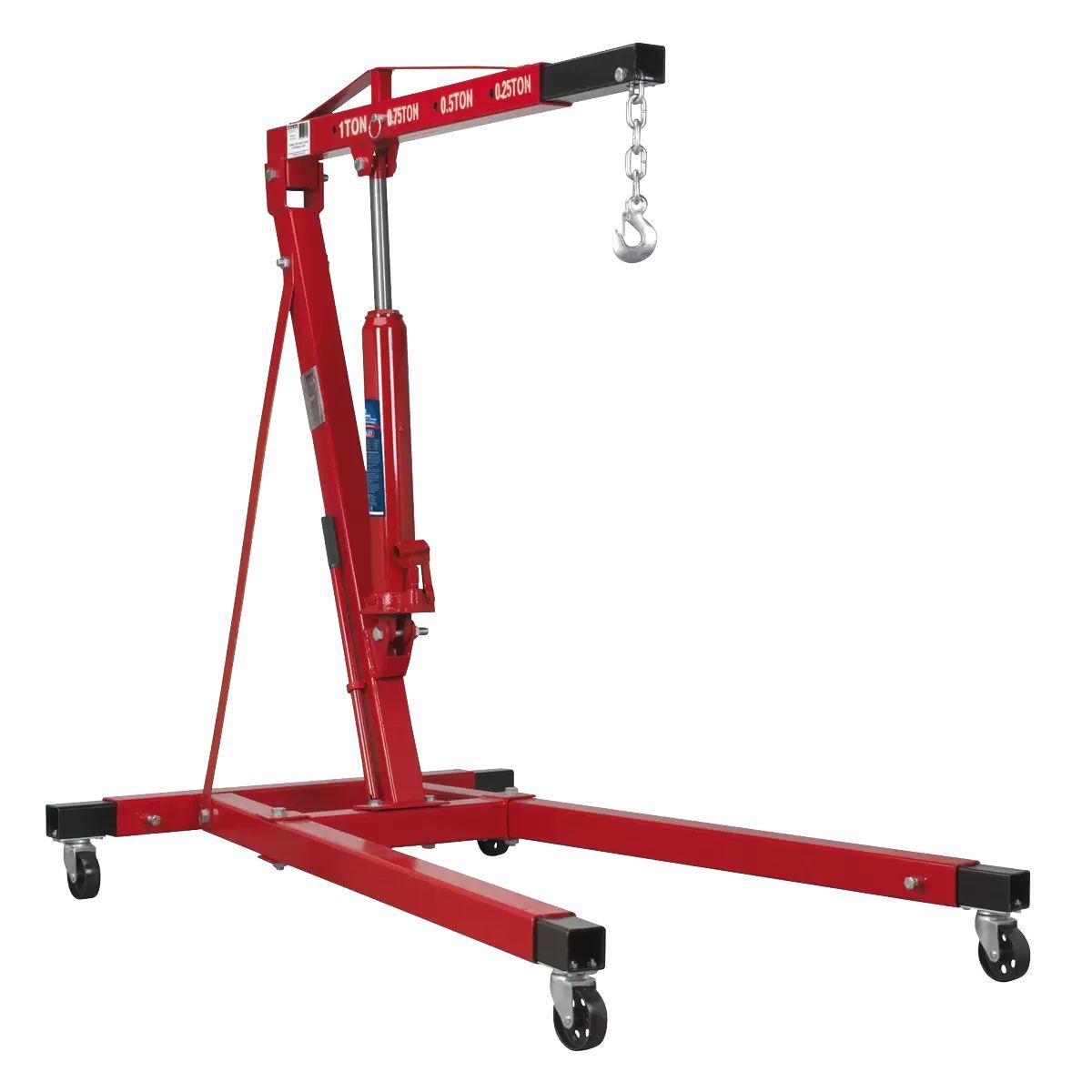

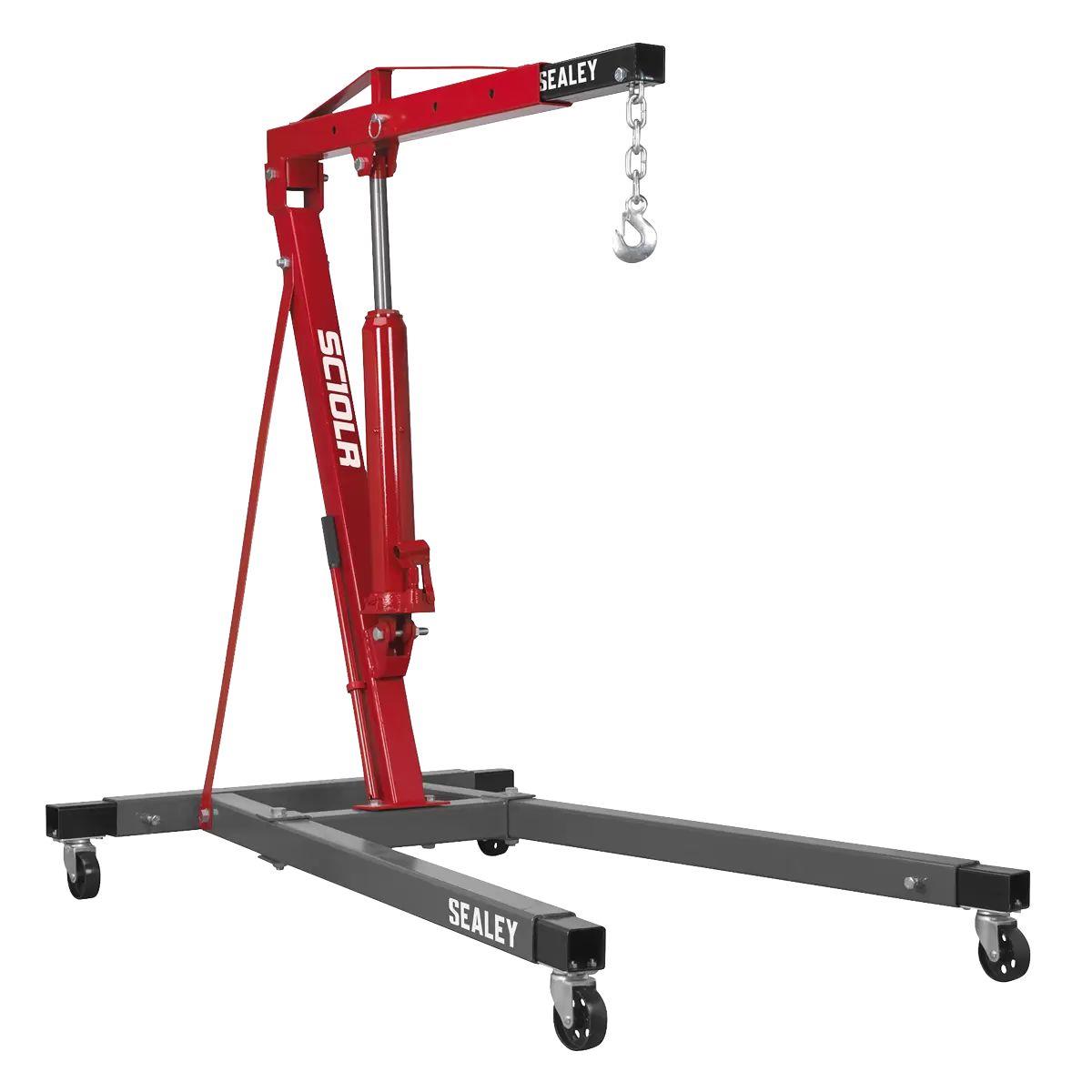

Sealey SC10LR Crane 1tonne Long Reach Extendable Legs
Features:
Delivered in knock-down form for reduced freight cost.

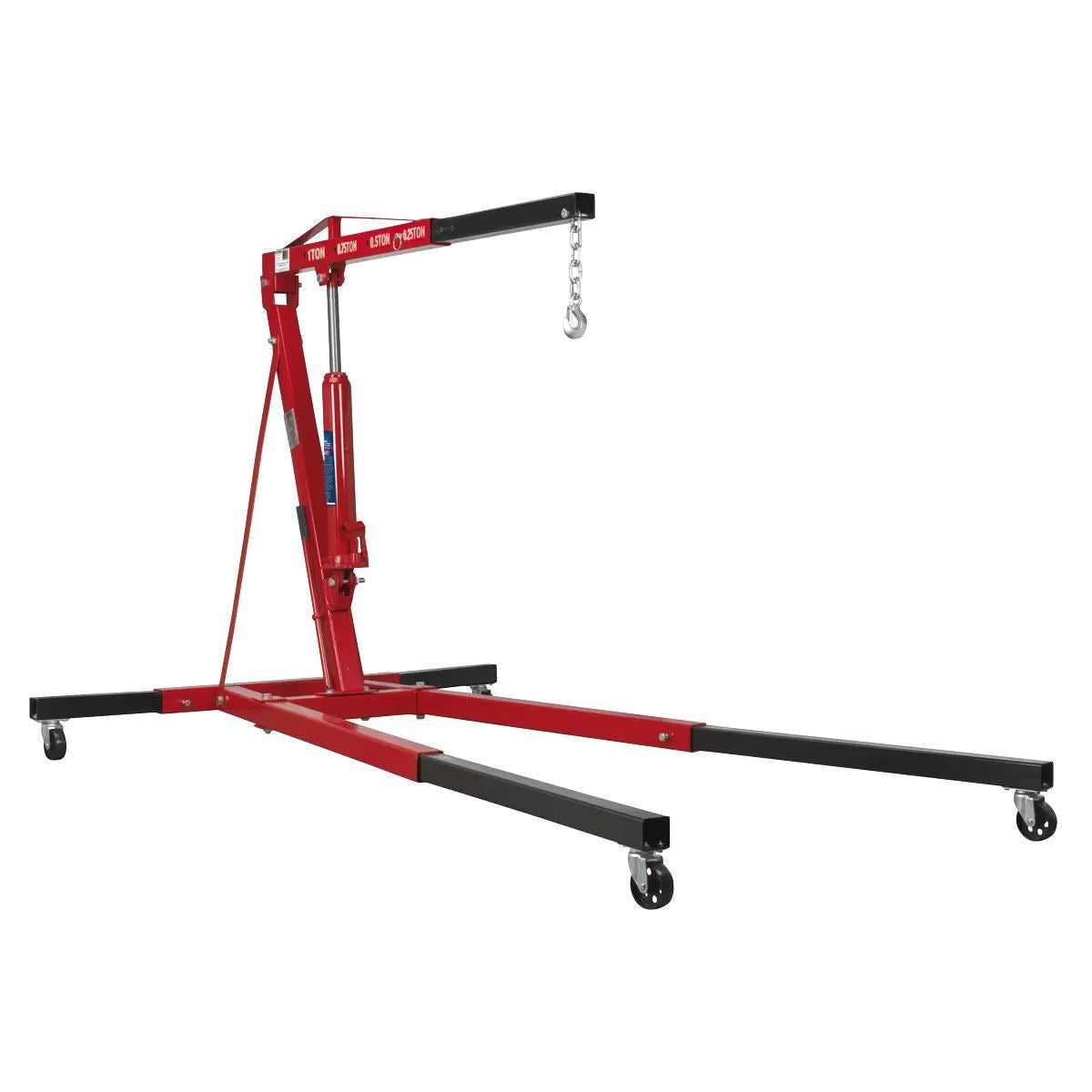

Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm.
Side pump access with removable handle.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
Part no: SC10LR
Barcode: 5054630207983
Height Jib Down: 1446mm
Height of Frame: 180mm
Length Legs Extended: 1600mm
Length of Jib Position 1: 937mm
Length of Jib Position 2: 1107mm
Length of Jib Position 3: 1277mm
Length of Jib Position 4: 1447mm
Length of Jib Position 5: n/a
Length: 1450mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1750mm
Max. Lift Ht at Jib Position 2: 1850mm
Max. Lift Ht at Jib Position 3: 1950mm
Max. Lift Ht at Jib Position 4: 2050mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 81.5kg
Rear Width: 860/1160mm
Width Front Frame: 690-720mm
Width Inside Front Frame: 381/605mm
Barcode: 5054630207983
Height Jib Down: 1446mm
Height of Frame: 180mm
Length Legs Extended: 1600mm
Length of Jib Position 1: 937mm
Length of Jib Position 2: 1107mm
Length of Jib Position 3: 1277mm
Length of Jib Position 4: 1447mm
Length of Jib Position 5: n/a
Length: 1450mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1750mm
Max. Lift Ht at Jib Position 2: 1850mm
Max. Lift Ht at Jib Position 3: 1950mm
Max. Lift Ht at Jib Position 4: 2050mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 81.5kg
Rear Width: 860/1160mm
Width Front Frame: 690-720mm
Width Inside Front Frame: 381/605mm
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
