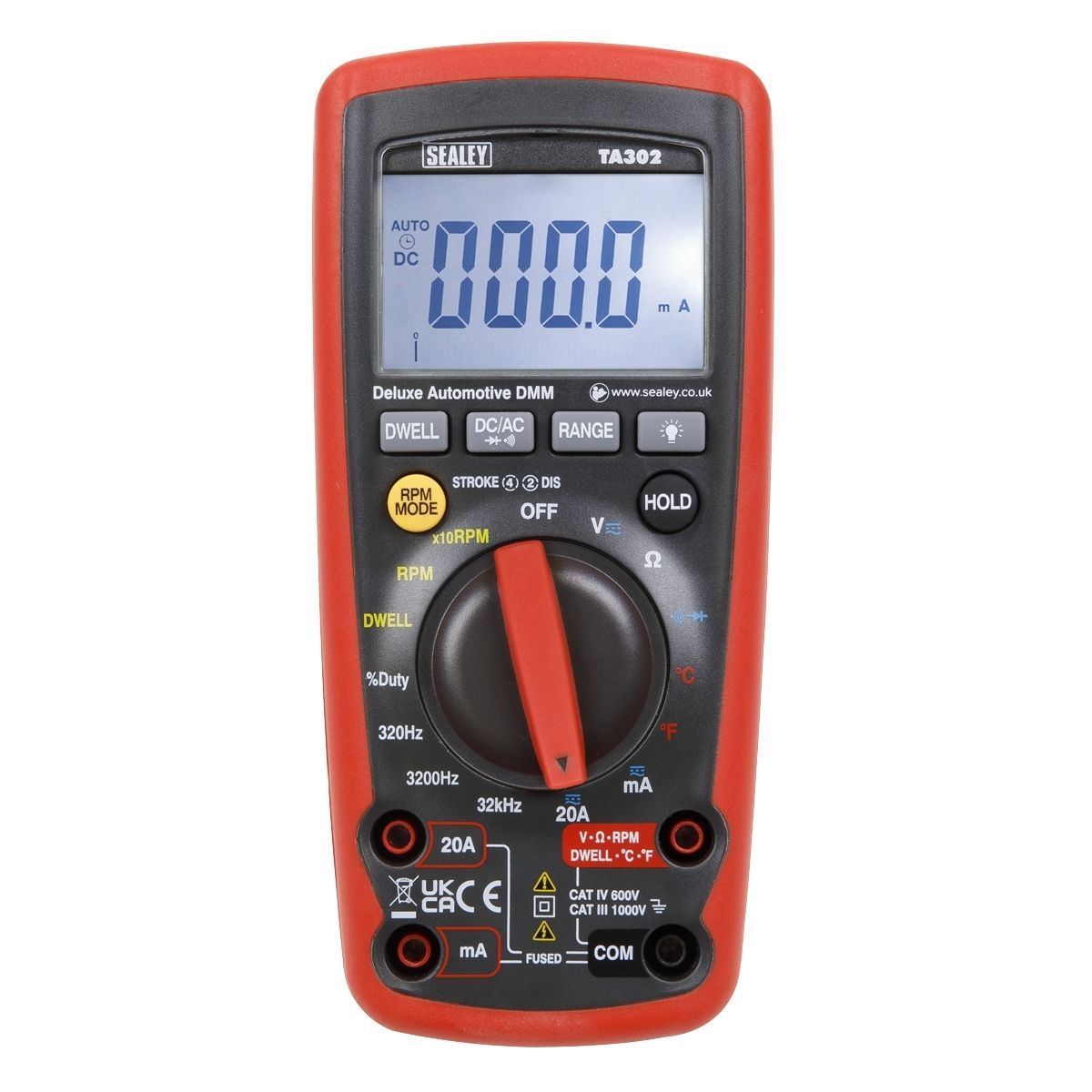

Sealey TA302 Digital Automotive Analyser 12-Function with Inductive Coupler

Features:

12-Function, auto-ranging automotive diagnostic multimeter.
Combination digital/bar graph display gives accurate indication of component outputs.
Large, easy-to-read high contrast display with bright, white back light.
Workshop-tough, durable case with integral stand.
Reads standard automotive parameters including duty cycle.
Features auto-ranging and data-hold functions with overload protection on all ranges.

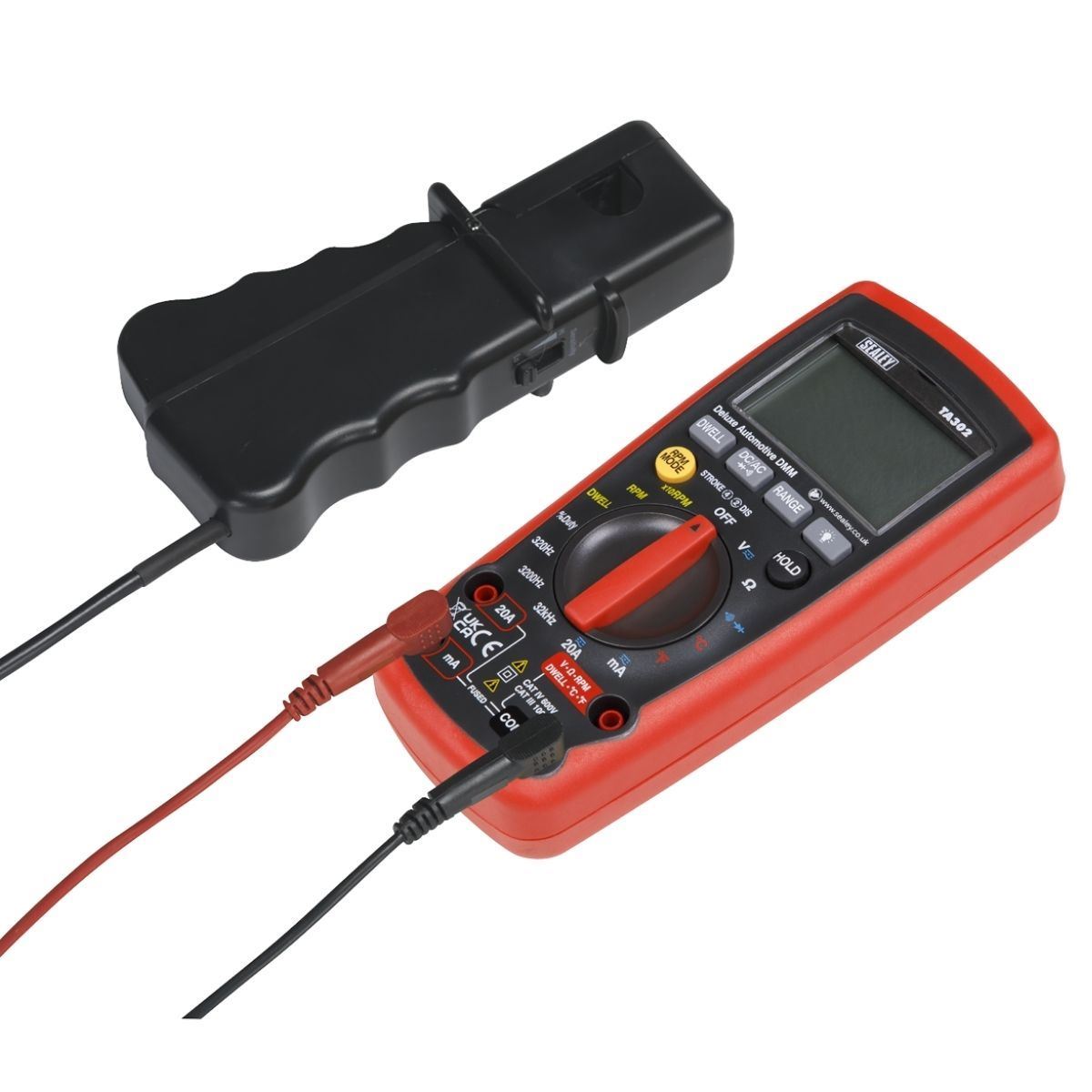

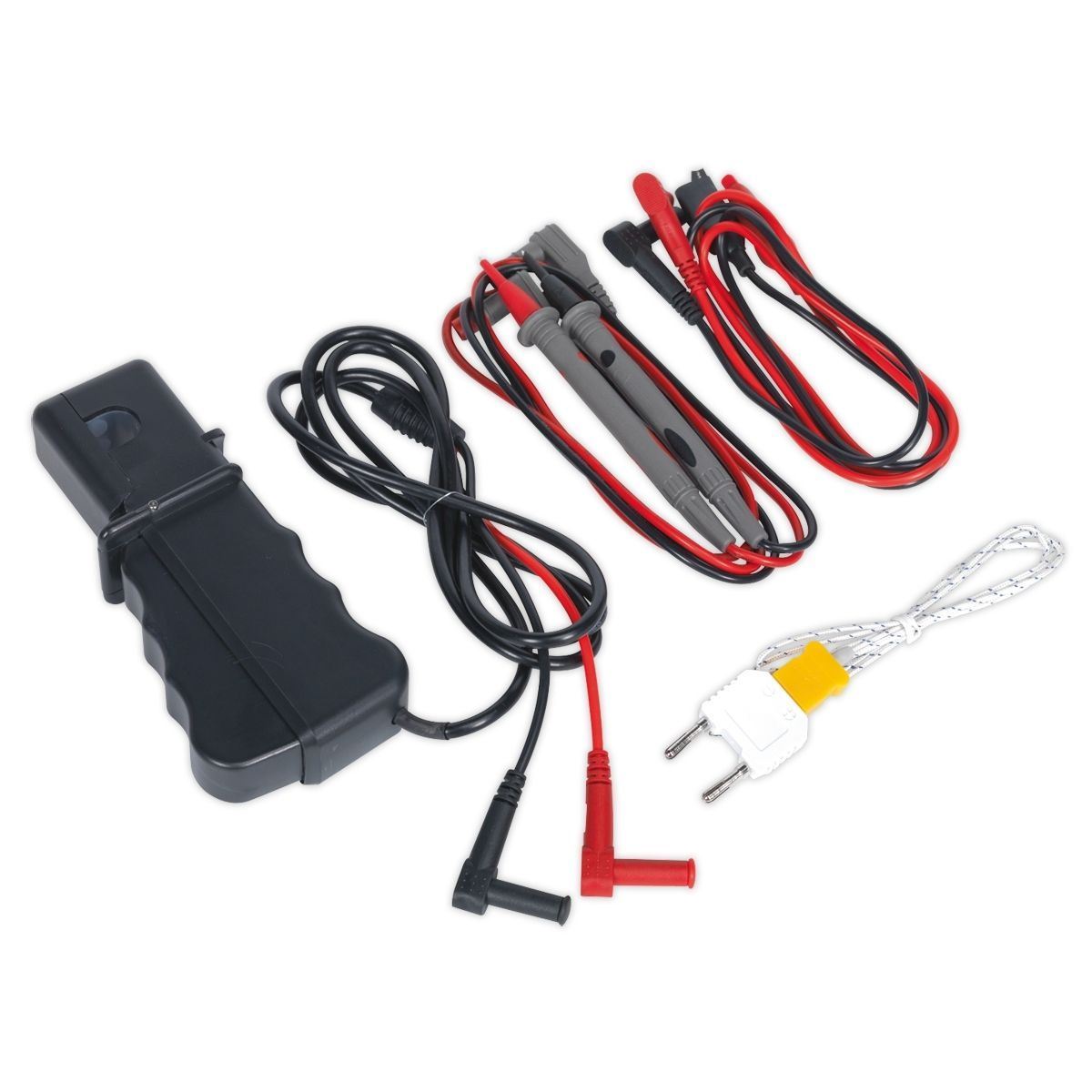

Supplied with inductive coupler, test probes and thermocouple.

Specification:

Part no: TA302
Barcode no. 5051747600669
Brand: Sealey
Nett Weight: 366g
Tach (rpm): 4-8cyl, 2 & 4-Stroke 600-4000 (x1)rpm, 600-12000 (x10)rpm
Dwell: 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage: 3.2V, 32V, 320V, 600V (Auto-Ranging)
DC Voltage: 320mV, 3.2V, 32V, 320V, 600V (Auto-Ranging)
AC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
DC Current: 320µA, 3200µA, 32mA, 320mA, 10A (Auto-Ranging)
Capacitance: No
Frequency: 320Hz, 3200Hz, 32kHz (Auto-Ranging)
Duty Cycle: 0.1-99.9%
Pulse Width: No
Resistance: 320Ω, 3.2kΩ, 32kΩ, 320kΩ, 3.2MΩ, 32MΩ (Auto-Ranging)
Continuity: <35Ω Continuity Buzzer 2kHz
Temperature: -20 to +760°C, -4 to +1400°F
IR Temperature: No
Diode Check: Yes
Transistor Test: No
Back Light: Yes
Bar Graph Display: Yes
Display Hold: Yes
Auto-Ranging: Yes
Inductive Coupler: Yes
PC Interface: No
Digits Height: 18mm
Auto Power Off: n/a
Low Battery Indicator: Yes
Batteries (supplied): 9V (PP3)
Hi-Impact Case: Yes
Size (L x W x D): 167 x 79 x 50mm

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
