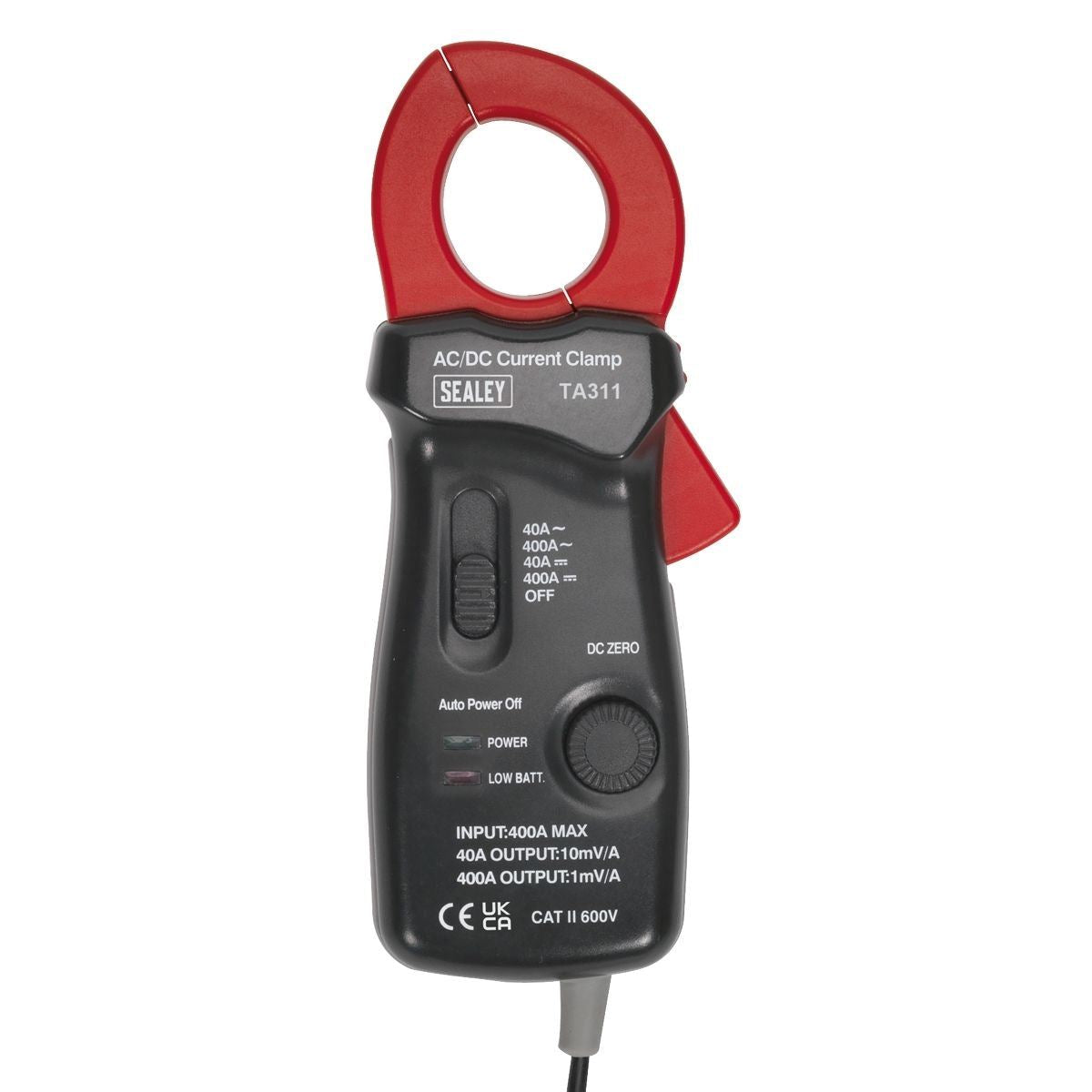

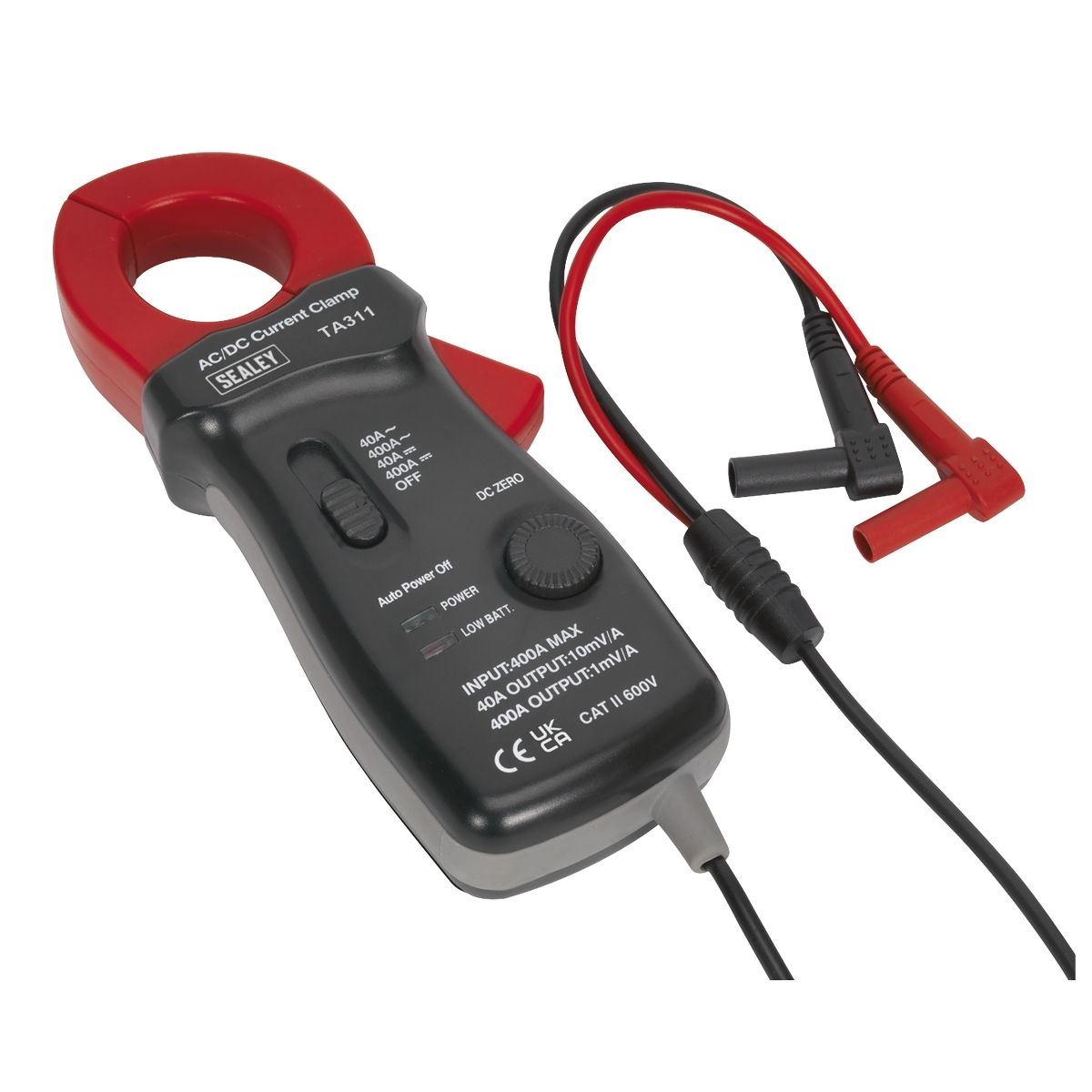

Sealey TA311 Current Clamp 40A/400A AC/DC Ø28mm
- Regular price
-
£95.00
£79.16 Ex.VAT -
-
£95.00 £79.16 Ex.VAT
- Translation missing: en.products.product.price.unit_price_label
- per
Sealey TA311 Current Clamp 40A/400A AC/DC Ø28mm
Features:
Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
Suitable for measuring both AC and DC current, without breaking into the circuit, with a 40A and 400A setting for accurate measurement.
Features a Ø28mm clamp ideal for testing wire bundles.
Fitted with 4mm banana connectors and supplied in storage pouch.
Powered by 9V battery (supplied).
Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
Specification:
Barcode no. 5051747779693
Brand: Sealey
Nett Weight: 0.36kg
TA311 Captured Conductor Size: Ø20mm maximum
Low Battery Indicator: LED red
Operating Temperature: 0°C to 50°C.
Storage Temperature: -15°C to 50°C.
Battery Type: 9V DC
Typical Battery Life: 80hrs (alkaline)
Weight: 240g
TA311 Dimensions (H x W x D): 175mm x 70mm x 38mm
Output Connection: Banana plugs (red & black)
40A (output: 10mV/A): DC or rms AC for 200mV or 400mV range of the multimeter
400A (output: 1mV/A): DC or rms AC for 400mV range of the multimeter
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
