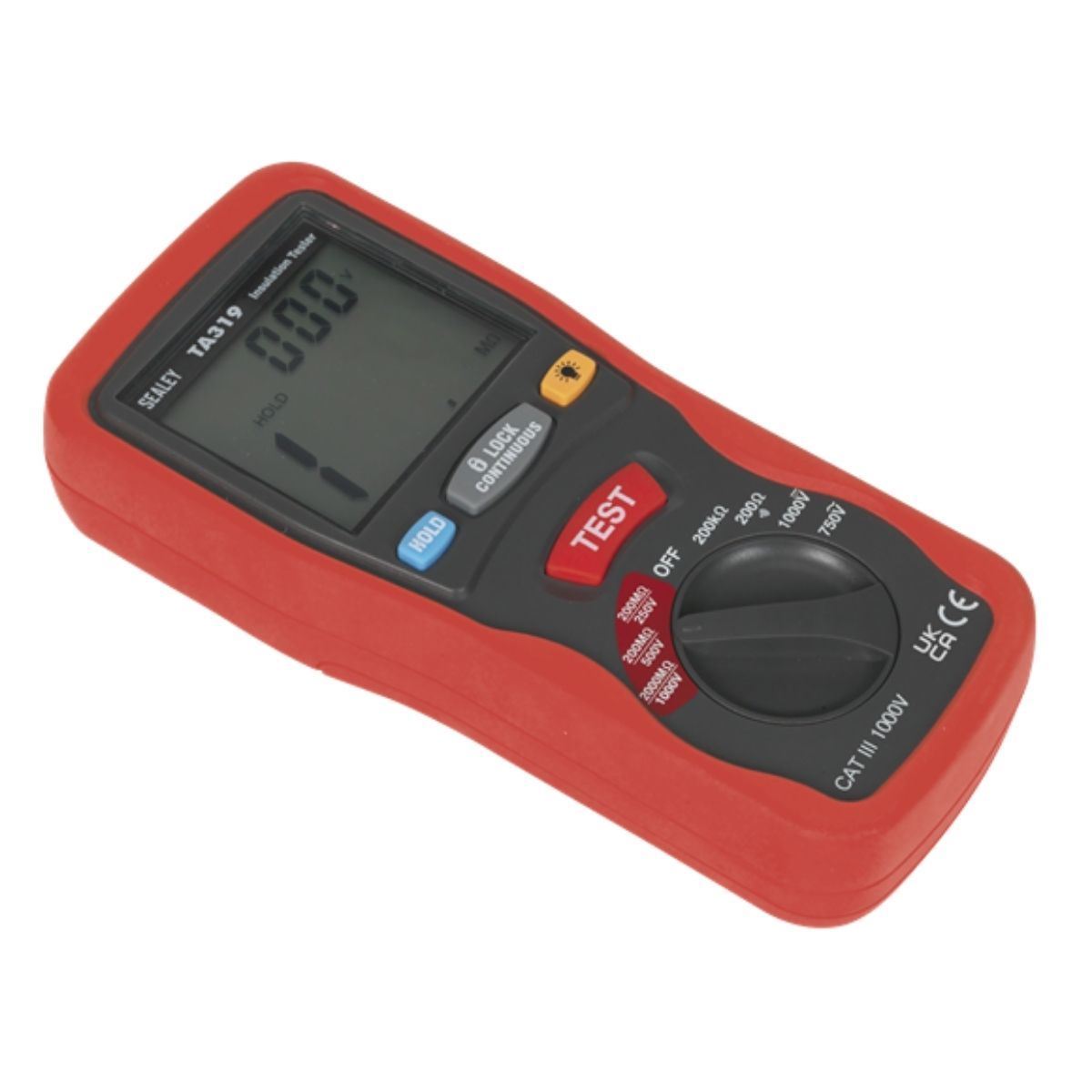

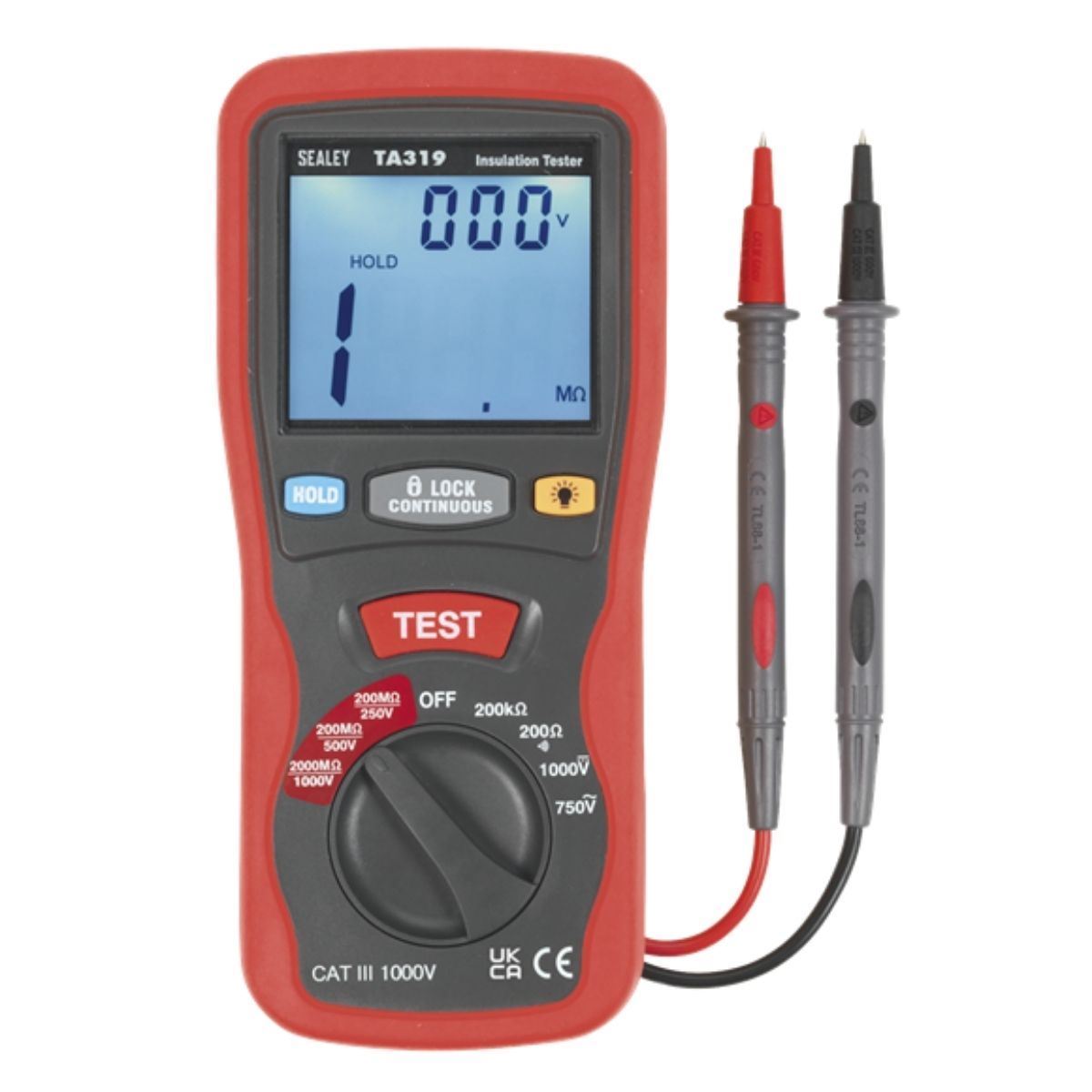

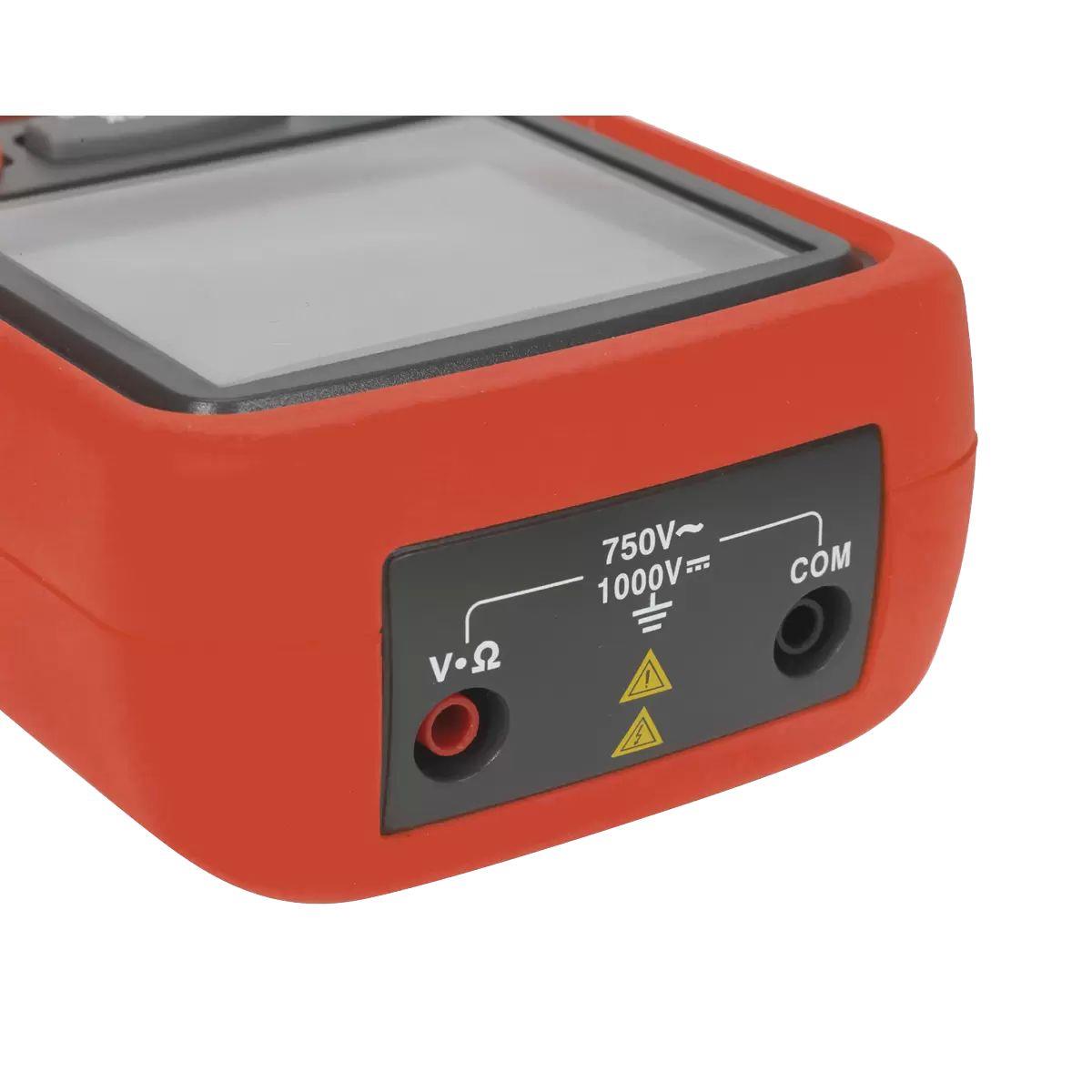

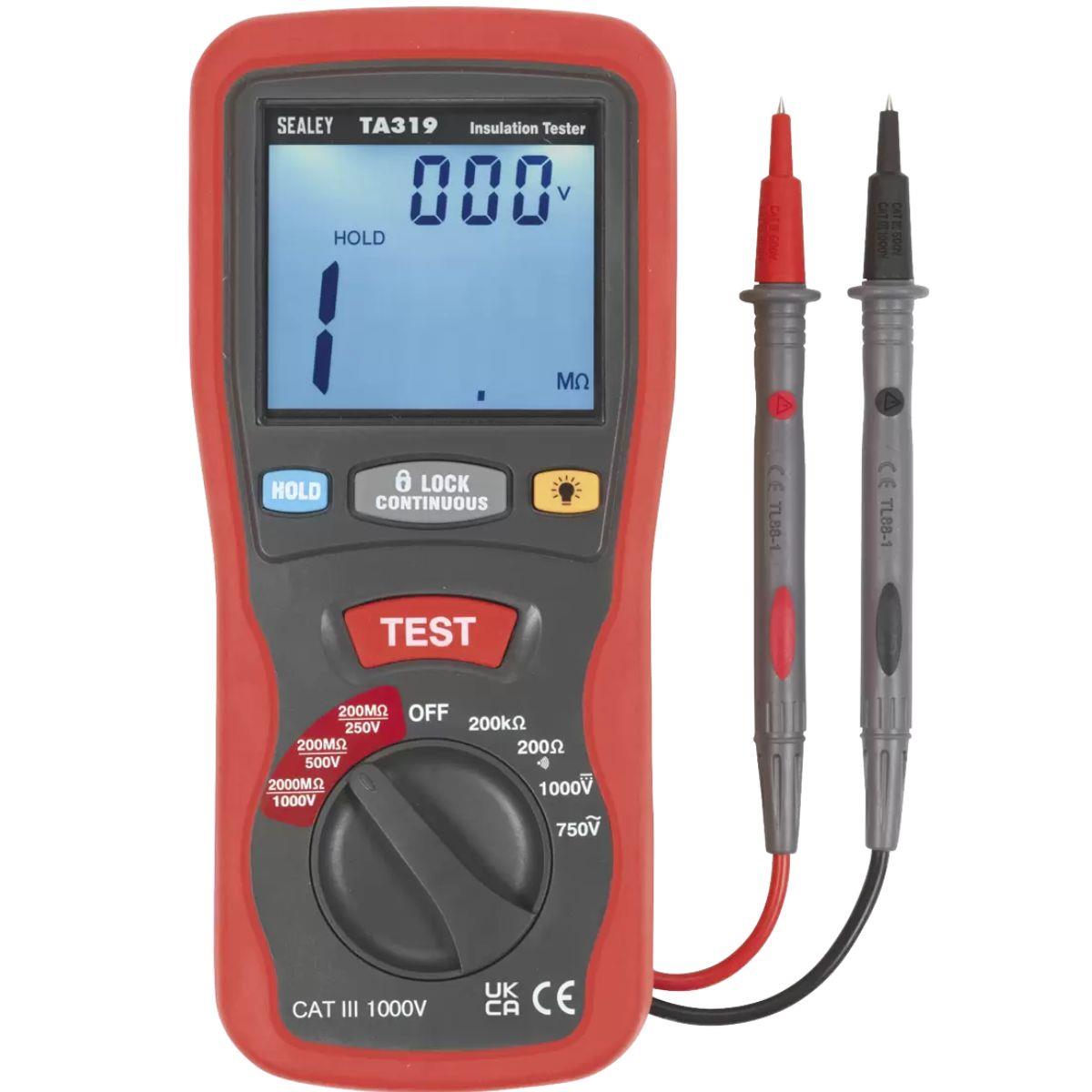

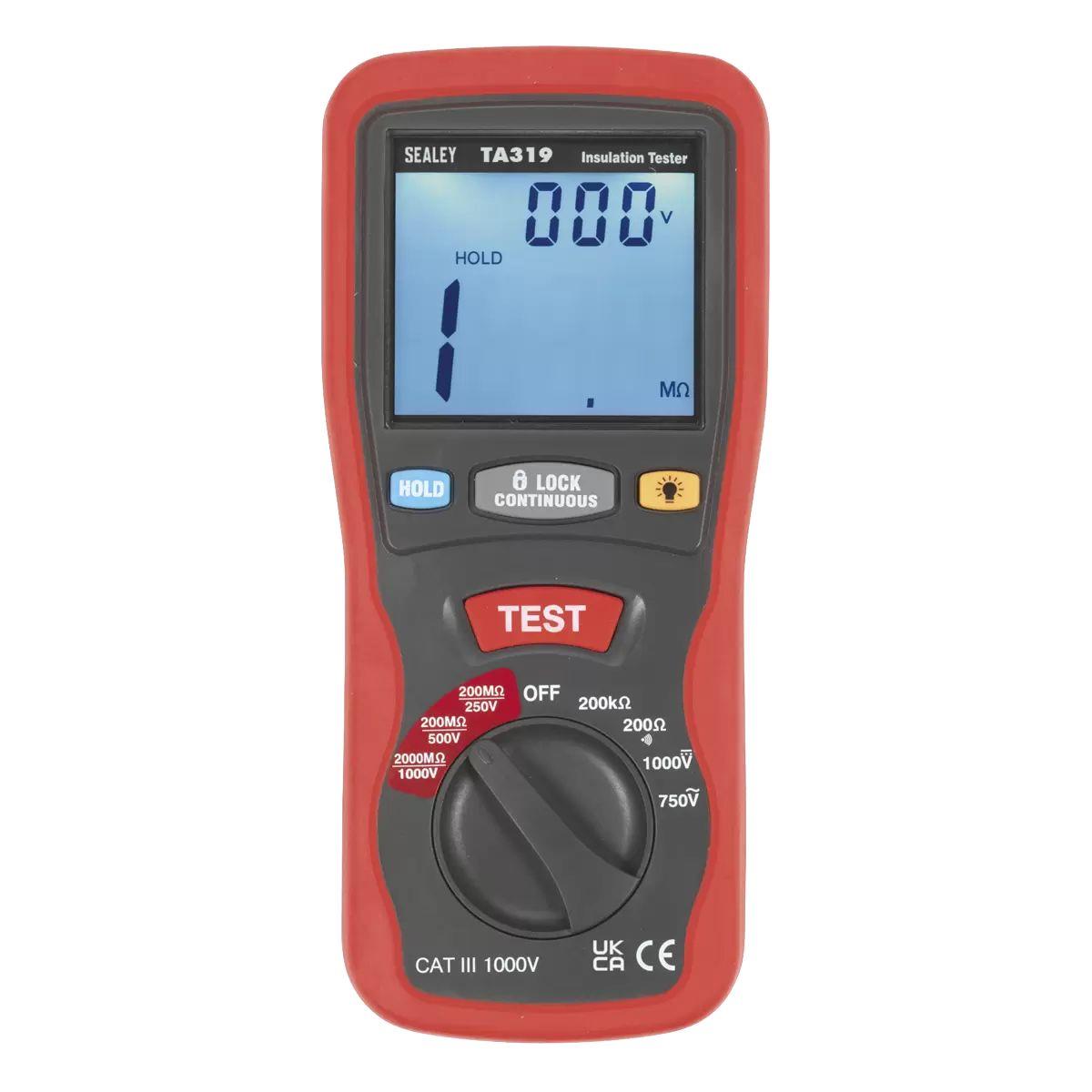

Sealey TA319 Digital Insulation Tester
- Regular price
-
£205.00
£170.83 Ex.VAT -
-
£205.00 £170.83 Ex.VAT
- Translation missing: en.products.product.price.unit_price_label
- per
3-5 Working Days Delivery
Sealey TA319 Digital Insulation Tester
Features:
Specially designed for testing insulation on high voltage cables.
Suitable for hybrid and electric vehicles.

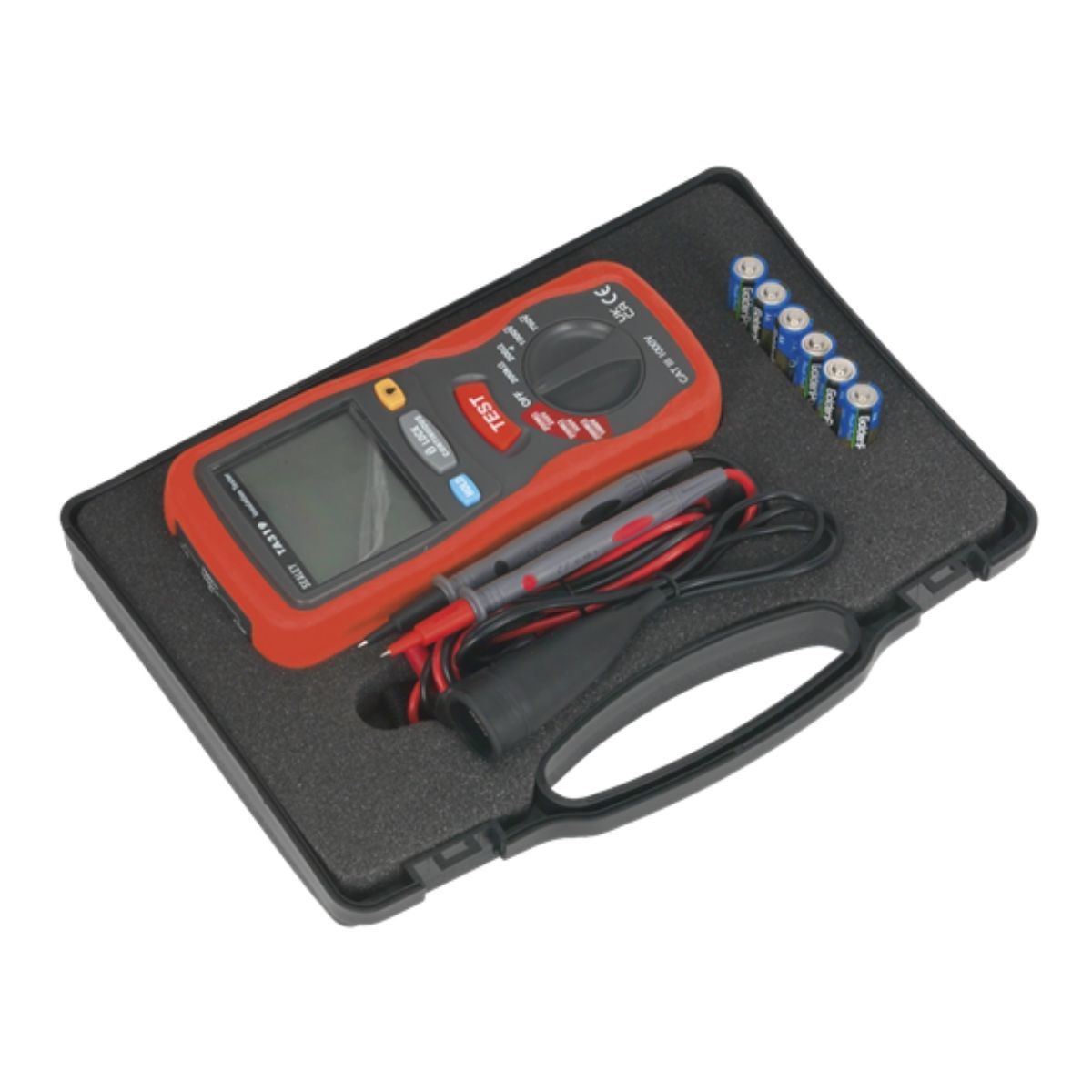

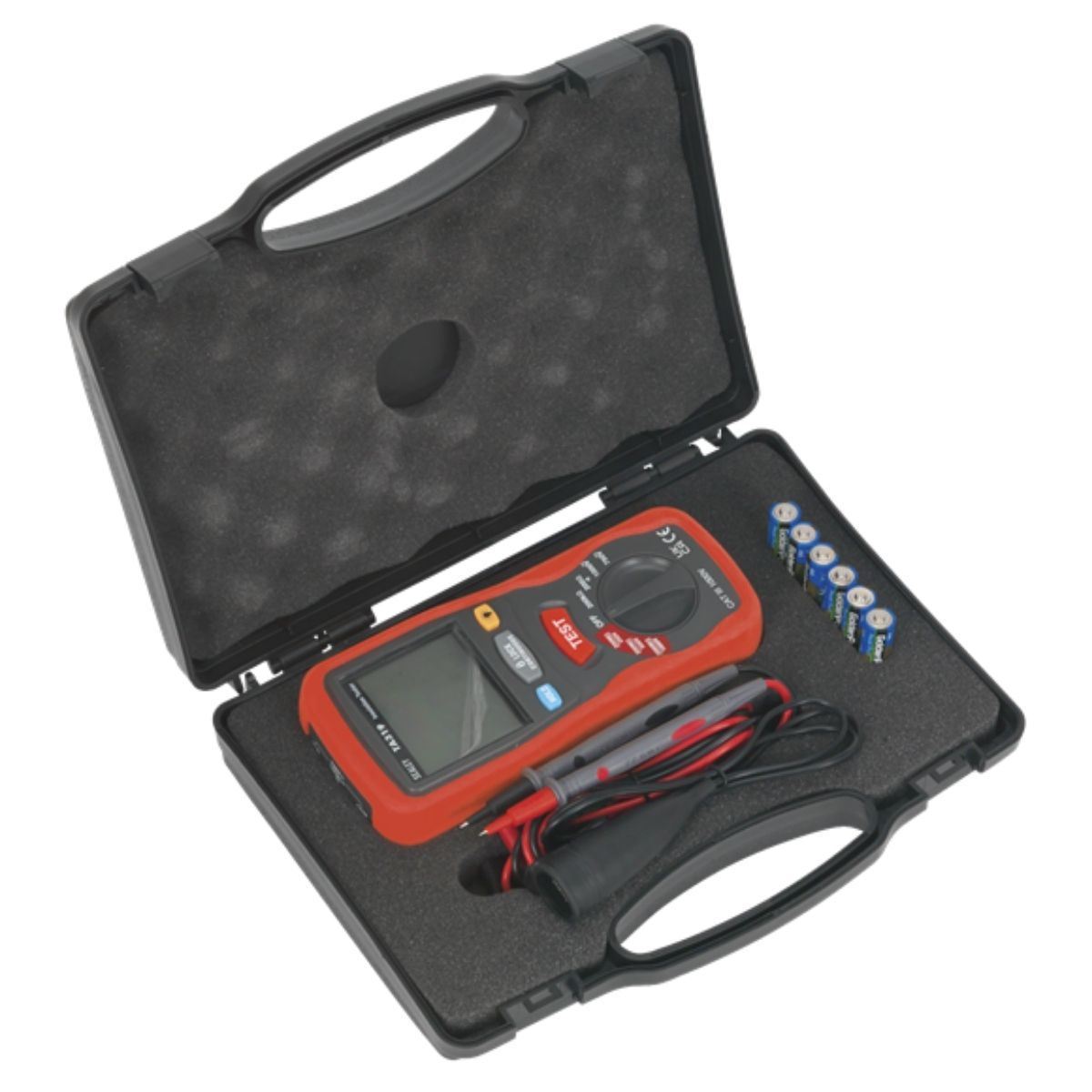

Supplied with test leads, batteries and storage case.
Conforms to EN61010 CAT III (1000V).
Specification:
Part Number: TA319
Barcode: 5054630019869
Brand: Sealey
Nett Weight: 1.29kg
Voltage AC: Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
Voltage DC: Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
Resistance: Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
Insulation Resistance: Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
Test Voltage: 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
Continuity Test: Active Sound Level; ≤40Ω, Test Current; ≤200mA
Operating Temperature: 0ºC to +40ºC, (<80%R.H)
Storage Temperature: -10ºC to +60ºC, (<70%R.H)
Batteries: 6 x 1.5V (supplied)
Barcode: 5054630019869
Brand: Sealey
Nett Weight: 1.29kg
Voltage AC: Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
Voltage DC: Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
Resistance: Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
Insulation Resistance: Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
Test Voltage: 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
Continuity Test: Active Sound Level; ≤40Ω, Test Current; ≤200mA
Operating Temperature: 0ºC to +40ºC, (<80%R.H)
Storage Temperature: -10ºC to +60ºC, (<70%R.H)
Batteries: 6 x 1.5V (supplied)
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
