Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester
Sealey TA320 Digital Automotive Analyser and Insulation Tester

Sealey TA320 Digital Automotive Analyser and Insulation Tester

Regular price
£341.00
£284.16 Ex.VAT
£341.00 £284.16 Ex.VAT
Translation missing: en.products.product.price.unit_price_label
per
Delivery in 1-2 working days

Delivery in 1-2 working days

  • High quality multimeter
  • IP67 waterproof rating
  • Low Battery Indicator
  • Size (L x W x D): 220 x 95 x 56mm
- +

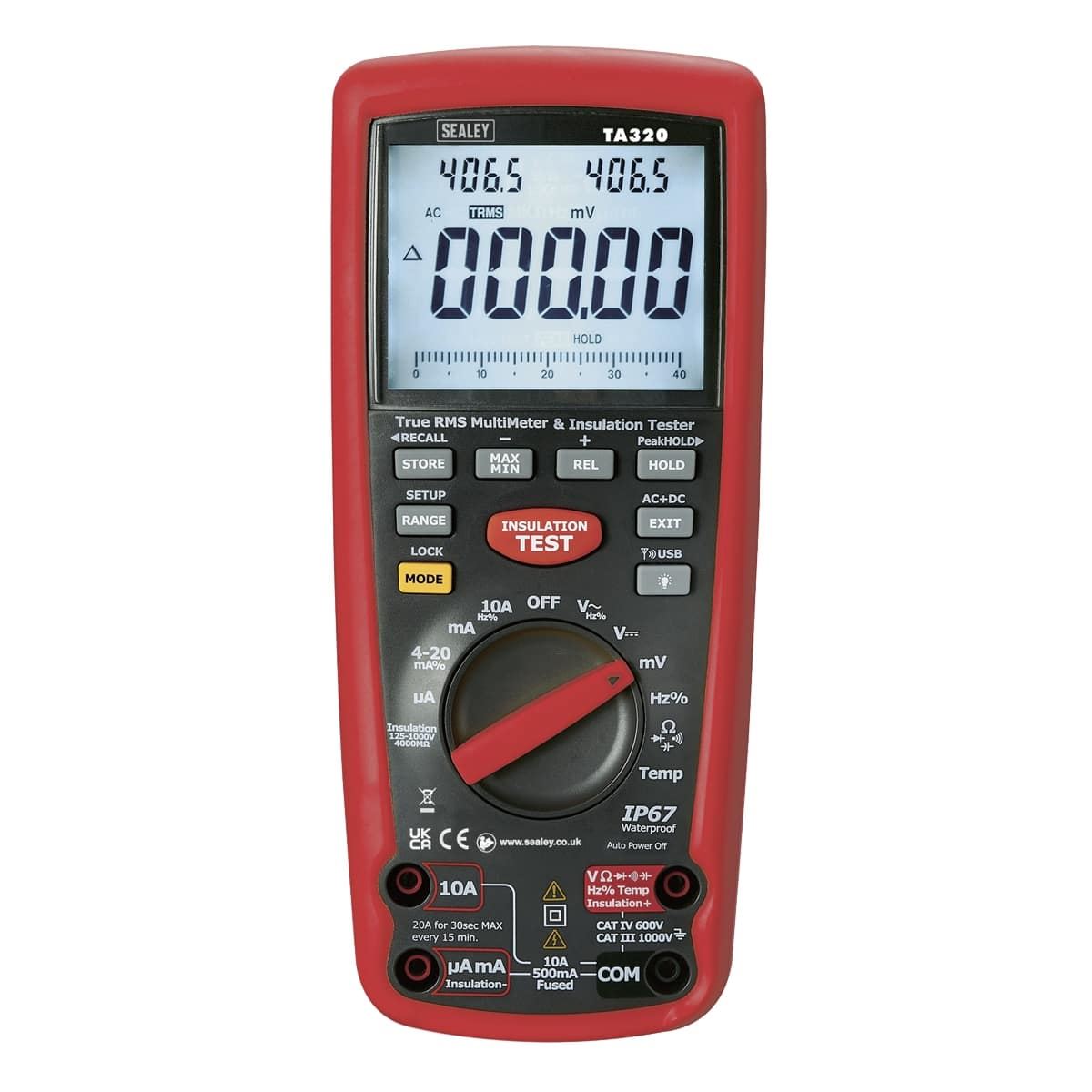

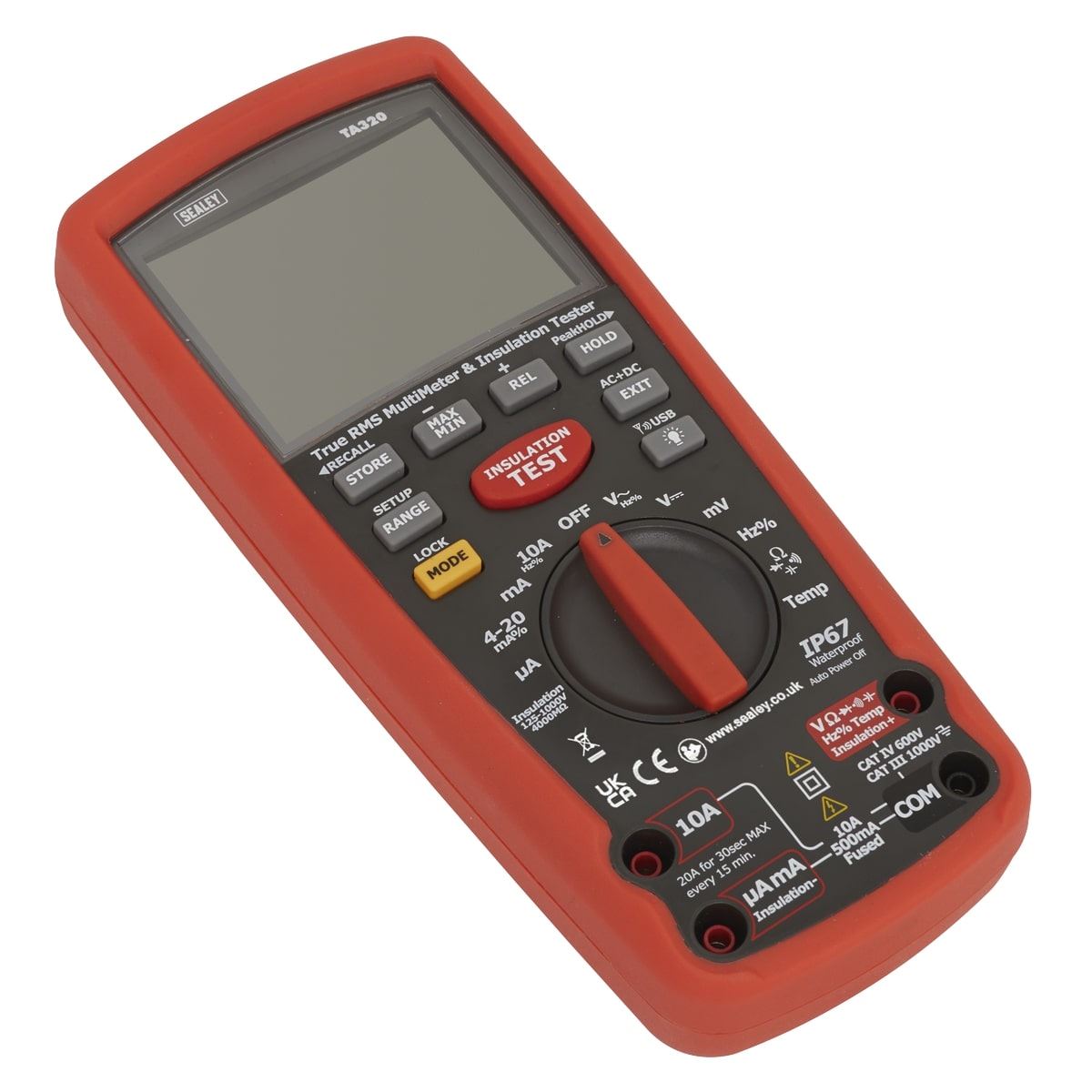

Sealey TA320 Digital Automotive Analyser and Insulation Tester

The Sealey TA320 Digital Automotive Analyser and Insulation Tester is specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V).

Features:

Specially designed for hybrid vehicles and conforms to EN61010 CAT III (1000V) and CAT IV (600V)

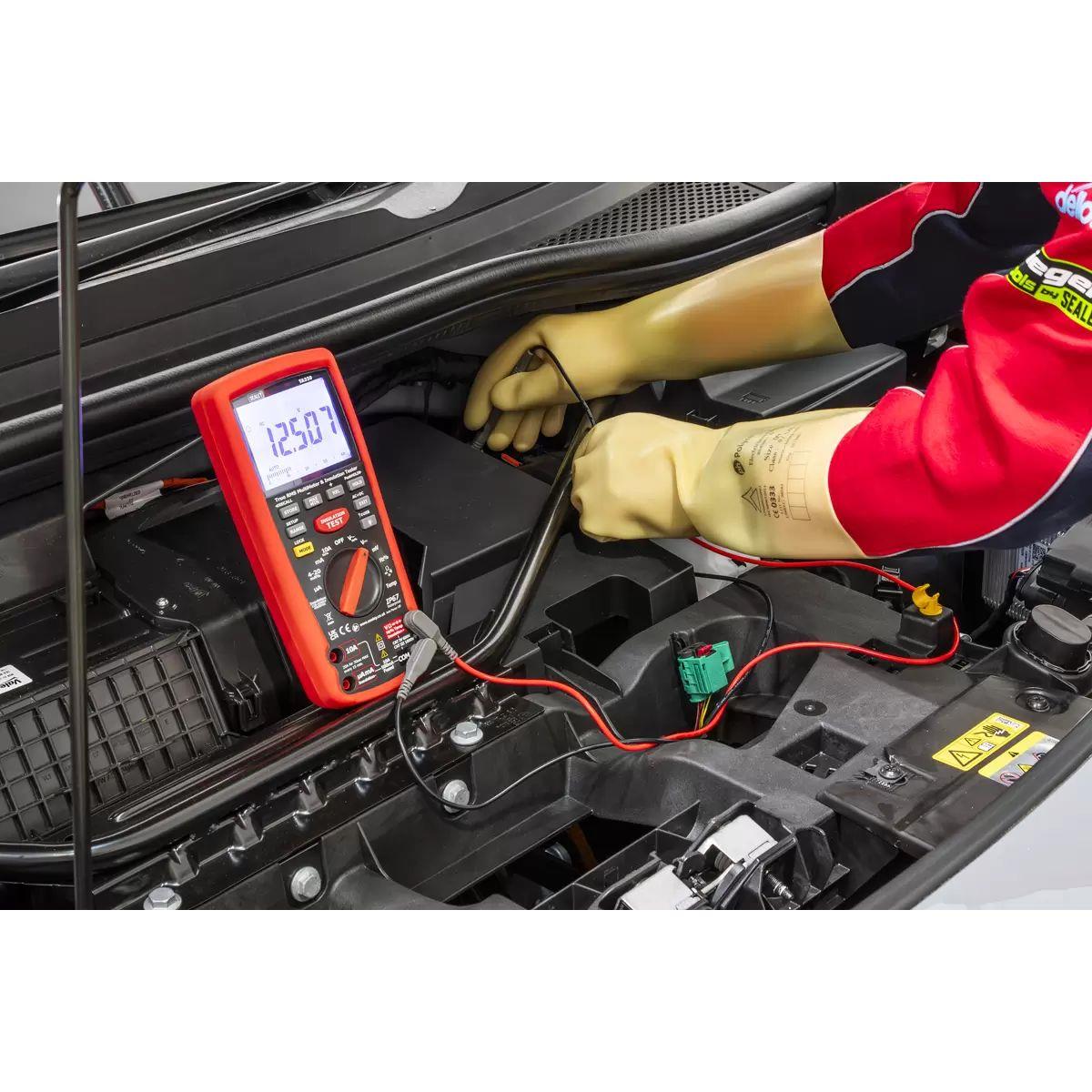

Unlike other multimeters this unit has an insulation test function that allows testing of the insulation of the high voltage cables and motor generator units found on hybrid vehicles
Can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop enabling results to be graphed, saved or printed

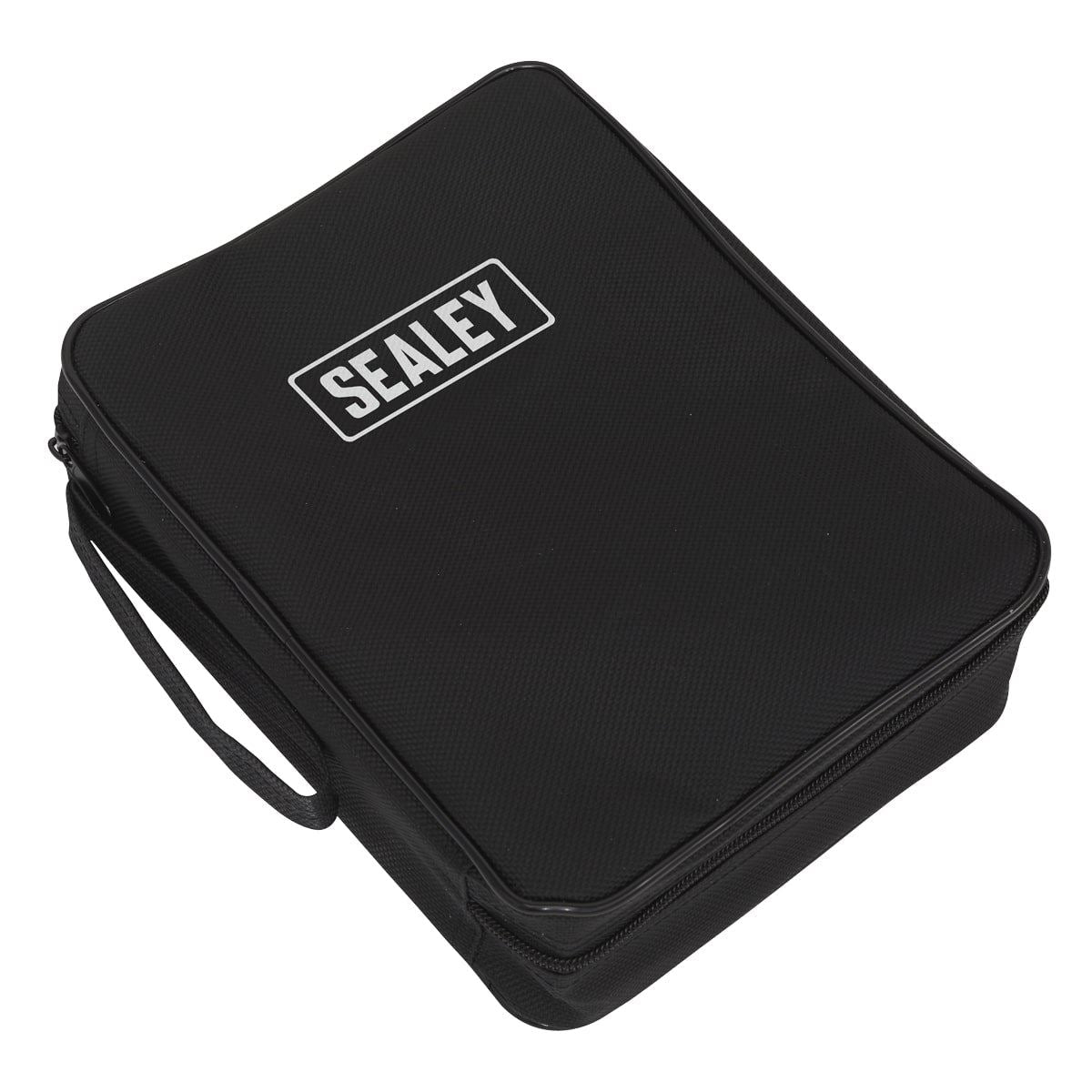

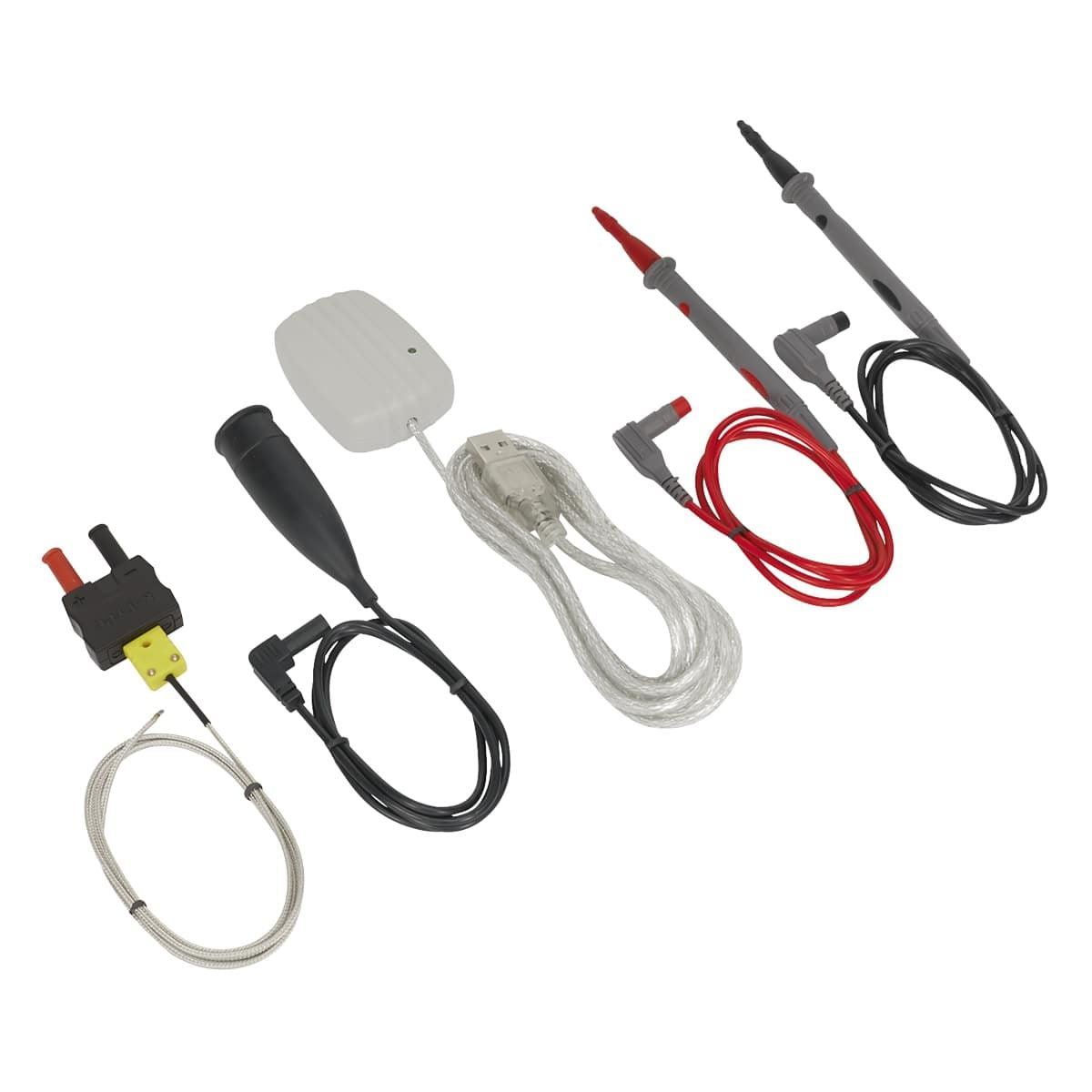

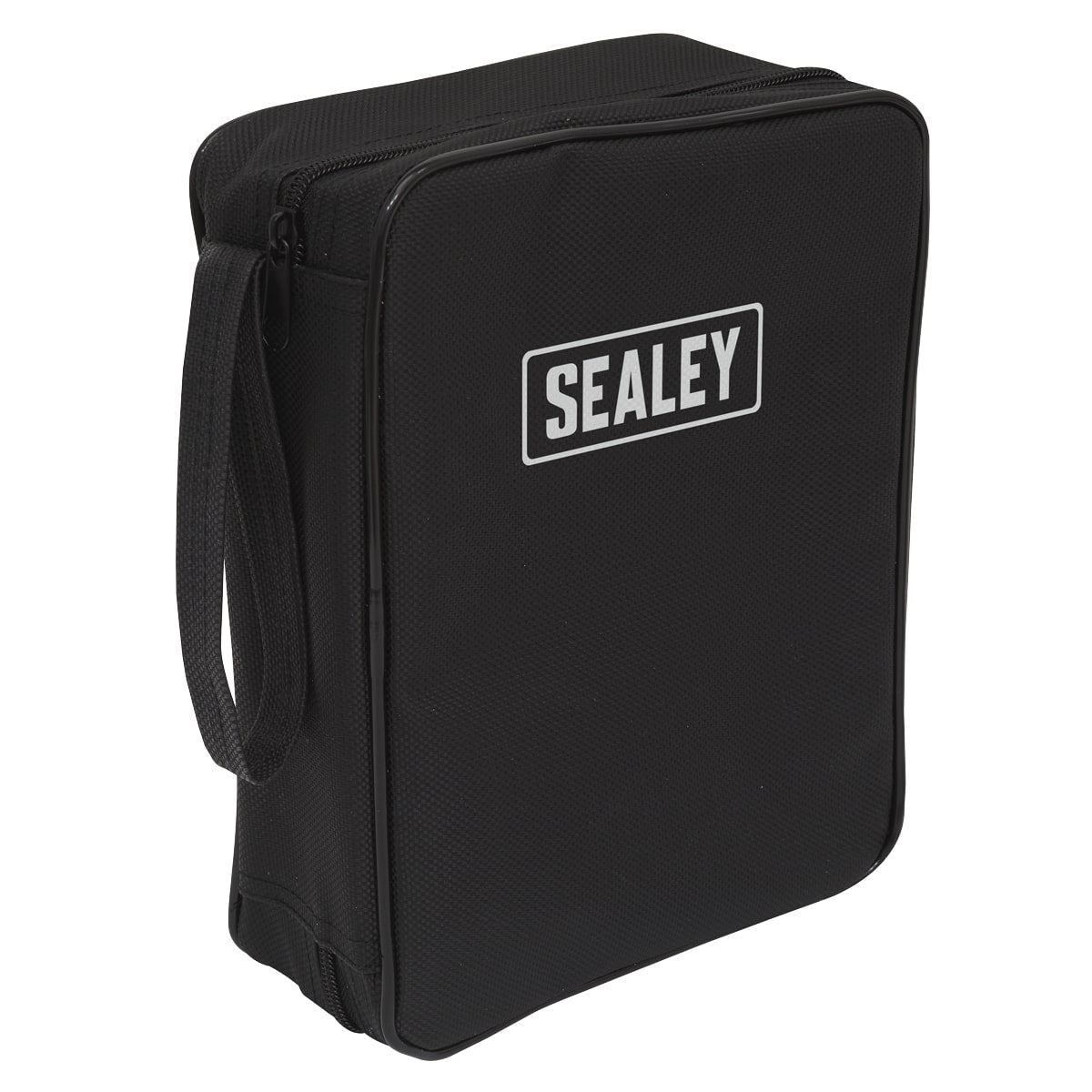

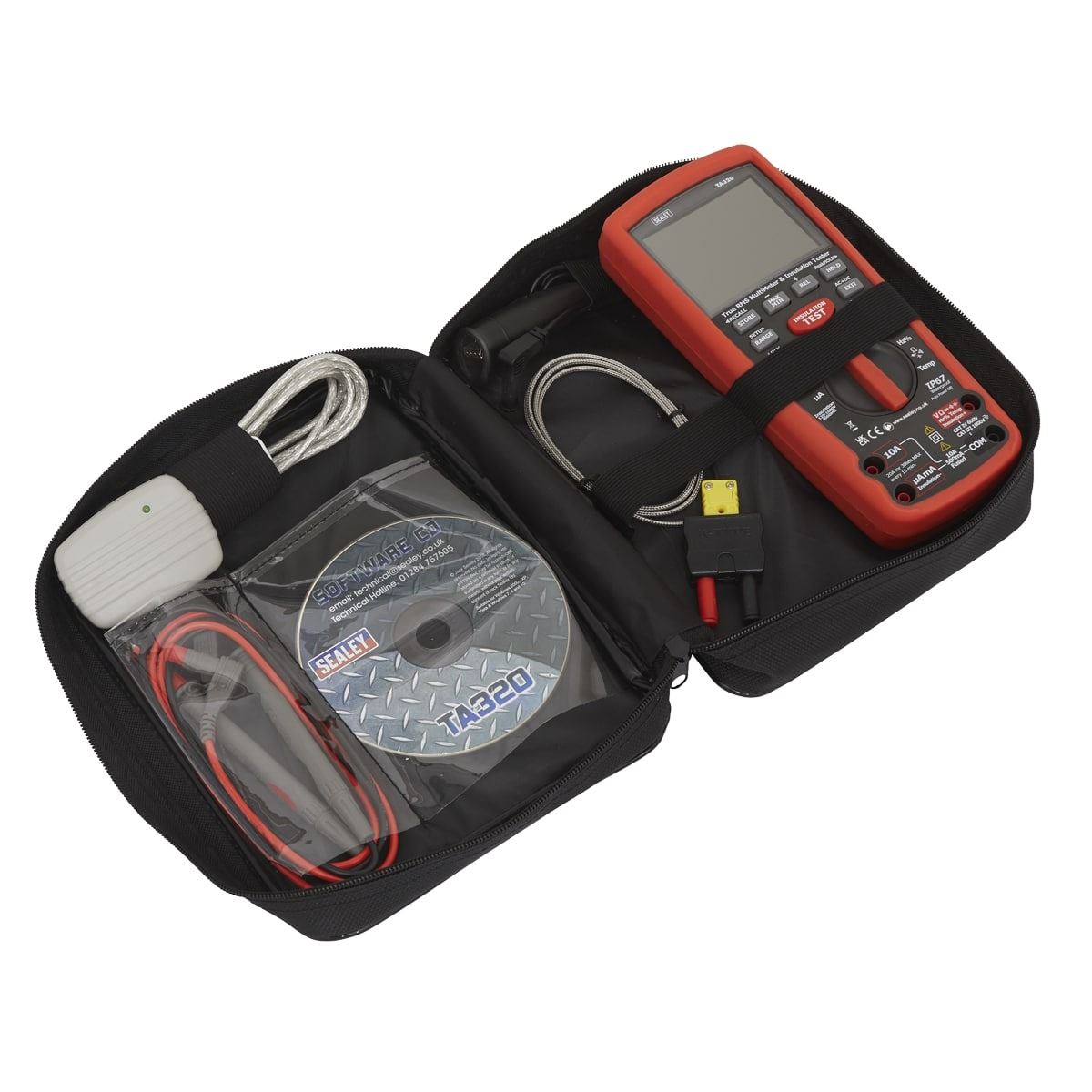

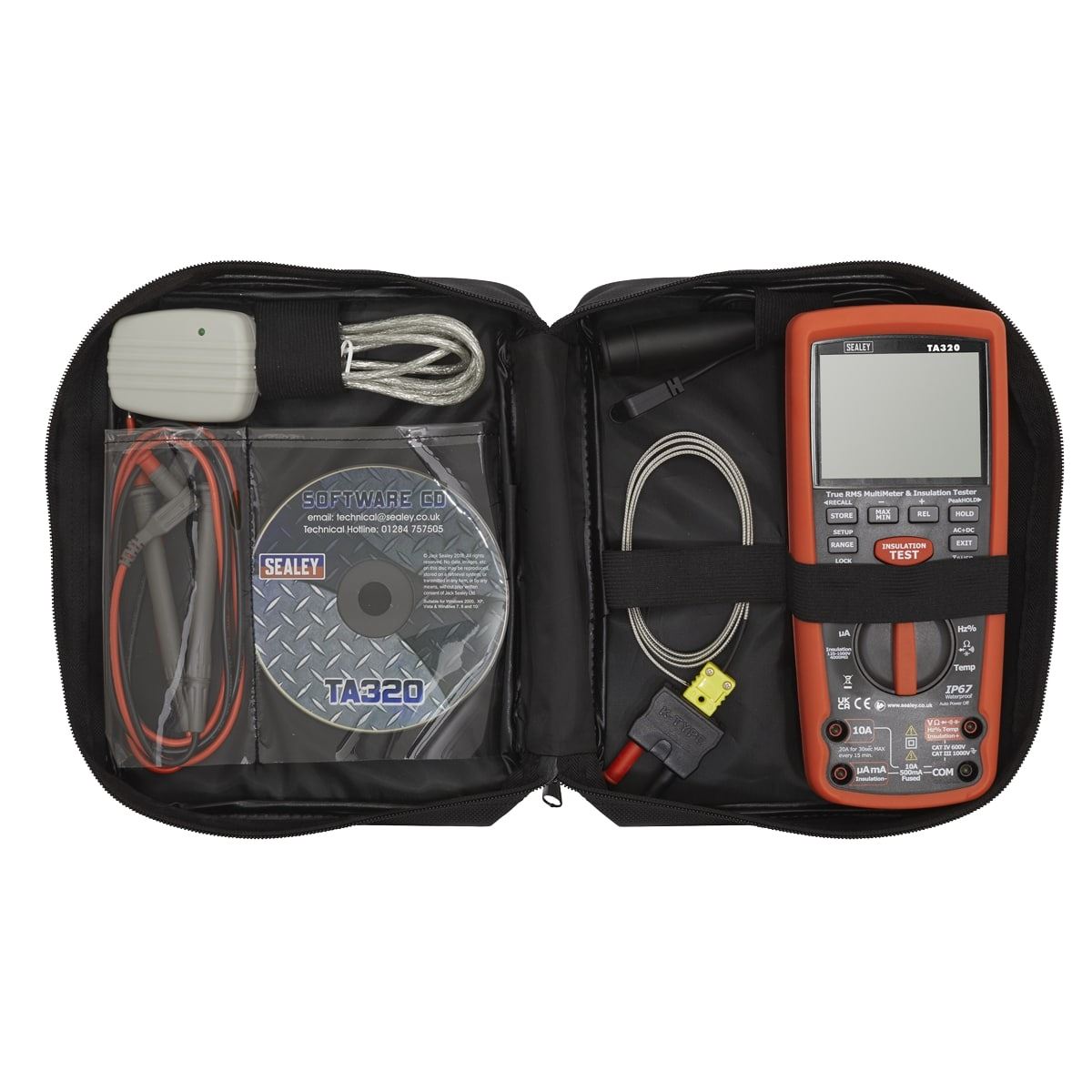

Supplied with high voltage probes, thermocouple soft storage bag and wireless USB cable
The unit also has the usual functions expected on a high quality multimeter including true RMS (Root-Mean-Square) and IP67 waterproof rating

Specification:

Part Number: STW804
Barcode: 5054511976939
Brand: Sealey
Nett Weight: 700g
Tach (rpm): No
Dwell: No
AC Voltage: 400mV, 4V, 40V, 400V, 1000V
DC Voltage: 400mV, 4V, 40V, 400V, 1000V
AC Current: 400µA, 4000µA, 40mA, 400mA, 10A
DC Current: 400µA, 4000µA, 40mA, 400mA, 10A
Capacitance: 40nF, 400nF, 4µF, 40µF, 400µF, 4000µF, 40mF
Frequency: 40Hz-10kHz
Duty Cycle: 0.1-99.9%
Pulse Width: 100µs-100ms
Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
Continuity: <35Ω
Temperature: -50 to +1000°C, -58 to +1832°F
IR Temperature: No
Insulation Test: 125V, 250V, 500V, 1000V
Diode Check: Yes
Transistor Test: No
Back Light: Yes
Bar-Graph Display: Yes
Display Hold: Yes
Auto-Ranging: Yes
Inductive Coupler: No
PC Interface: Yes
Digits Height: 20mm
Auto Power Off: Yes
Low Battery Indicator: Yes
Batteries (Supplied): 6 x 1.5V AA
Hi-Impact Case: Yes
Size (L x W x D): 220 x 95 x 56mm
Weight: 700g
PC Compatibility: Windows 2000, XP, Vista, Win7

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
