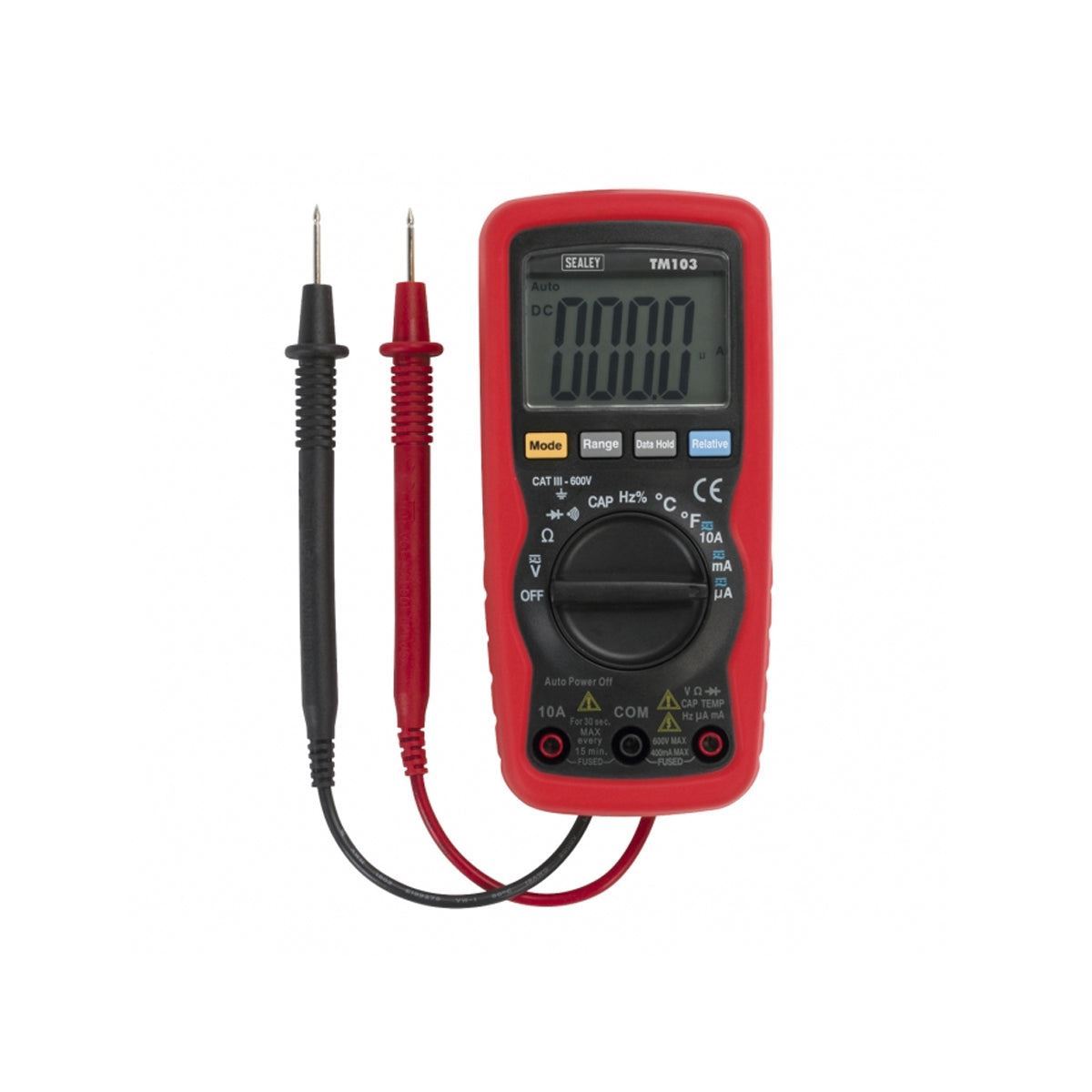

Sealey TM103 Professional Auto Ranging Digital Multimeter 11 Function

Sealey TM103 Professional Auto Ranging Digital Multimeter 11 Function

Features:

High precision auto-ranging multimeter.
Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
Features temperature measurement capability, max./data hold and auto-power-off function.
Double moulded housing with soft grip case and large display for ease of use.
Practical probe and lead storage and integral upright stand for use on the workbench.
Supplied in zipped pouch with carry strap.

Product Specification:

Barcode: 5051747492905
Part No: TM103
AC Voltage (Accuracy): 400mV (±1.5%), 4V (±1.2%), 40V, 400V (±1.5%), 600V (±2%)
DC Voltage (Accuracy): 0-400mV (±0.5%), 4V, 40V, 400V (±1.2%), 600V (±1.5%)
AC Current (Accuracy): 400µA (±1.5%), 4000µA, 40mA, 400mA (±1.8%), 10A (±3%)
DC Current (Accuracy): 400µa (±1%), 4000µa, 40mA, 400mA (±1.5%), 10A (±2.5%)
Resistance (Accuracy): 0-400Ω (±1.2%), 4kΩ (±1%), 40kΩ, 400kΩ, 4MΩ (±1.2%), 40MΩ (±2%)
Capacitance (Accuracy): 4nF, 40nF (±5%), 400nF, 4µF, 40µF (±3%), 200µF (±5%)
Temperature (Accuracy): -20ºC to 760ºC (±3%), -4 to 1400ºF (±5%)
Frequency (Accuracy): 9.999Hz to 9.999MHz
Duty Cycle: 0.1%-99.9% (±1.2%)
Continuity Audible: Yes
Diode Test: Yes
Transistor Test: No
Hi-Impact Rubber Case: Yes
Digits x Height: 4 x 14mm
Low Battery Indicator: Yes
Battery (Supplied): 1 x 9V
Information: Data-Hold & Auto-Power-Off
Size (L x W x D): 150 x 70 x 48mm
Weight: 255g
Conformity: EN 61010-1

Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.

**images for illustrative purposes only – please refer to description and specification for full details of product**
