Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V
Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V

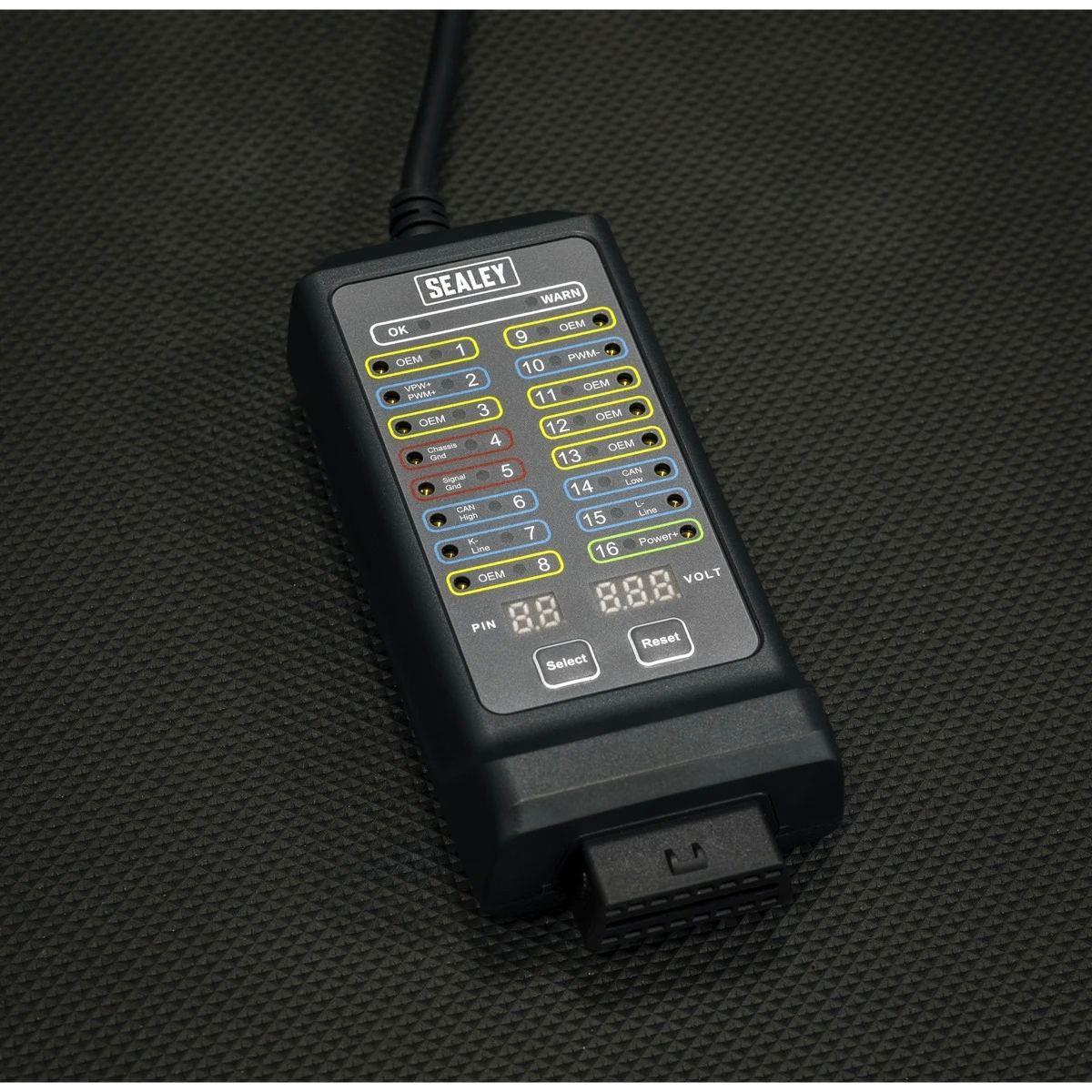

The Sealey VS8813 OBD Breakout Box is designed to test a vehicle's 16-pin OBDII/EOBDII diagnostic port for faults before connecting other diagnostic equipment. It can be connected in series with OBD diagnostic equipment and can also be used with multimeters and oscilloscopes for further electrical testing. Suitable for both 12V and 24V vehicle systems, it provides selectable real-time pin voltage readings and communication protocol indicators. Built-in overload and reverse-polarity protection help protect connected diagnostic equipment.
Features:
Tests 16-pin OBDII/EOBDII diagnostic ports.
Suitable for 12V and 24V vehicle systems.

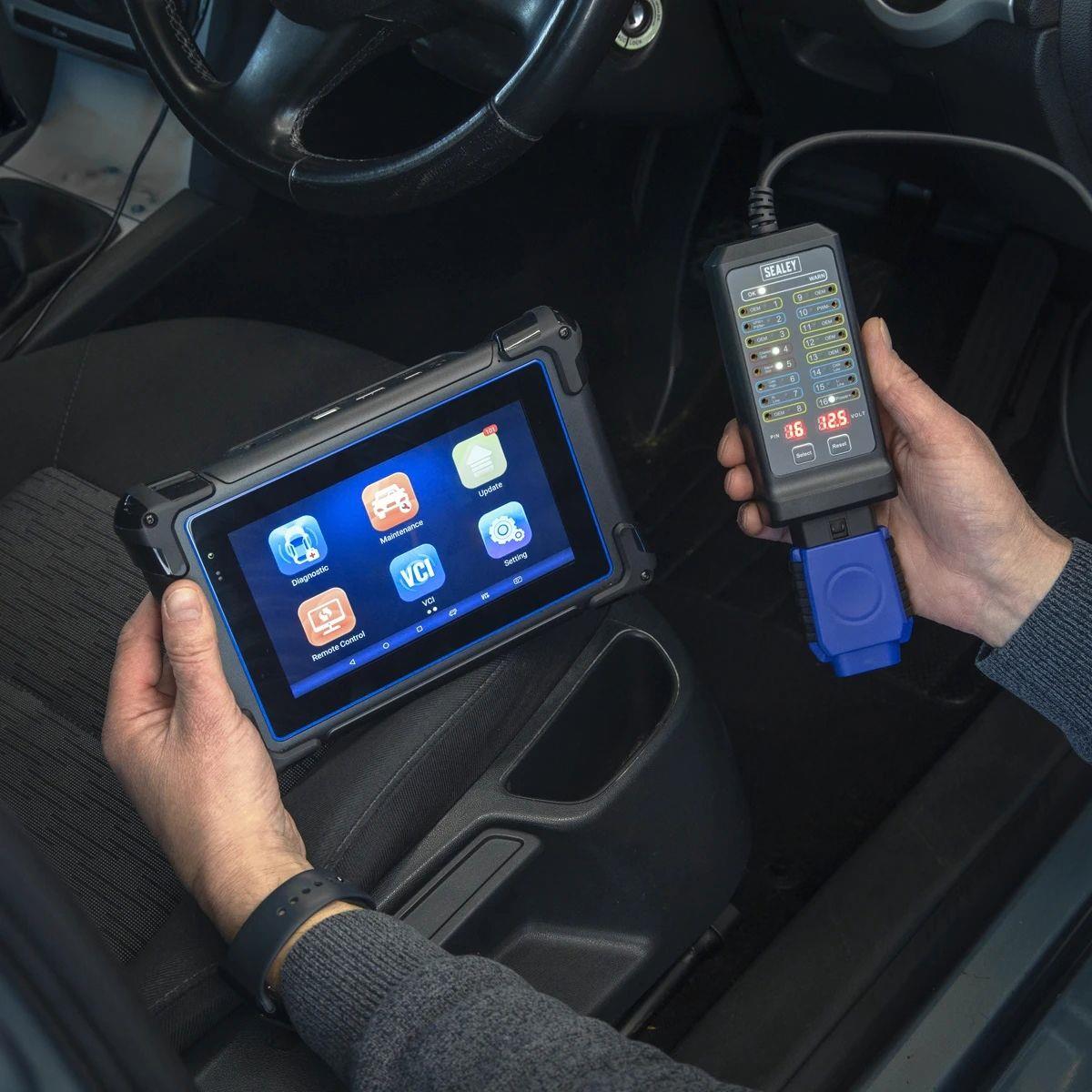

Can be connected in series with diagnostic equipment.
Compatible with multimeters and oscilloscopes.

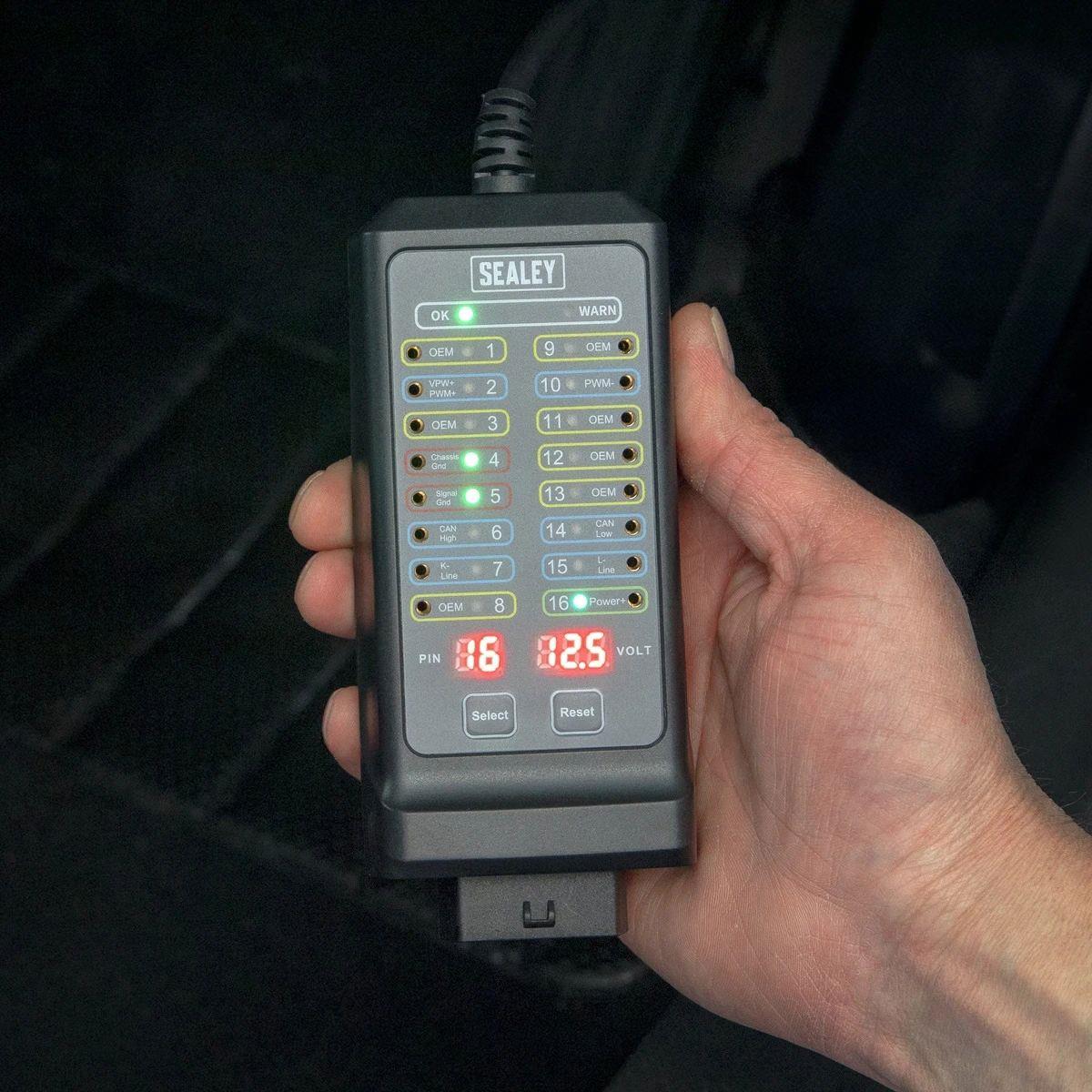

Selectable pin voltage display provides real-time readings.

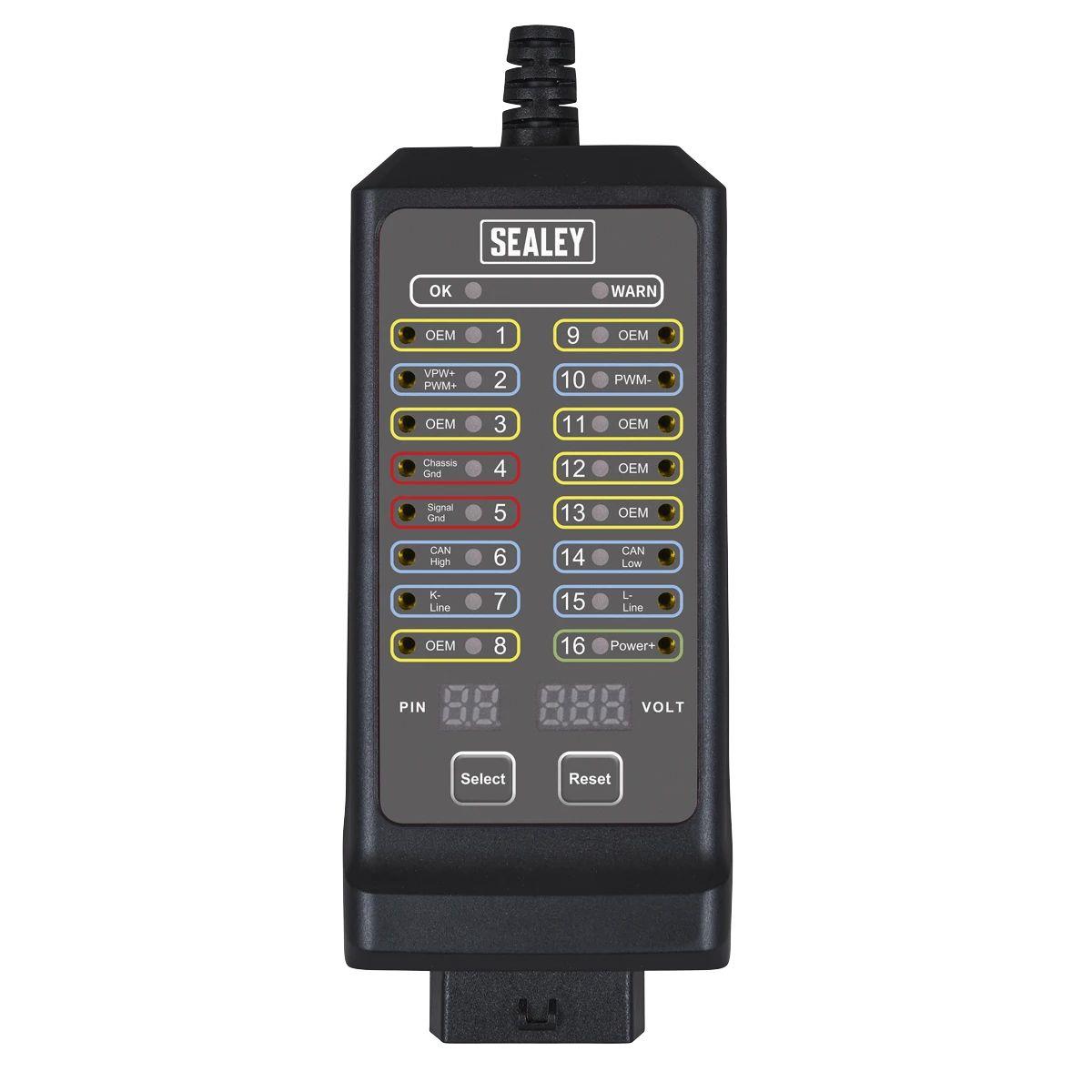

Communication indicators for CAN, VPW/PWM and K/L-Line protocols.
Overload protection helps protect connected equipment.
Comes With:

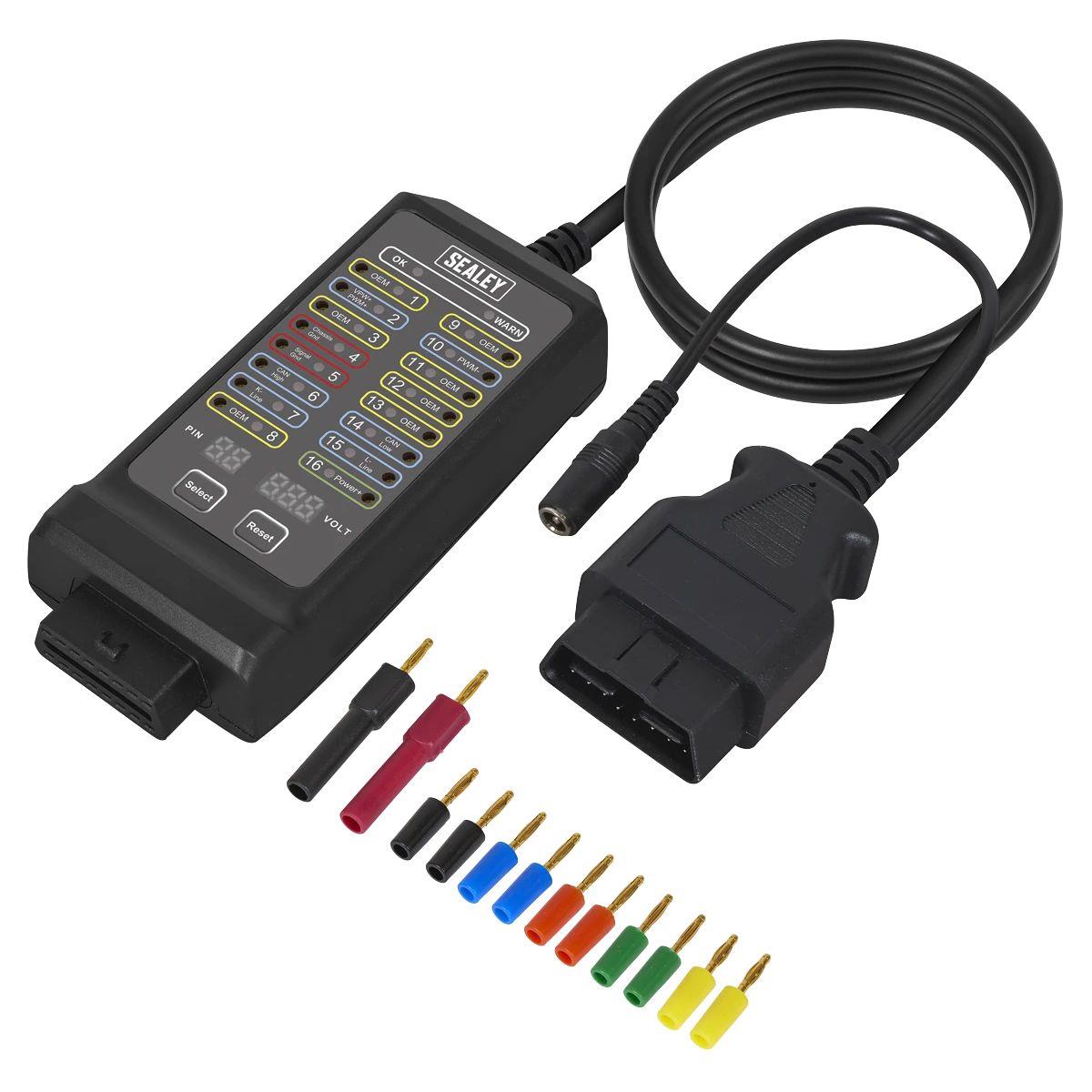

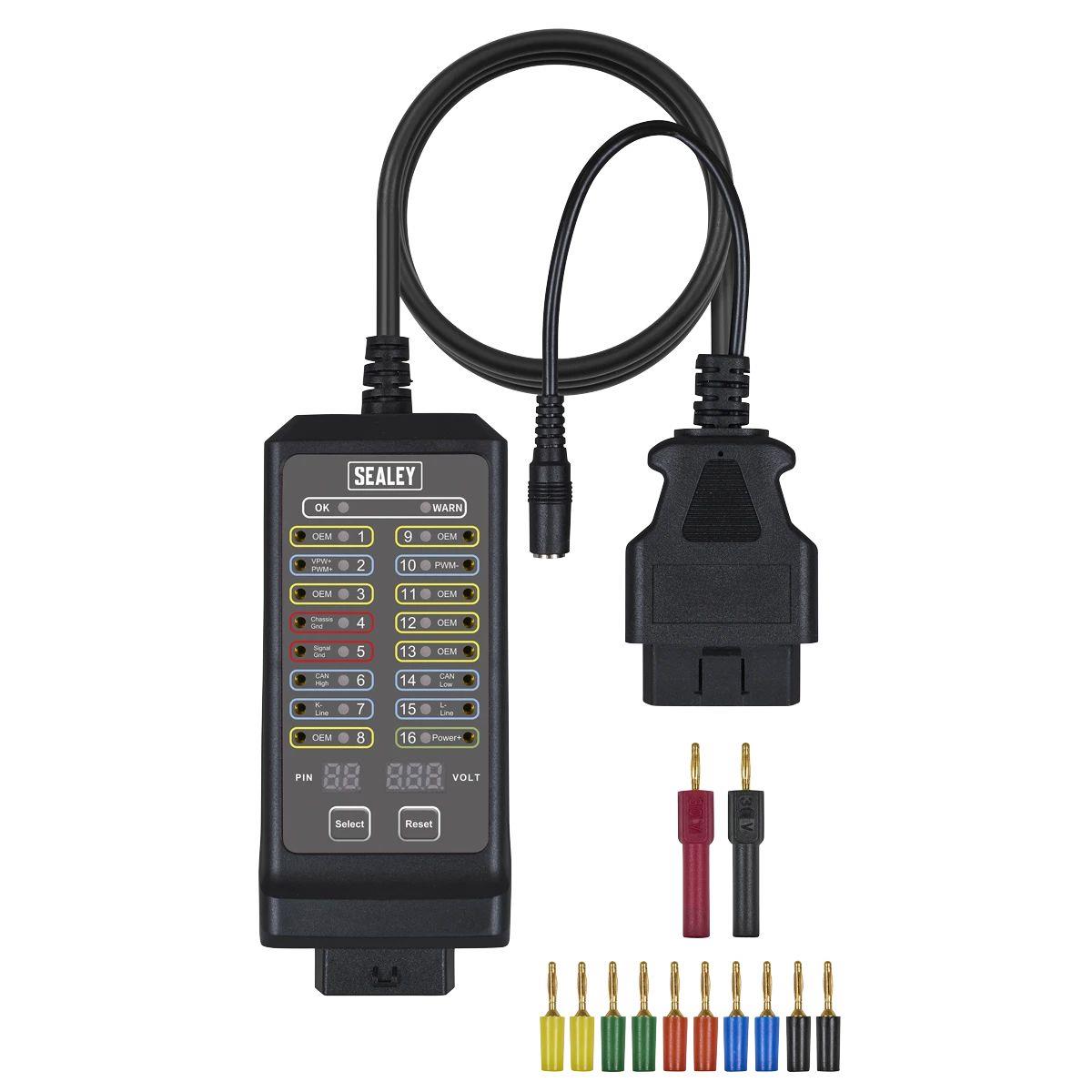

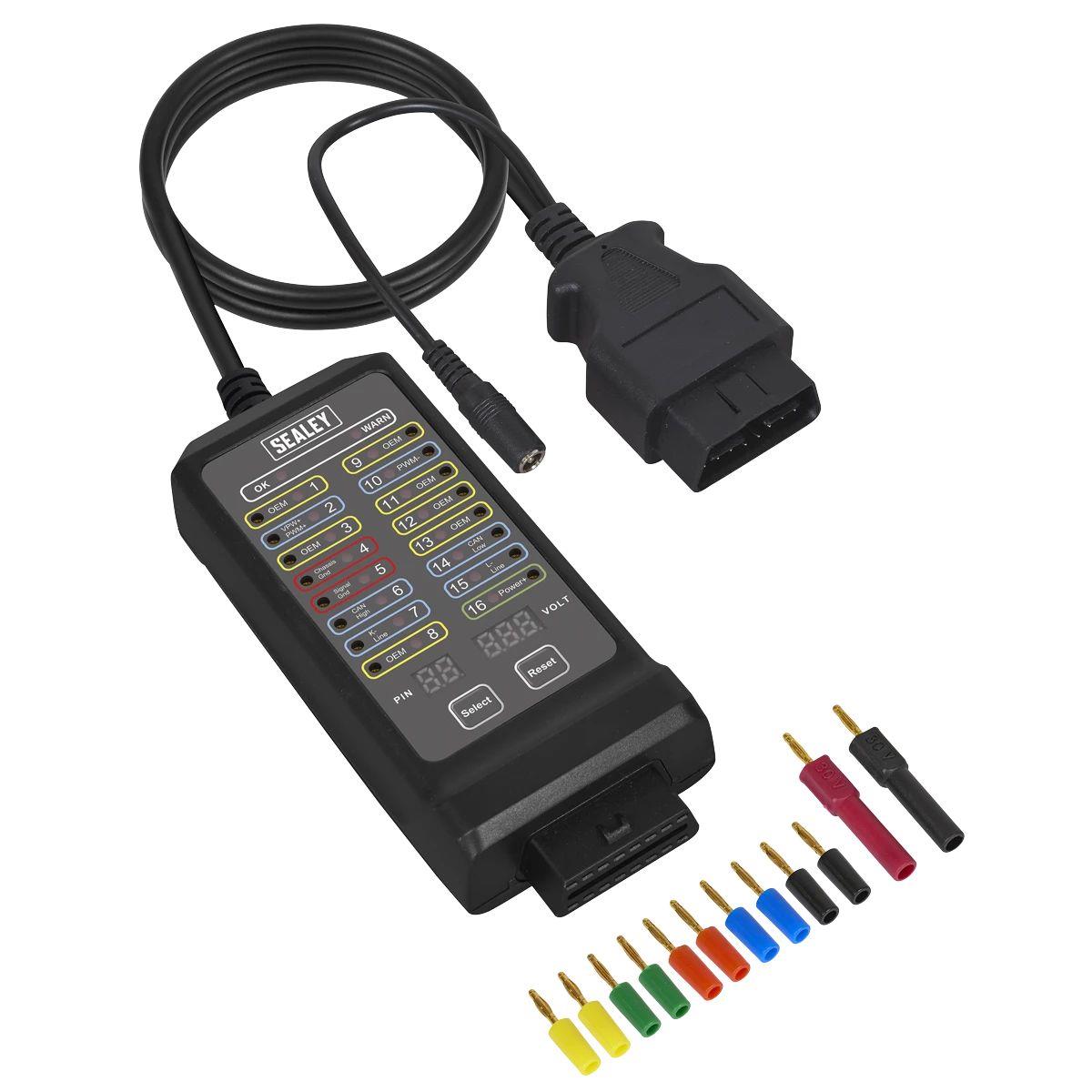

1 x Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V
Product Specification:
Part number: VS8813
Barcode number: 5054630471650
Type: OBD Breakout Box
OBD Connection: 16-Pin OBDII/EOBDII
Input Voltage DC: 9-32V
Maximum Load: 2.0A
Resolution: 0.1V
Overload Protection: Yes
Reverse Polarity Protection: Yes
Operating Temperature: 0°C to 50°C
Cable Length: 700mm
Nett Weight: 0.24kg
Applications: Car, motorcycle, truck, boat and van
