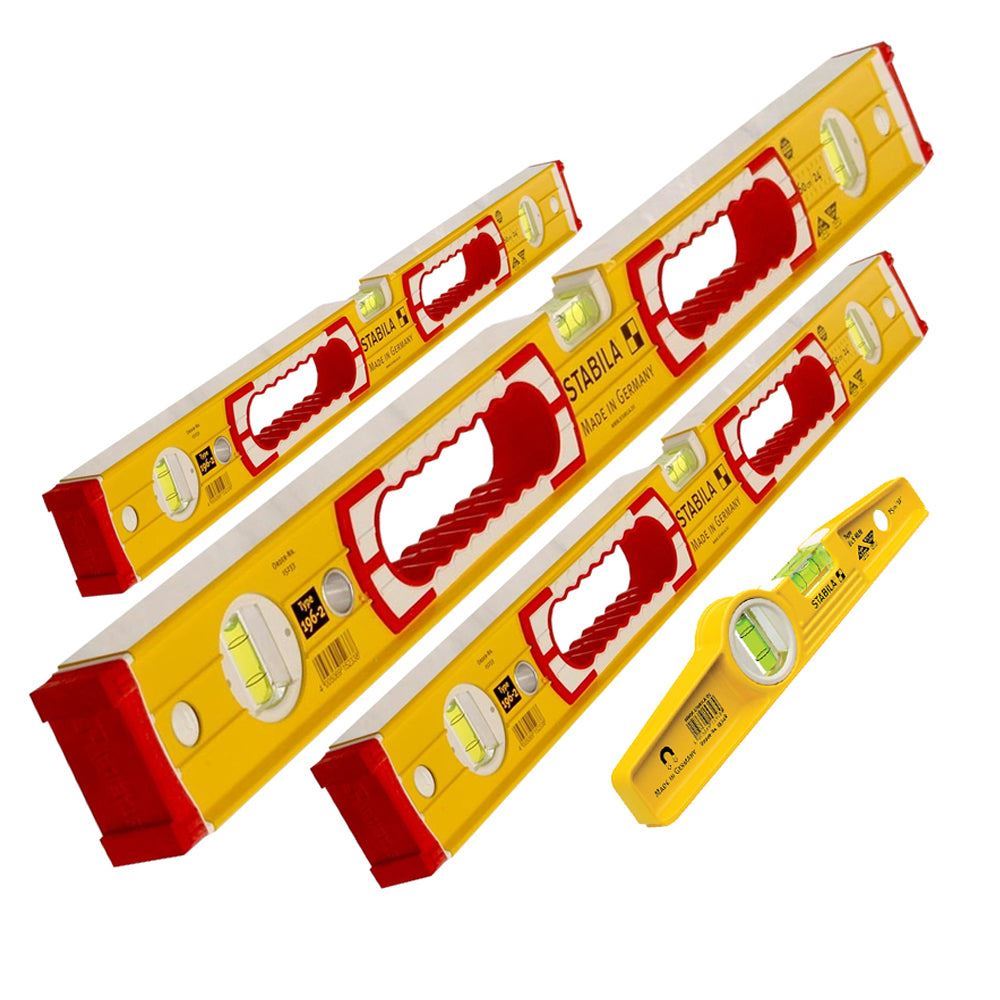

Stabila 196-2 Spirit Combi Levels 600mm, 1200mm, 1800mm & STB81SREM
Stabila 196-2 Spirit Combi Levels 600mm, 1200mm, 1800mm & STB81SREM
Features:
Stabila STB196260:
Light metal rectangular profile with 2 gripping holes, removable end caps
and 2 milled measuring surfaces (up to 120 cm)
2 vertical and 1 horizontal vial
Measurement accuracy: in normal position 0.029° = 0.5 mm/m, overhead measurement 0.029° = 0.5 mm/m
New accuracy improved for overhead measurement
Stabila STB1962120:

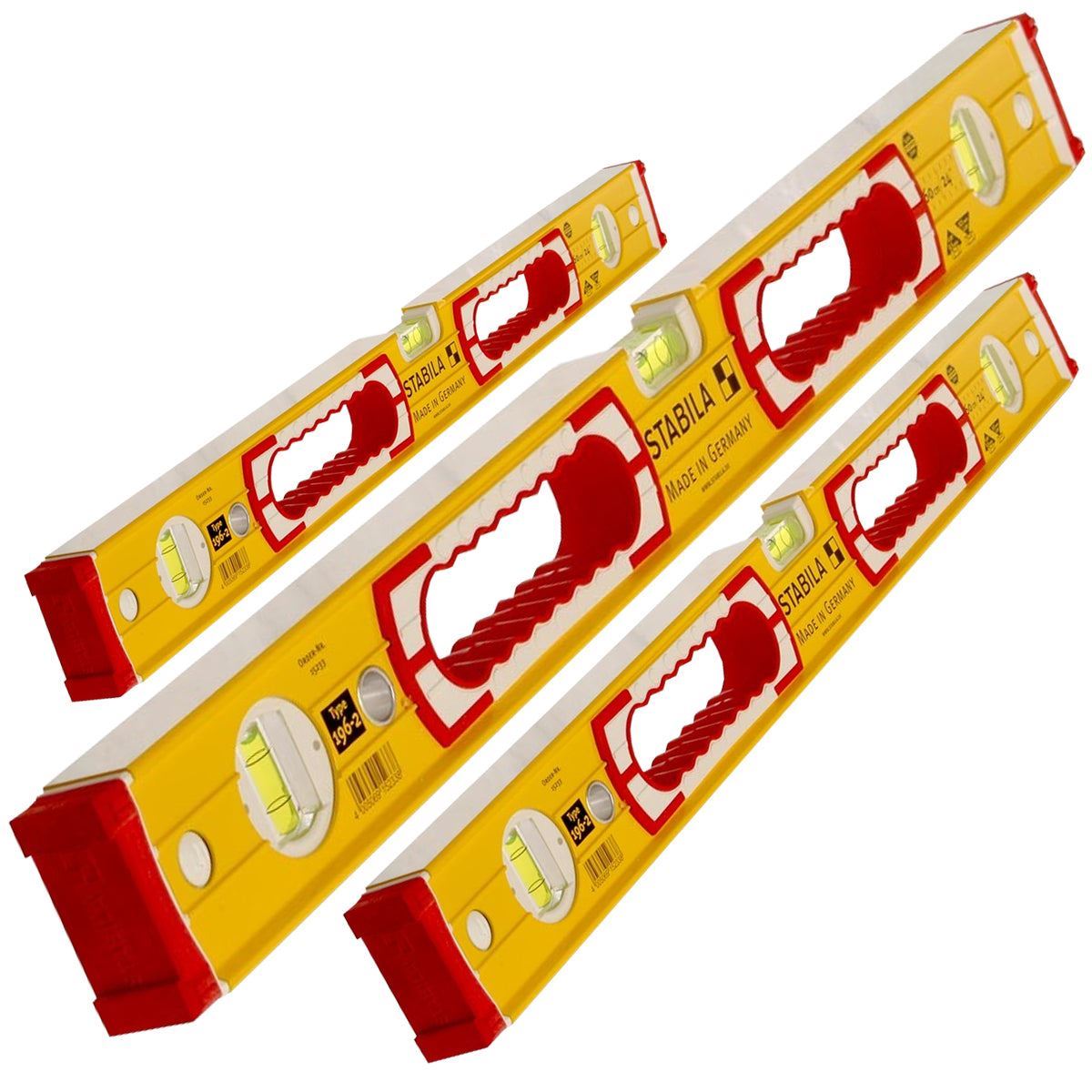

The Stabila 196-2 levels are made from extra strong, light metal.
They have rectangular profile and an extra strong ribbed frame, with rubberised hand holds.
Their removable end caps incorporate anti-slip wall pads, which allow the level to be held firmly against a wall with one hand without slipping.
Each level has 2 vertical vials and 1 horizontal vial.
The levels have 2 milled measuring surfaces, except for the 180cm levels, which do not have any milled surfaces.
Measurement accuracy: in normal position 0.029° = 0.5 mm/m, overhead measurement 0.029° = 0.5 mm/m.
Stabila STB1962180:
The Stabila 196-2 levels are made from extra strong, light metal.
They have rectangular profile and an extra strong ribbed frame, with rubberised hand holds.
Their removable end caps incorporate anti-slip wall pads, which allow the level to be held firmly against a wall with one hand without slipping.
Each level has 2 vertical vials and 1 horizontal vial.
The levels have 2 milled measuring surfaces, except for the 180cm levels, which do not have any milled surfaces.
Measurement accuracy: in normal position 0.029° = 0.5 mm/m, overhead measurement 0.029° = 0.5 mm/m.
Stabila STB81SREM:
The Stabila 81S Torpedo Level has a strong cast aluminium T-profile making it easy to hold.
The particularly slender trapezoidal bevelled shape makes it suitable for working in cramped spaces.
The die-cast frame has 1 milled measuring face and protecting noses to prevent damage to milled face.
Additional magnets mounted in the milled measuring surface hold this level securely on scaffolding or beams.
Product Specification:
Stabila STB196260:
Length: 600mm (24 in)
Stabila STB1962120:
Length: 1200mm (48 in)
Stabila STB1962180:
Length: 1800mm (72 in)
Stabila STB81SREM:
2 Vials: 1 plumb & 1 horizontal
Accuracy: Normal Position: 0.029°=0.5mm/m
Accuracy: Overhead Position: 0.043°=0.75mm/m
